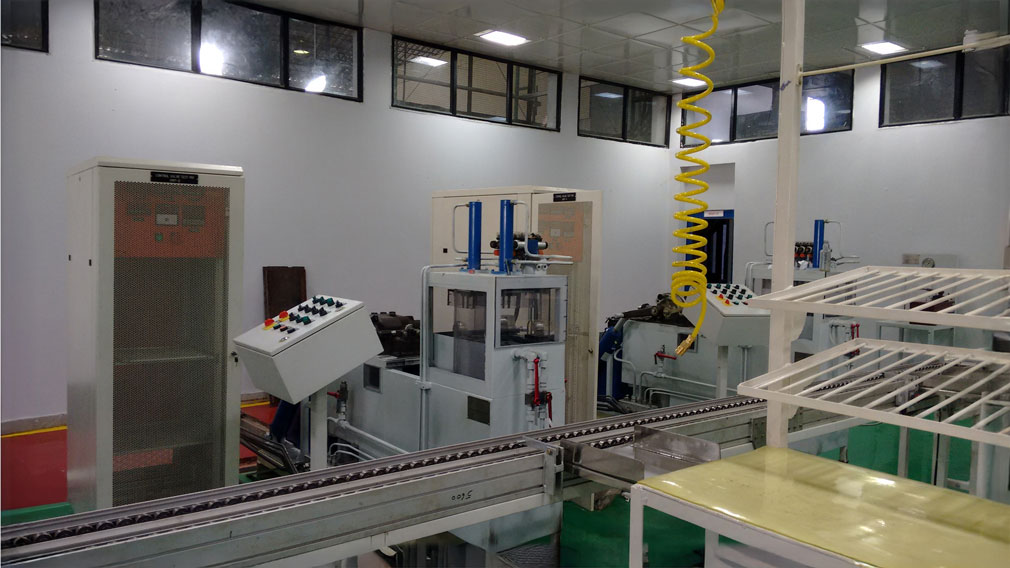

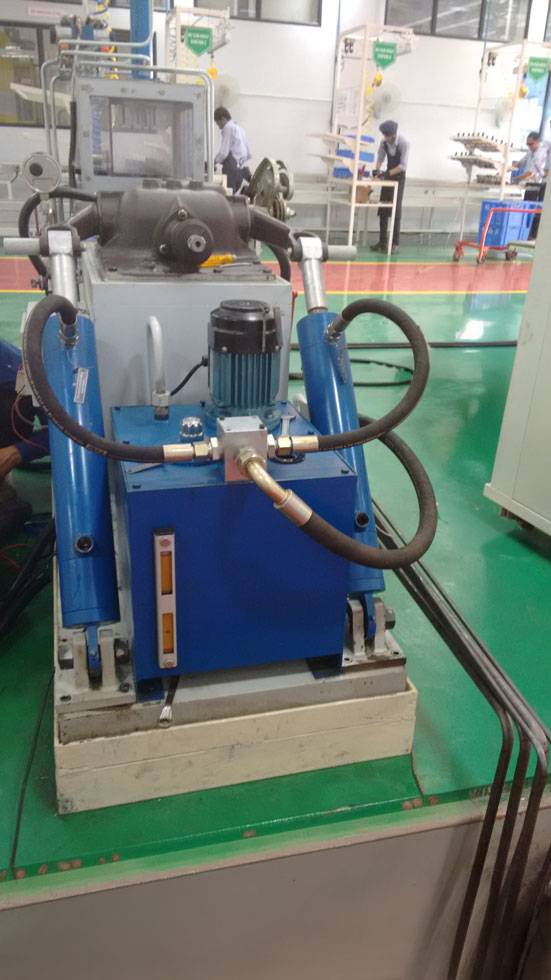

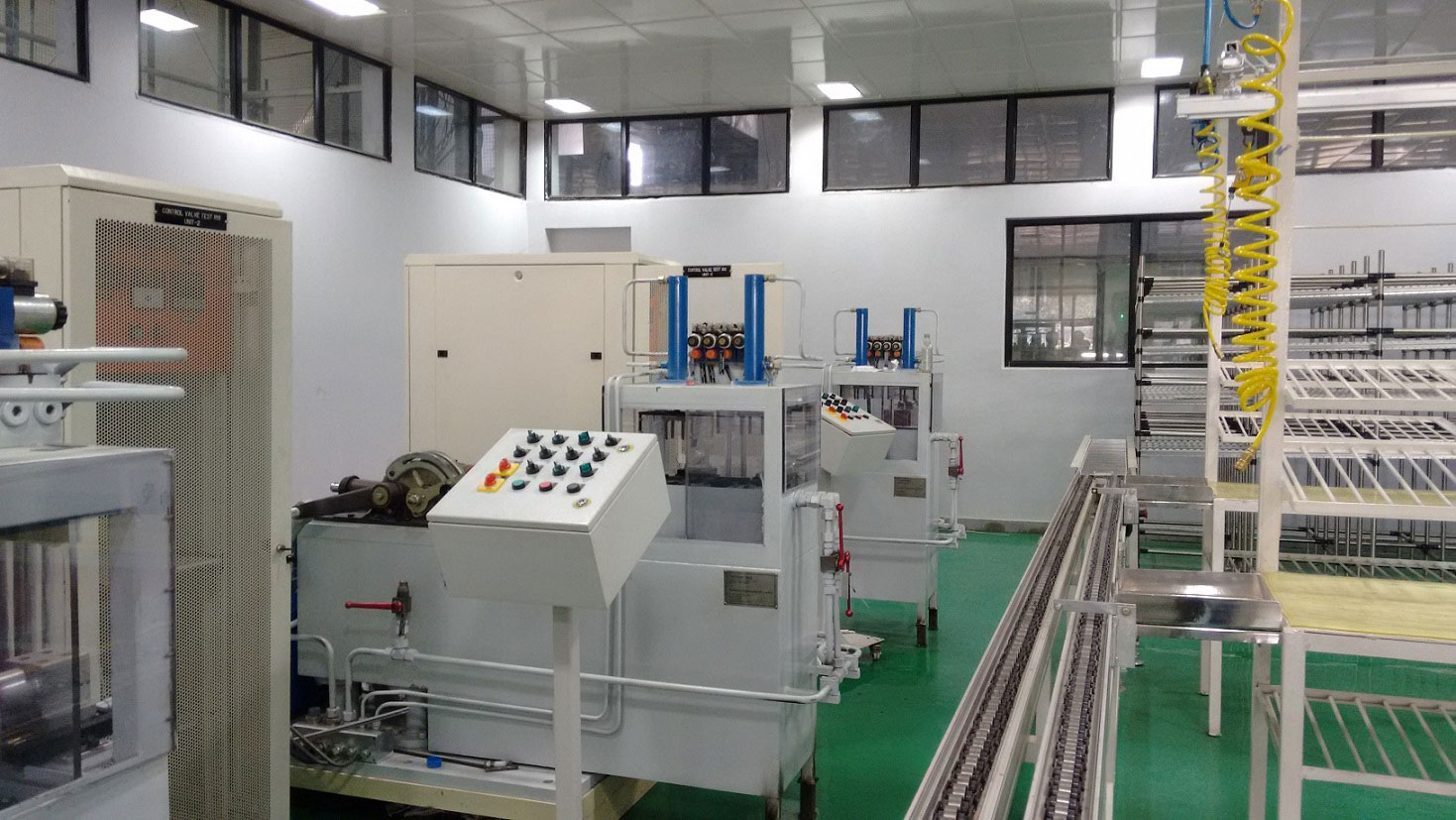

Control Valve Test Rig (Automobile)

About

The Control Valve Test Rig is a specialized, electro-hydraulic test system that simulates real-world conditions—such as lifting, lowering, and holding loads—to verify the performance of hydraulic control valves used in machinery like tractors and construction equipment. By precisely controlling flow and pressure, it identifies issues like leakage, sluggish response, or poor holding power. The rig’s built-in data acquisition software automatically records critical measurements, generates performance reports, and ensures valves meet stringent safety and reliability standards before entering service.
No Image

Image Gallery

Technical Details

Category Specification
Hydraulic System Main Reservoir Capacity: 500 Liters
Clamping Reservoir Capacity: 300 Liters
Hydraulic Oil: VG-46 or equivalent
Main Pump Flow: ~46 LPM @ up to 250 bar
Clamp/Actuator Flow: ~5 LPM (clamp), ~10 LPM (actuator), up to 150 bar
Filtration: 5 & 10 micron inline, 25 micron return; all with clogging indicators
Cooling System 12 kW air radiator; 40 LPM circulation pump
Cooling Pump Motor: 1 HP
Power & Drive Main Pump Motor: 20 HP, 2880 RPM, ABB (VFD controlled)
Clamp Motor: 7.5 HP, ABB
Power Supply: 3-phase 415 V ±5%, 50 Hz; Aux 220 V ±5%
Measurement & Instrumentation Pressure Gauges: 0–160 / 250 / 280 bar (4" dial)
Pressure Transmitters: 0–250 bar, 4–20 mA, <1 bar resolution
Flow Meter: 6–60 LPM, ±1 LPM accuracy
Temperature Sensors (RTD): 0–150°C, 4–20 mA
Load Cell (In Actuator): 0–3000 kg capacity
LVDT Displacement Sensor: 0–450 mm stroke
DAQ System & Controls Platform: National Instruments PCI DAQ
Software Interface: Windows-based .exe with touchscreen
Display: 21.5” TFT Touchscreen + additional DROs
Data Output: Live charts, test logs, pass/fail logic
Test Bed & Fixtures Construction: Heavy-duty cast iron base
Valve Mounting: Manifolds for CRE, Xm, 58 Hp, etc.
Clamping System: Hydraulic swing clamps (~22.6 kN @ 200 bar)
QDC Connections: Quick-disconnect couplings
Safety Covers: Transparent acrylic shields
Scavenge/Return Pump: ~24 LPM return line capacity
Safety Features Emergency Stop: Manual power cut-off switch
Interlocks: Low oil level, motor direction, suction valve open
Electrical Earthing: Static discharge & grounding
Filter Alarms Visual and electrical indicators for clogging
The Control Valve Test Rig is a one-stop solution for ensuring that hydraulic control valves consistently meet or exceed their intended performance criteria. By reproducing real-world operating conditions—lifts, holds, flows, and transitions—it provides clear, data-backed insights into how valves behave under the stresses of actual usage. Whether for end-of-line checks, R&D refinement, or post-repair certification, this rig delivers the repeatability, safety, and precision modern industry demands.
If you need a tailored datasheet, marketing brochure, or more specialized integration with your manufacturing process, please reach out. This rig can be custom-configured to meet unique testing requirements, ensuring that every hydraulic valve you produce or service performs flawlessly, reliably, and safely in the real world.

Key Features

  • Ensures Quality & Reliability
  • Supports R&D & Engineering
  • Enhances Service & Maintenance
  • Increases Safety
  • Lowers Long-Term Costs

Enquire Now

and we will get back to you.

Details

  1. INTRODUCTION
  The Control Valve Test Rig is an industrial-grade, electro-hydraulic system designed to analyze the performance and reliability of hydraulic control valves used in off-highway vehicles, agricultural tractors, construction machinery, and various industrial equipment. Acting as a “real-world simulator,” it applies controlled pressure and flow conditions to a valve under test, measuring the valve’s response with high precision. Modern agriculture, construction, and heavy machinery rely on hydraulic valves to direct pressurized oil, enabling tasks like lifting, lowering, clamping, or holding loads in position. If these valves operate incorrectly or degrade over time, the entire machine can fail. The Control Valve Test Rig prevents such scenarios by identifying defects early—through rigorous, repeatable test sequences and data capture.

  2. PURPOSE & BENEFITS
    1. Ensures Quality & Reliability
      -  Detects leaks, sluggish actuation, or spool misalignments before equipment deployment.
      -  Reduces warranty claims by verifying valves meet design specifications.
    2.  Supports R&D & Engineering
      -  Ideal for prototype testing, competitive benchmarking, and new design validations.
      -  Gathers rich data for refining hydraulic performance.
    3.  Enhances Service & Maintenance
      -  Confirms post-repair integrity by measuring correct spool operation, flow characteristics, and load-holding capability.
      -  Enables quick root-cause analysis in the field of defective or worn valves.
    4.  Increases Safety
      -  Minimizes the risk of valve-induced failures that can lead to unexpected load drops or machine instability.
      -  Offers built-in safety features such as emergency stop, interlocks, and protective covers.
    5.  Lowers Long-Term Costs
      -  Early detection of problems prevents catastrophic failures and unplanned downtime.
      -  Fosters efficient production-line testing and helps maintain consistent quality.

  3. DETAILED TEST CAPABILITIES
  The rig performs a wide spectrum of functional and diagnostic tests, recreating real scenarios encountered by valves in heavy machinery:
    1.  Lifting & Lowering Function
      -  What it does: Simulates actuator movement under pressure, checking how the valve directs fluid for upward or downward motion.
      -  Why it matters: Confirms valve can handle expected loads without hesitation or overshoot.

    2.  Lifting Speed Test
      -  What it does: Times the rise of a hydraulic cylinder (or a load) under a specified flow rate.
      -  Why it matters: Ensures consistent motion profiles and checks for possible internal flow restrictions.

    3.  Leakage Test (180 bar Holding)
      -  What it does: Pressurizes the valve to around 180 bar and monitors internal leakage across seals, spools, or plugs.
      -  Why it matters: Identifies inefficiencies and safety risks—particularly crucial for load-holding valves.

    4.  Self-Raising Check
      -  What it does: Evaluates if the valve inadvertently lifts the actuator with minimal or idle flow input.
      -  Why it matters: Detects spool misalignment or design flaws that cause uncommanded motion.

    5.  Dead Band Measurement
      -  What it does: Identifies how much the valve spool must move from neutral before any flow output occurs.
      -  Why it matters: Excessive dead band leads to poor operational control and operator dissatisfaction.

    6.  Spool Reversal & Inching Tests
      -  What they do: Observe how smoothly and precisely the valve changes direction or provides micro-adjustments under small spool travel.
      -  Why they matter: Validate the valve’s responsiveness in operations requiring frequent directional changes or fine control.

    7.  Instant Holding & Neutral Checks
      -  What they do: Force the system from motion into a neutral/hold state to see how quickly the valve stabilizes the load.
      -  Why they matter: Prevents drifting, bouncing, or unsteady holding—critical in safety-related lifting tasks.

  4. TECHNICAL SPECIFICATIONS
  Below is a consolidated table of the key technical parameters:


Category Specification
Hydraulic System Main Reservoir Capacity: 500 Liters
Clamping Reservoir Capacity: 300 Liters
Hydraulic Oil: VG-46 or equivalent
Main Pump Flow: ~46 LPM @ up to 250 bar
Clamp/Actuator Flow: ~5 LPM (clamp), ~10 LPM (actuator), up to 150 bar
Filtration: 5 & 10 micron inline, 25 micron return; all with clogging indicators
Cooling System 12 kW air radiator; 40 LPM circulation pump
Cooling Pump Motor: 1 HP
Power & Drive Main Pump Motor: 20 HP, 2880 RPM, ABB (VFD controlled)
Clamp Motor: 7.5 HP, ABB
Power Supply: 3-phase 415 V ±5%, 50 Hz; Aux 220 V ±5%
Measurement & Instrumentation Pressure Gauges: 0–160 / 250 / 280 bar (4" dial)
Pressure Transmitters: 0–250 bar, 4–20 mA, <1 bar resolution
Flow Meter: 6–60 LPM, ±1 LPM accuracy
Temperature Sensors (RTD): 0–150°C, 4–20 mA
Load Cell (In Actuator): 0–3000 kg capacity
LVDT Displacement Sensor: 0–450 mm stroke
DAQ System & Controls Platform: National Instruments PCI DAQ
Software Interface: Windows-based .exe with touchscreen
Display: 21.5” TFT Touchscreen + additional DROs
Data Output: Live charts, test logs, pass/fail logic
Test Bed & Fixtures Construction: Heavy-duty cast iron base
Valve Mounting: Manifolds for CRE, Xm, 58 Hp, etc.
Clamping System: Hydraulic swing clamps (~22.6 kN @ 200 bar)
QDC Connections: Quick-disconnect couplings
Safety Covers: Transparent acrylic shields
Scavenge/Return Pump: ~24 LPM return line capacity
Safety Features Emergency Stop: Manual power cut-off switch
Interlocks: Low oil level, motor direction, suction valve open
Electrical Earthing: Static discharge & grounding
Filter Alarms Visual and electrical indicators for clogging
5. DETAILED EXPLANATION OF OPERATION 5.1 Hydraulic Power System • Pump & Motor Assembly: A gear pump driven by a 20 HP motor delivers high-pressure oil. Flow and pressure are regulated using a variable frequency drive (VFD). • Reservoirs: Two tanks (500 L for main circuit, 300 L for clamp/actuator circuit) ensure sufficient oil volume and heat dissipation capacity. • Filtration & Cooling: Multiple filters (5, 10, 25 micron) keep oil clean, while a 12 kW radiator plus circulating pump maintains stable temperature—preventing damage to the test item or the rig. 5.2 Test Bed & Clamping Arrangement • Heavy-Duty Cast Iron Base: Minimizes vibrations and holds the valve under test (UUT) firmly in place. • Swing Clamps & Actuators: Provide realistic mechanical loading and secure different valve types. • Manifolds & QDCs: Allow quick swap between various valves (e.g., CRE, Xm, 58 Hp) without excessive downtime. 5.3 Data Acquisition & Control • Touchscreen Interface: Operates all test parameters—pressure setpoints, flow rates, and test duration. • Real-Time Sensors: Pressure transmitters, flow meter, RTD, load cell, and LVDT feed continuous data to the control system. • Automated Test Sequences: Custom software runs the test steps automatically (e.g., ramping flow, holding pressure) and flags pass/fail conditions. 5.4 Operational Workflow 1. Mount & Connect: Secure the valve using supplied fixtures, attach hoses, and check safety covers. 2. Configure Test: Choose test type (e.g., Lifting Speed, Leakage Check), set the parameters, and press “Start.” 3. Execution & Monitoring: The rig autonomously regulates pressure, flow, and actuator load while tracking sensor data in real-time. 4. Data Logging & Reporting: Results (pressure curves, flow charts, pass/fail outcomes) are displayed, stored, and can be exported in digital format or printed. 6. CONTROL & AUTOMATION FEATURES • User-Friendly Software: Runs on Windows OS, providing easy navigation and test customization. • Automated Reporting: Generates time-stamped PDF/CSV logs with operator details, valve serial numbers, and outcome. • Safety Interlocks: Software-based checks prevent starting a test if critical conditions (oil level, filter status) are out of range. • Additional Peripherals: Keyboard, mouse, or optional barcode scanner for test item identification. 7. STRUCTURAL & MECHANICAL FEATURES 1. Rugged Frame: Engineered to withstand continuous, high-pressure cycles. 2. Low Vibration Design: Motors and pumps are mounted on anti-vibration pads to improve measurement accuracy and rig longevity. 3. Modular Construction: Key assemblies (power pack, test bed, cooling unit) can be serviced or upgraded independently. 8. SAFETY, RELIABILITY & MAINTENANCE 1. Emergency Stop: Instantly shuts off power to motors and stops fluid flow. 2. Filter Clogging Indicators: Alerts operators if filters approach capacity to avoid damaged or overheated oil. 3. Oil Level & Temperature Alarms: Protects the pump and prevents fluid breakdown. 4. Routine Maintenance: Scheduled checks for filter replacement, oil flushing every 6 months, and verifying sensor calibration. 9. SUPPLIED ITEMS • Complete Rig Assembly: Hydraulic power pack, test bed, clamps, actuators, and return system. • All Hoses & Fittings: High-pressure hoses, quick-disconnect couplings, and safety lines. • Touchscreen Panel: 21.5” TFT with integrated Data Acquisition & Control System. • Calibration Certificates: For flow meter, pressure gauges, load cell, and LVDT sensors. • Documentation: - User & Maintenance Manuals - Electrical & Hydraulic Schematic Diagrams - Software Operating Guide • On-Site Support: Installation, commissioning, and operator training. 10. IDEAL USERS
User / Industry Application
Tractor & Equipment OEMsEnd-of-line valve checks and performance assurance
Valve ManufacturersBatch testing for quality control and design validation
Repair & Service CentersPost-repair certification—ensuring valves meet specs
R&D LaboratoriesPrototype testing to refine valve design and performance
QA / Testing DepartmentsStatistical process control and standards compliance
11. OPTIONAL FEATURES & CUSTOMIZATIONS 1. Barcode/QR Scanner Integration - Automates part tracking and test recordkeeping. 2. Cloud Data Storage - Centralizes logs for large-scale production lines or multi-site collaborations. 3. Advanced Actuators - High-load or extended-stroke actuators for specialized valve types. 4. CE Compliance - Enhanced safety instrumentation or documentation for international markets. 5. Extended DAQ Channels - Incorporate additional sensors (vibration, acoustic monitoring) to evaluate valve noise or resonance. 6. SCADA Connectivity - Hooks the rig into a plant-wide supervisory control system for real-time monitoring and centralized command. 12. SUPPORT & SERVICES • Pre-Delivery Inspection: Factory test runs to confirm accuracy and repeatability. • Installation & Commissioning: On-site assistance for rig setup and calibration. • Technical Training: Comprehensive operator training on test procedures and routine maintenance. • Spare Parts & AMC: Annual Maintenance Contracts and genuine spare parts supply. • Remote Diagnostics: Virtual troubleshooting sessions to minimize downtime. 13. CONCLUSION The Control Valve Test Rig is a one-stop solution for ensuring that hydraulic control valves consistently meet or exceed their intended performance criteria. By reproducing real-world operating conditions—lifts, holds, flows, and transitions—it provides clear, data-backed insights into how valves behave under the stresses of actual usage. Whether for end-of-line checks, R&D refinement, or post-repair certification, this rig delivers the repeatability, safety, and precision modern industry demands. If you need a tailored datasheet, marketing brochure, or more specialized integration with your manufacturing process, please reach out. This rig can be custom-configured to meet unique testing requirements, ensuring that every hydraulic valve you produce or service performs flawlessly, reliably, and safely in the real world.
