• Hydraulic Fluid: VG 46 ISO VG 46 @ 40 °C • Temperature Control: 45–55 °C (±1 °C) via PID-regulated heater with radiator cooling • Maximum Pressure: 200 bar • Flow Rate Range: CRE: 5–16 LPM; XM: 7–24 LPM (±1 LPM) • Load Capacity: CRE: 1000 kg lift / XM: 1500 kg lift; max 2000 kg • Stroke: 350 mm • Cycle Time: ~5 minutes • Throughput: Up to 100 assemblies/day • DAQ Resolution: 24-bit ADC, up to 1 MS/s per channel • Software: LabVIEW or custom NI-DAQmx; SQL database back-ends

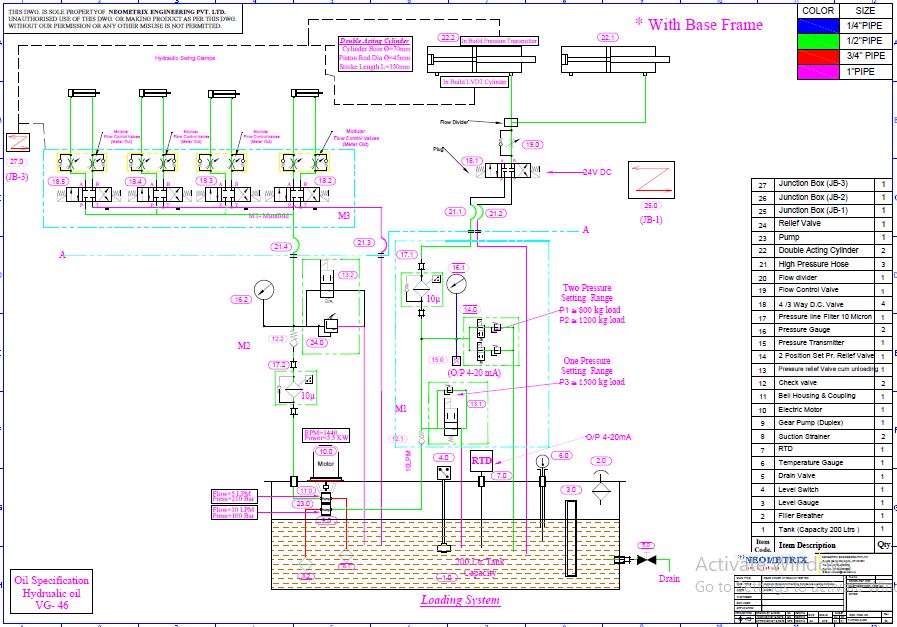

Design 1

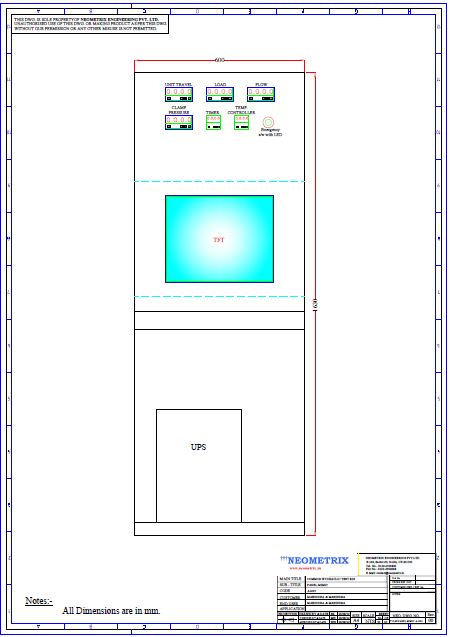

Design 2
and we will get back to you.
Thank You!
Your enquiry has been received, We will get back to you shortly.

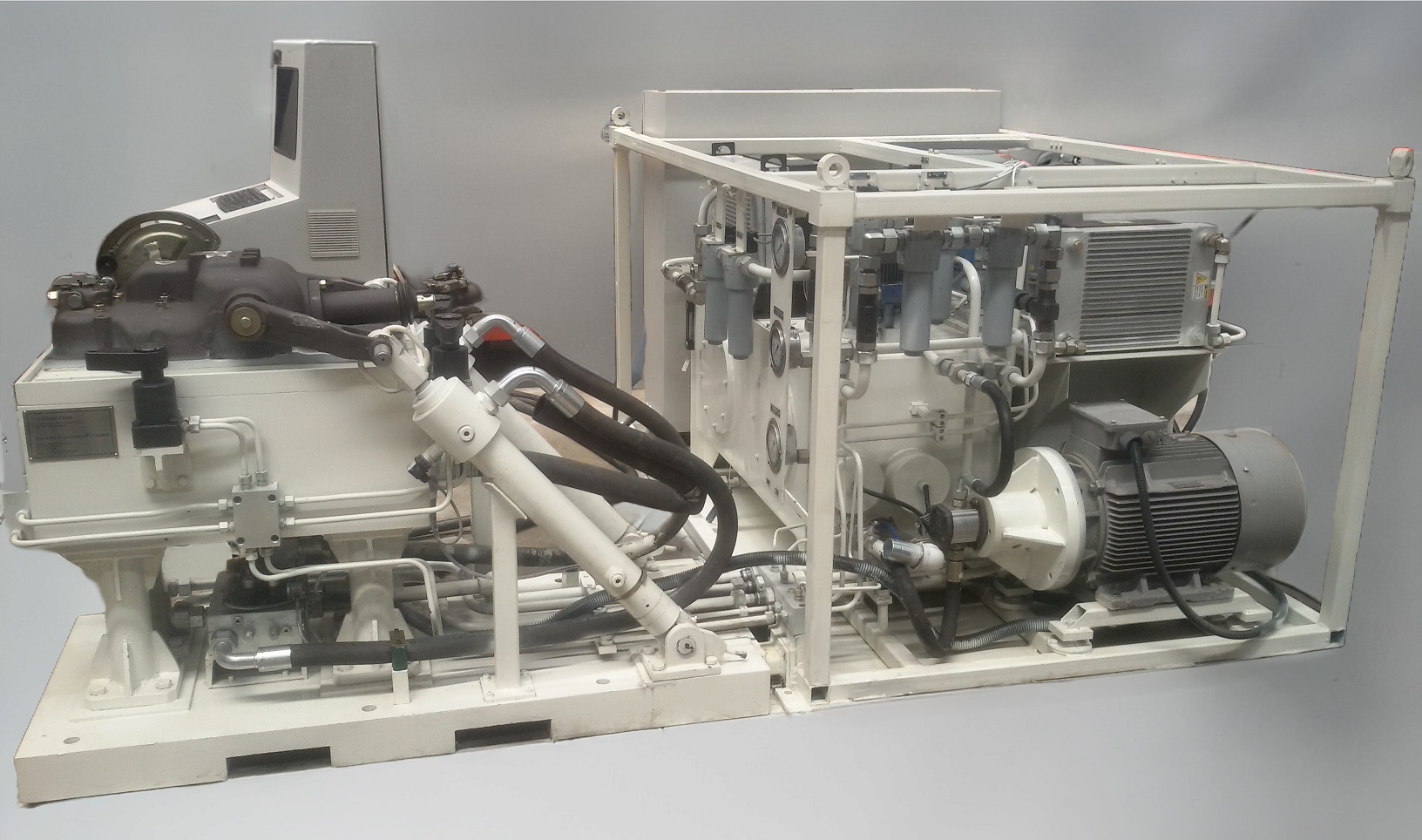

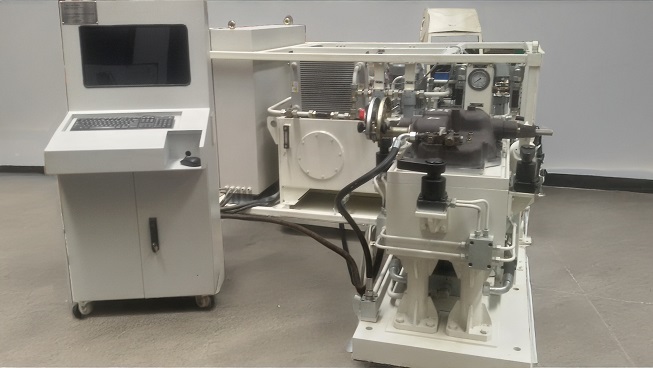

Introduction Hydraulic test rigs are indispensable tools in industries ranging from automotive to aerospace, providing a controlled environment to verify the performance, durability, and safety of fluid power systems before they enter service. By simulating real-world operating conditions—pressure, flow, temperature, and load—test rigs uncover potential design flaws and manufacturing defects early, reducing costly recalls and downtime. Modern rigs integrate PC-based data acquisition (DAQ) and programmable control to automate complex test sequences, collect high-resolution data, and generate comprehensive reports without manual intervention. Application • End-of-Line Quality Control: On production lines, hydraulic test rigs perform critical final inspections of valves, pumps, and actuators. Automated testing ensures each component meets OEM specifications for flow rate, relief pressure, and leakage, and can reduce mounting and cycle times by over 90% with quick-change fixtures. • R&D and Prototype Validation: Engineering teams leverage test rigs to characterize new designs under variable conditions, assessing performance envelopes, fatigue life, and response times. Precise control over test parameters allows iterative optimization of valve geometries, material selections, and control algorithms before field deployment. • Maintenance, Calibration & Service Centers: Service facilities use rigs to recalibrate relief valves and check for internal leakage in returned components. Digital LVDTs and load cells, paired with logged data, support preventive maintenance programs that can halve unscheduled downtime by detecting wear trends early. • Supplier Qualification & Incoming Inspection: Rigs provide objective, traceable evidence that purchased hydraulic assemblies conform to contractual performance criteria, streamlining supplier audits and reducing warranty claims through stringent acceptance testing. Key Features • Advanced DAQ & Control Platform: Utilizing PXI or CompactDAQ hardware, rigs achieve deterministic control loop rates and modular I/O for synchronized measurement of pressure, flow, displacement, and temperature. LabVIEW or NI-DAQmx software orchestrates test sequences, real-time visualization, and automated report generation. • Robust Hydraulic Power Units: Dual power packs—one high-flow (e.g., 40 LPM at 200 bar) for main testing and one low-flow for clamp actuation—ensure rapid cycle times while maintaining precise pressure regulation. High-efficiency pumps and servo valves minimize energy consumption and heat generation. • Precision Instrumentation: LVDTs measure piston displacement with micron-level resolution, while load cells capture force up to several kilonewtons. Optional digital dial gauges provide quick sanity checks during maintenance. All sensors feed directly into the DAQ system for synchronized logging. • Ergonomic & Safe Design: Two-hand safety pushbuttons, light curtains or guards, emergency stops, and interlocked access doors protect operators. Fixtures are optimized for minimal handling effort and rapid changeover, reducing ergonomic strain and cycle times. Operation Description 1. Warm-Up & Calibration: The system’s oil heater raises fluid temperature to the target (45–55 °C) to standardize viscosity. Automatic calibration routines verify sensor zero points and leak-tightness. 2. Loading & Fixturing: Operators place the hydraulic assembly into a custom fixture. Quick-release clamps engage via a low-pressure pack, while ergonomic levers secure the part in seconds. 3. Test Program Selection: A touchscreen HMI presents model-specific profiles (CRE vs. XM), allowing input of batch and serial numbers. 4. Main Flow Test: The rig ramps to the specified flow rate (e.g., 16 LPM ± 1 LPM) at 200 bar. Real-time monitoring detects flow deviations and pressure fluctuations, pausing the test if unsafe limits are approached. 5. Relief Valve Characterization: By slowly increasing pressure via a PC-controlled valve, the system records blow-off and crack pressures (target range: 155–165 bar) with ±0.5 bar accuracy. 6. Lift & Response Time: Actuating the lift arm to a fixed height (600 mm), the DAQ timestamps the stroke completion, ensuring lift times fall within 2.3–2.6 s. 7. Leakage Assessment: Holding pressure and position constant, the LVDT tracks fluid escape over a three-minute dwell; leakage rates must remain under 1.2 mm/min to pass. 8. Data Logging & Reporting: At cycle end, all parameters—flow profiles, pressure curves, displacement and force traces—are automatically stored in a SQL database and compiled into PDF reports for quality archives. Technical Specifications • Hydraulic Fluid: VG 46 ISO VG 46 @ 40 °C • Temperature Control: 45–55 °C (±1 °C) via PID-regulated heater with radiator cooling • Maximum Pressure: 200 bar • Flow Rate Range: CRE: 5–16 LPM; XM: 7–24 LPM (±1 LPM) • Load Capacity: CRE: 1000 kg lift / XM: 1500 kg lift; max 2000 kg • Stroke: 350 mm • Cycle Time: ~5 minutes • Throughput: Up to 100 assemblies/day • DAQ Resolution: 24-bit ADC, up to 1 MS/s per channel • Software: LabVIEW or custom NI-DAQmx; SQL database back-end Scope of Supply • Hydraulic Units: Two power packs (200 bar/40 LPM & 100 bar/10 LPM), reservoir with filtration (NAS 9), heaters, pumps, servo valves, and accumulators. • Instrumentation: LVDTs, strain gauge load cells, pressure transducers (±0.1% FS), flow meters, thermocouples, and optional dial gauges. • Control & Electrical: PXI or CompactDAQ chassis, NI controllers, VFDs, PLC with safety relays, touchscreen HMI, UPS, and interlock circuits. • Mechanical & Fixtures: Rigid steel bed, quick-release hydraulic clamps, lift arms, QRC fittings, sealing plugs, and ergonomic loading aids. • Safety & Guards: Light curtains, safety doors with interlocks, emergency stops, two-hand controls, and warning lights. Spare Parts & Bill of Materials Standardized components ensure global serviceability and reduce lead times: • Hydraulics: Rexroth or Parker pumps and valves, Hydac filters, Wika transducers, Maxel hoses. • Instrumentation: HBM or Omega LVDTs, Tektronix or PCB piezo pressure sensors, Kyowa load cells. • Electrical: Phoenix Contact terminals, Siemens contactors, Eaton safety relays, Allen-Bradley PLC modules. A detailed BOM with part numbers, vendor contacts, and lead-time estimates accompanies delivery. Safety, Ergonomics & TPM • Integrated Safety Systems: Emergency shut-off circuits, two-hand actuated clamp controls, light barriers, and safety interlocks prevent unintended access during pressurization. • Ergonomic Design: Fixtures positioned at waist height, quick-swap clamps, and lightweight QRC hoses reduce operator fatigue. • TPM Aids: Color-coded hydraulic lines, arrowed fittings, labeled sensor junctions, sequential LEDs, and visual maintenance checklists support autonomous maintenance and minimize downtime. Reliability & Maintainability Preventive maintenance protocols focus on fluid cleanliness and contamination control—key drivers of hydraulic system failures. Regular filter changes, oil analysis, and sensor calibrations can extend rig availability above 95%. Modular design allows swap-out of power packs, DAQ modules, and cylinders in under one hour, ensuring rapid recovery from faults. A warranty program with 24 hr response for critical issues and quarterly on-site inspections further safeguards uptime. Design Approval & Trials Engineering deliverables include: • Floor plans and layout drawings (DWG/DXF) • Piping and instrumentation diagrams (P&ID), including hydraulic and pneumatic schematics • Electrical schematics, control panel layouts, and PLC ladder logic documentation • Software sequence editor files and test scripts • FAT (Factory Acceptance Test) reports covering 50 idle cycles, five pilot assemblies, and a 1000-unit production validation run Completion of FAT and submission of 'Design Approval Prints' within 15 days of purchase order ensures alignment with customer specifications. Documentation & Environmental Compliance Delivered documentation in both hard-copy (×3) and soft-copy formats includes the full BOM with vendor contacts, PLC/back-up files, detailed operation & maintenance manuals, and calibration certificates. Compliance with ISO 9001:2015 and CE directives is certified, and all hydraulic fluids and materials adhere to RoHS and REACH regulations. Noise and energy efficiency measures—such as low-noise pumps and PID-controlled heaters—minimize environmental impact, with waste oil handling procedures conforming to local environmental standards. Conclusion This fully integrated hydraulic test rig marries robust mechanical engineering with state-of-the-art DAQ and control, delivering rapid, repeatable, and traceable performance validation. Its modular architecture, comprehensive safety features, and standardized components ensure high uptime and ease of maintenance, while extensive documentation and environmental certifications support global deployment. As both a production-line workhorse and an R&D testbed, it empowers manufacturers and service centers to uphold the highest standards of hydraulic component quality and reliability.
