1. System Purpose & Operational Context
At elevations around 5000 m—where barometric pressure is approximately half that at sea level—the partial pressure of oxygen drops enough to induce hypobaric hypoxia, leading to acute mountain sickness, impaired cognition, and cardiovascular strain. The Neometrix Oxygen Enrichment Facility (OEF) addresses these challenges by raising indoor oxygen concentration from 21% (ambient) to 27–30%, simulating a much lower equivalent altitude. Deployed in research outposts, military encampments, medical tents, and acclimatization shelters, the OEF ensures personnel maintain optimal physiological function during prolonged high-altitude exposure.

2. Core Technology: PSA Oxygen Generation

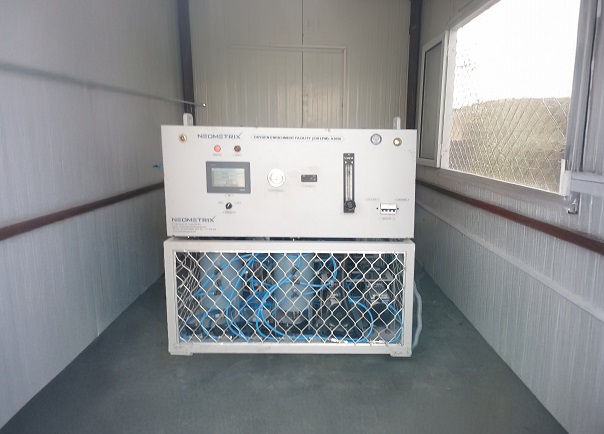

 • Dual-Column PSA Towers: Two parallel adsorption columns packed with lithium-exchanged zeolite alternately adsorb nitrogen and regenerate, providing a continuous oxygen stream.
 • Molecular Sieve Design: High-performance sieves deliver >93% purity oxygen in the 80 LPM model, while 40% purity in the 130 LPM and 230 LPM models is blended into room air for energy efficiency.

3. Modular Variants & Performance Metrics






Specification

80 LPM Model

130 LPM Model

230 LPM Model







O₂ Purity

93% ±2%

40% ±2%

40% ±2%




Max Flow

80 L/min at 5000 m

130 L/min

230 L/min




Power Consumption

~15 kW

<9 kW

<18 kW




Weight

600 kg

150 kg

300 kg




Dimensions

2.5 × 2.0 × 1.0 m

<1 m³

1.6 × 1.0 × 1.0 m

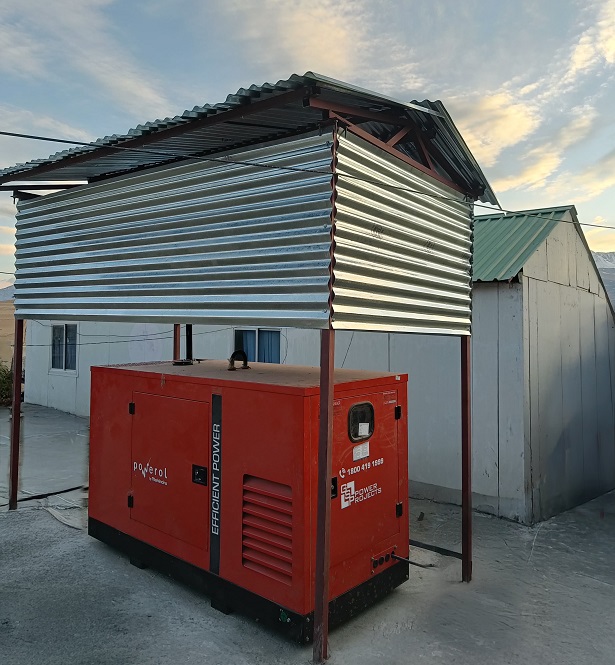

Backup Generator

30 kVA Diesel

20 kVA Diesel

30 kVA Diesel




Runtime

12–14 hr/day continuous




4. Automated Environmental Control

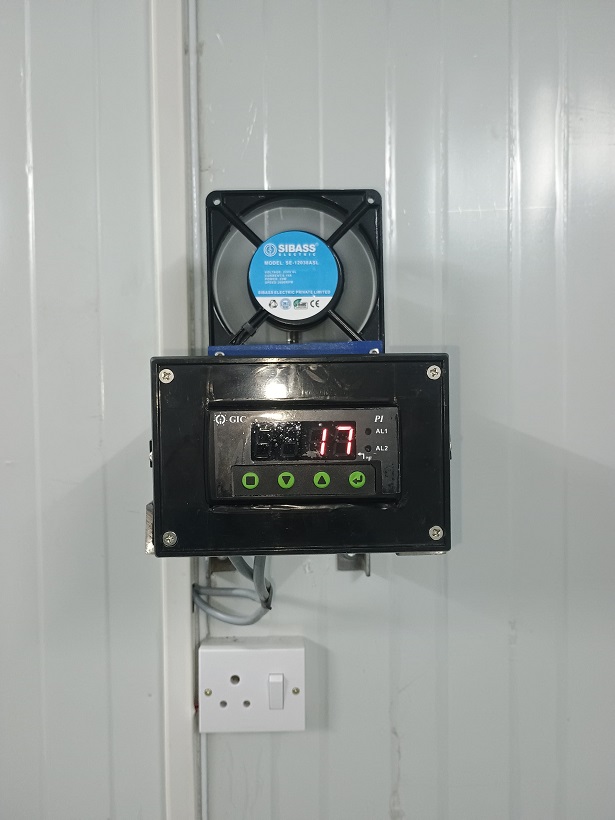

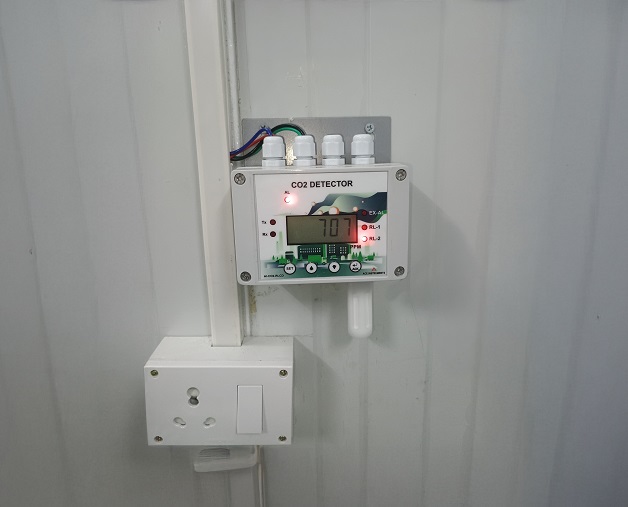

 • PLC-Based Closed-Loop Logic: Starts concentrators when O2 <27% and stops at 35%; triggers CO2 exhaust fans for 60 seconds when CO2 >3000 ppm.
 • User-Configurable Setpoints: Operators can adjust thresholds, schedules, and view historical logs via HMI.
 • Continuous Real-Time Monitoring: O2 and CO2 levels are updated every 2 seconds for responsive control.
 • Failsafe Logic Integration: In case of sensor failure, the system enters a predefined safe mode with alert triggers.
 • Data Logging: 24/7 environmental data archiving with USB export or cloud sync.
 • Multi-Zone Control (Optional): Manage oxygen levels across different rooms independently.

5. Distribution & Patient Interfaces

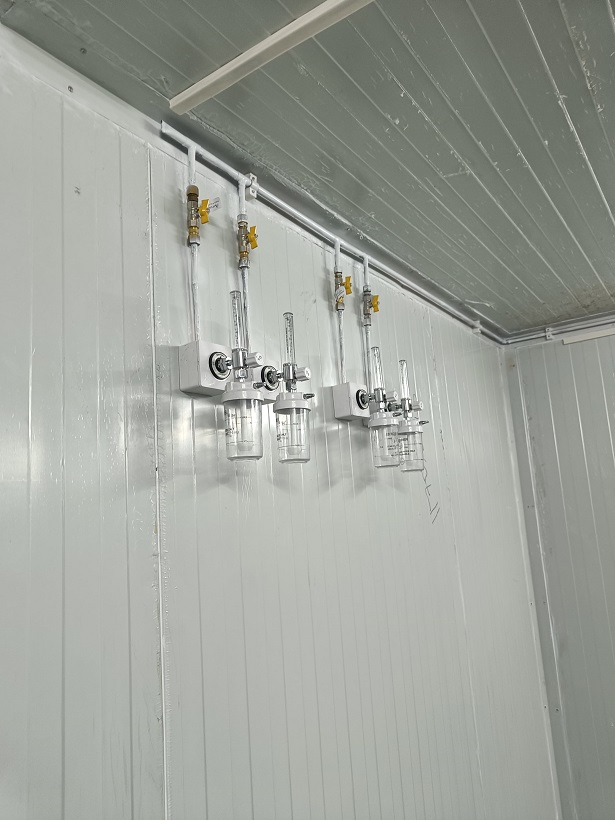

 • High-Pressure Oxygen Piping: Delivers gas at 4 bar through copper mains and PU tubing to wall nozzles mounted at 1 m height for uniform mixing.
 • Nasal Cannula Outlets: Dedicated ports for direct therapy, especially in the 80 LPM model.
 • Anti-Backflow Design: Check valves on all outlets to prevent contamination.

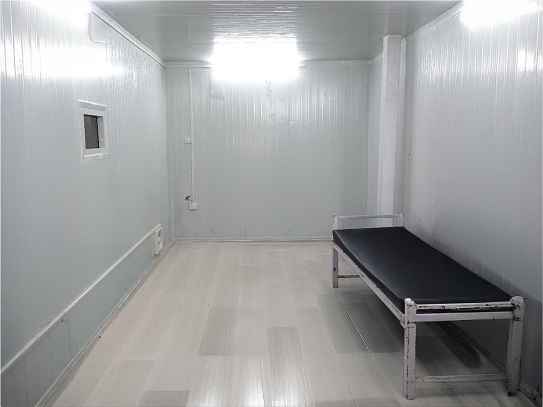

 • Custom Nozzle Placement: Can be configured for bunk beds or central flow diffusion.
 • Optional Humidifiers: Attachments available for comfort during continuous oxygen therapy.
 • Color-Coded Piping & Quick Couplers: For safe and easy operation.

6. Safety, Alarms & Redundancy
 • Overpressure Relief Valves (5 bar)
 • Emergency Stop Buttons
 • Redundant Sensors & Self-Diagnostics
 • MCBs & Surge Protection
 • Alarm Prioritization (Critical/Warning/Advisory)
 • Automated Purge Cycle during emergency shutdown
 • Compatibility with Fire Detection Systems
 • Low Voltage Disconnection Feature

7. Installation & Commissioning

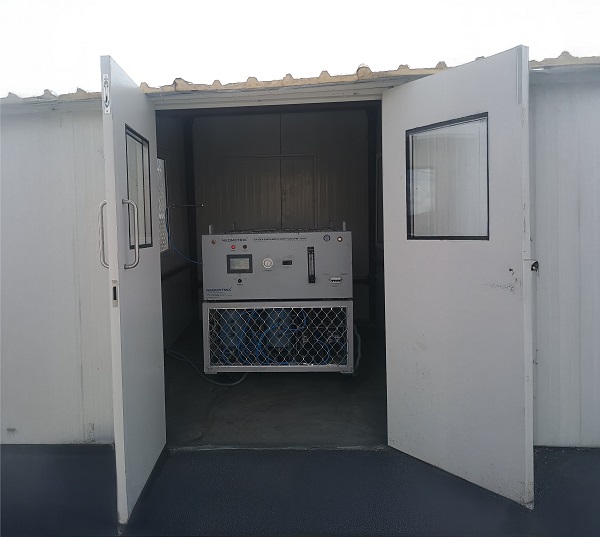

 • Skid-Mounted with Caster Wheels for easy transport

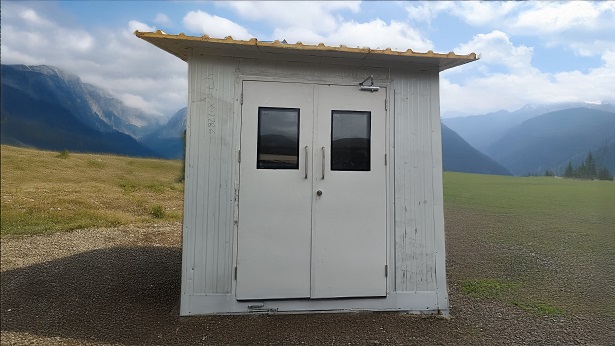

 • Minimal Site Prep: PUF panels and modular doors/windows
 • Commissioning Protocols: Leak tests, purity validation, and operator training
 • Plug-and-Play Architecture: Pre-wired panels and jointed pipes
 • Weatherproof & Seismic Ready: IP-rated enclosures and seismic anchoring
 • Documentation Kit: Includes manuals, P&IDs, and maintenance schedules

8. Maintenance & Lifecycle Support
 • Filter Replacements: Every 6–12 months (pre-filters, moisture separators, bacteria filters)
 • Molecular Sieve Refresh: 3–5 year cycle based on duty hours
 • Remote Monitoring: Optional SCADA integration for predictive maintenance
 • Central Maintenance Dashboard: Part life tracking and service logs
 • QR Code-Based Lookup: Access part manuals and replacement info instantly
 • Field-Replaceable Modules: Designed for quick swaps with minimal tools

9. Customization & Scalability
 • Capacity Expansion: Network multiple units in parallel
 • Integration: Interfaces with BMS or field shelter controls
 • Alternate Power: Solar-hybrid or inverter backups
 • Multi-Unit Synchronization & Load Balancing
 • Altitude Calibration Kit: Adjusts compressor & sensor behavior by elevation
 • Multi-Language HMI Support
 • Occupancy-Linked Control (Optional)

10. After-Sales & Warranty
 • Two-Year Warranty: Covers compressors, PLC, and sensors
 • On-Site Support: Regional service centers
 • Training Packages: Certification courses for operators and technicians
 • Digital Support Portal: 24/7 access to documentation and service tickets
 • Remote Diagnostics (SIM-enabled module)
 • Spare Part Kits: Pre-stocked for remote site deployments
 • On-Demand Refresher Training

Conclusion
The Neometrix Oxygen Enrichment Facility combines cutting-edge PSA technology, automated control, and high-altitude engineering to deliver a turnkey solution for respiratory support in extreme environments. Its modularity, ease of use, and comprehensive support make it essential for defense, research, medical, and civilian applications at altitude.
