KU-7 Oxygen Tester

About

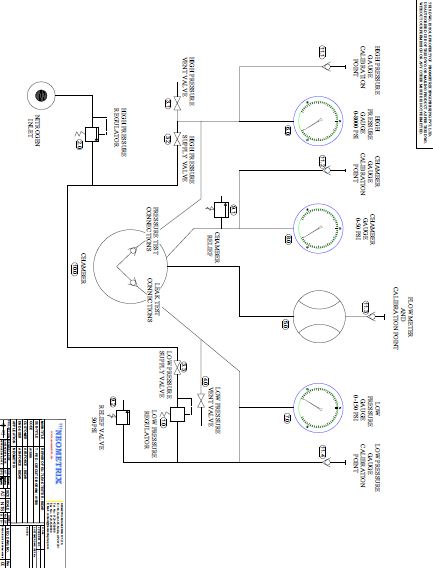

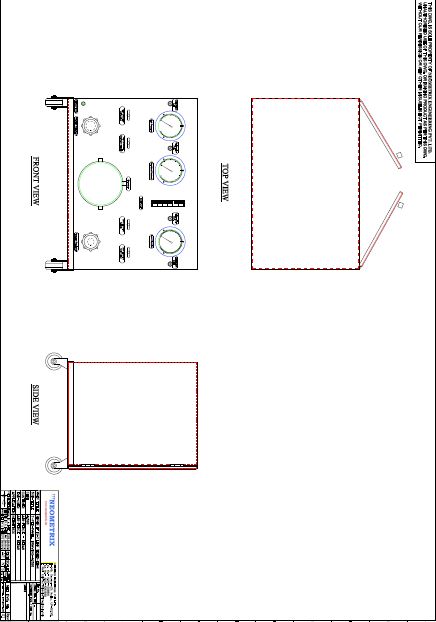

KU – Oxygen Tester is a device that tests the UUT. The rig consists of a Chamber to keep the Unit for Testing, Pressure Regulators to control the pressure and read on the pressure gauges. The rig is working on both High Operating Pressure (4000psi) and Low Operating Pressure (50psi). The working medium for the operation is Nitrogen gas. The Rig is portable as it has a wheeled Base and compact. The whole rig looks like a Trolley. As the rig has a wheeled base so it can be moved from one place to another with less effort.

Image Gallery

Technical Details

  • Working Medium : Nitrogen Gas
  • Operating Pressure : (1) High pressure side: 4000 psi (2) Low pressure side: 50 psi
  • Pressure Gauges: (1) Pressure Range: 0- 8600 psi (2) Pressure Range: 0- 140 psi (3) Pressure Range: 0- 60 psi
  • Function: Used for Leakage Testing
  • Pressure Regulators: (1) Input: 6000 psi, Output: 4000 psi (2) Input: 4000 psi, Output: 15000 psi

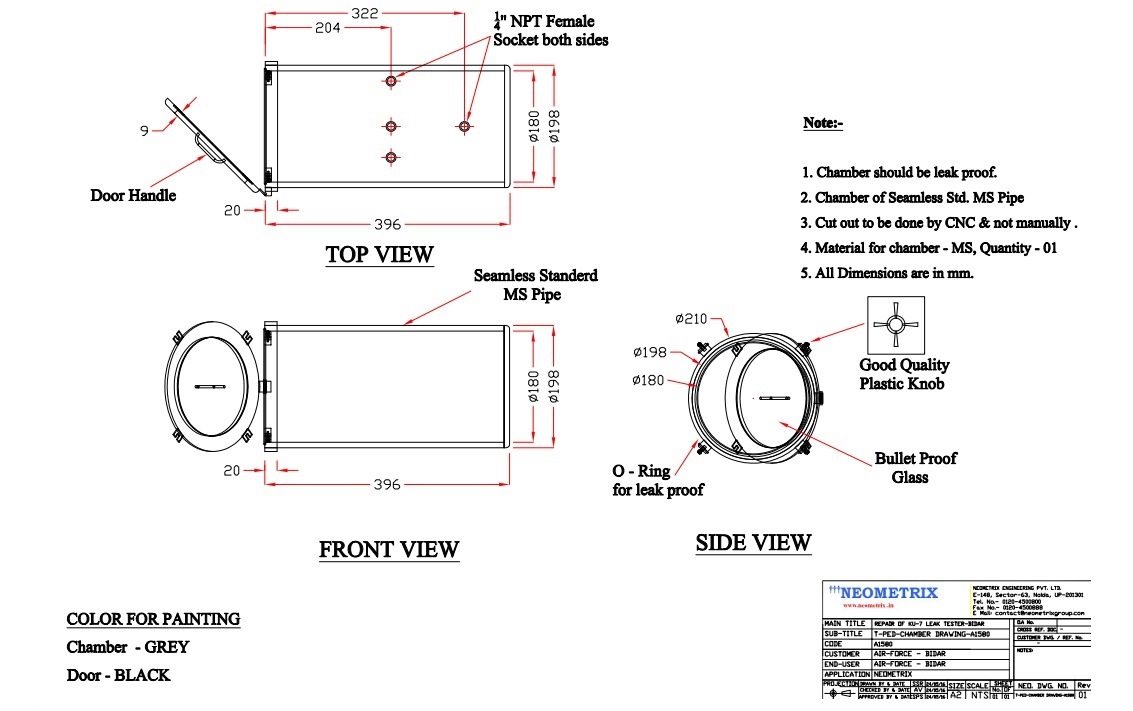

  • Leak proof Chamber

Ground Testing of Aerospace Units

Key Features

  • Low Pressure Regulator
  • High Pressure Regulator
  • Pressure Gauge
  • Pressure Relief Valve
  • Needle Valve
  • Leak Proof Chamber
  • Rotameter
