Copper Band Press for Ammunition Shell

About

A Copper Band Press Machine is a specialized piece of equipment used in the manufacturing of ammunition shells, particularly for medium to large-caliber rounds. Its primary purpose is to fit a copper driving band — also called a rotating band — securely around the body of an ammunition shell. The copper band plays a crucial role: it engages with the rifling inside a gun barrel to impart spin to the projectile, ensuring stability and accuracy during flight. The press machine applies controlled, high-pressure force to shrink-fit or swage the copper band onto the projectile body without causing deformation to the shell itself. Precision is critical, as any misalignment can affect the projectile’s performance. Typically, these machines are designed with robust hydraulic or mechanical systems, advanced tooling, and programmable controls to accommodate different shell calibers and band specifications.
No Image

Image Gallery

Technical Details


Parameter Typical Value / Range
Application Pressing copper driving bands onto projectile shells (tank shells, artillery shells, etc.)
Pressing Force 300 – 1000 metric tons (very high force)
Shell Diameter Range 120 mm – 155 mm (can vary based on caliber)
Copper Band Thickness 2 mm – 10 mm (depending on projectile size)
Copper Band Width 10 mm – 100 mm
Press Type Hydraulic Vertical Press (common)
Stroke Length 200 mm – 600 mm
Ram Speed 10 – 50 mm/sec (adjustable)
Motor Power 15 kW – 75 kW (depending on tonnage)
Hydraulic Pressure Up to 350 bar (5,000 psi)
Tooling Custom mandrel and pressing dies for each shell type
Loading/Unloading Manual, semi-automatic, or robotic arm
Control System PLC controlled with pressure, stroke, and position monitoring
Safety Features Light curtains, hydraulic pressure relief, two-hand operation, emergency stop
Dimensions (Press Machine) Approx. 2000 × 2500 × 3000 mm
Weight 8 – 20 tons (machine weight)

Pressing copper driving bands onto projectile shells (tank shells, artillery shells, etc.)

Key Features

  • A robust mechanical design with 12 radially arranged hydraulic cylinders ensuring uniform, synchronous forceapplication.
  • A central pressing station with adjustable vertical movement for precise positioning and ejection.
  • Fully automated cycle control with programmable indexing and dwell times, managed by a PLC and a 12-inch HMI.
  • A comprehensive hydraulic power pack delivering reliable high-pressure performance, with a minimum 1500-liter oil capacity, effective heat management, and integrated lubrication.
  • An advanced electrical system with dedicated panels, robust power distribution, and safety interlocks to ensure operational reliability and operator safety.

Download Gallery

×

Enquire Now

and we will get back to you.

Details

1. DESCRIPTION AND MECHANICAL DESIGN
1.1 Overview
 • Equipment: One Hydraulic Band Press with a rated capacity of 1000 tons ie. (12 X Max 83 Tonne Hydraulic Cylinder for pressing)
 • Application: Designed for mounting an annealed copper or gilding metal band into the external circular groove of a hollow steel cylindrical body (positioned vertically on its base).

1.2 Press Structure and Operation
 • Pressing Mechanism:
   - The press is equipped with 12 hydraulic cylinders and pistons arranged radially in a single horizontal plane around a central pressing station.
   - Each cylinder drives a heavy-duty pressing jaw  and all 12 cylinders move synchronously to apply a uniform radial force into the groove.
   - The cylinders are fabricated in one piece (with no welding) and mounted on a one-piece structural frame using bolt connections for fine alignment. The mounting surfaces are machined to ensure square alignment as per machine tool standards.
 • Hydraulic Cylinder Specifications:
   - Quantity: 12
   - Piston Diameter: Minimum 200 mm
   - Piston Rod Diameter: Minimum 110 mm
   - Cylinder Wall Thickness: 75 mm
   - Stroke: 30–35 mm
   - Arrangement: Evenly spaced at 30° intervals around the central pressing station.
 • Central Pressing Station:
   - Located centrally among the 12 jaws, it moves vertically via a hydraulic (ejector) cylinder with an adjustable stroke of approximately 200 mm (adjustable via HMI).
   - The station positions the hollow body’s groove within the pressing zone and then ejects the finished body for manual unloading.
 • Cycle Operation:
   1.  Loading: The hollow cylindrical body with the pre-mounted band is manually loaded onto the  central pressing station using an electrical hoist.
   2.  Positioning: The station moves downward to align the body’s groove with the 12 pressing jaws.
   3.  Pressing: The 12 jaws concurrently move radially inward to initially grip and then press the band into the groove, applying a predetermined dwell time.
   4.  Retraction & Indexing: After pressing, the jaws retract. If multiple pressings are required, an automatic indexing mechanism rotates the body (in programmable steps of 15° to 90° for 1 to 11 indexings per cycle) before subsequent pressings.
   5.  Ejection: The central station then moves upward to present the pressed body for manual unloading.

  Production Rate: The system is designed to achieve a minimum output of 20 band-pressed hollow bodies per hour, inclusive of manual loading and unloading (each not exceeding 25 seconds).

2. AUTOMATION, ELECTRICAL CONTROL, AND HYDRAULIC POWER PACK

2.1 Electrical Power System and Panels
 • Panels and Enclosures:
   - The press is equipped with dedicated Power, Control, and Operator Panels housed in IP54-rated enclosures, fabricated from 14/16 SWG CRCA sheet and powder coated in pebble gray.
   - Standard switchgear (e.g., MCCBs for incoming supply and motor feeders, isolators, LED indicators, and panel lighting) are integrated.
 • Power Distribution and Protection:
   - Power is distributed through copper bus-bars, and a calibrated digital energy meter is included.
   - A surge protection device is installed for both the AC and 12/24 V DC control supplies.
   - Proper earthing is ensured via copper strips and designated earth terminals.

2.2 Hydraulic Power Pack
 • System Overview:
   - The press is powered by a complete hydraulic power pack that includes motors, a set of hydraulic pumps, valves, a heat exchanger, and all necessary connecting pipes.

 • Key Specifications:
   - Pump Type: High-pressure pumps of reciprocating piston/plunger (piston pump) type.
   - Installation: Both primary and secondary pressure pumps are mounted externally on the power pack with positive suction.
   - Tank Volume: The system contains a minimum of 1500 liters of hydraulic oil, with provisions (power baffle plates and a heat exchanger) to prevent overheating.
   - Lubrication: Metered cartridges are provided for piston lubrication along with a separate lubrication pump.
 • Performance:
   - The power pack is designed to deliver consistent operating pressure (270 kg/cm² working, up to 300 kg/cm² maximum) to all 12 hydraulic cylinders, ensuring uniform force application during pressing.

2.3 Control System and PLC Integration
 • PLC-Based Control:
   - A PLC (e.g., Siemens S7-300) controls the entire operation, managing horizontal strokes, dwell time, indexing (both number and degree), and job counting.
   - The system is provisioned with additional I/O capacity for future expansion.
 • Human-Machine Interface (HMI):
   - A touch-screen HMI (minimum 10-inch color display) provides graphical visualization of process flows and allows adjustment of key parameters such as ejector stroke, hydraulic pressure, dwell time, and indexing settings.
   - The HMI supports recipe functions to save and recall settings and includes password protection for parameter changes.
 • Auxiliary Features:
   - All electrical motors (including those for indexing) meet IE-3 efficiency standards and have proper MPCB protection.
   - Junction boxes for control and power wiring are provided, with cable trays installed for proper cable management.
   - An SMPS unit supplies low-voltage power, and the final PLC/HMI program is backed up on removable media. An industrial-grade laptop is provided for diagnostics.

2.4 Safety and Interlock Systems
 • Interlocks:
   - Hardware limit switches (limit, proximity, and reed types) prevent over-travel and ensure safe operation.
   - An emergency stop button is incorporated in the control panel for immediate shutdown if necessary.
 • Environmental Monitoring: The system is designed for operation under ambient temperatures up to 50°C, with fault alarms (visual and audible) for abnormal conditions.
 • Backup: The system includes provisions for backup and diagnostics, with online PLC access available without password blocking.

3. OPERATING PARAMETERS AND PERFORMANCE

3.1 Force and Hydraulic Performance
 • Radial Force: Adjustable from 250 to 1000 tons via digital control on the HMI.
 • Operating Pressure: 270 kg/cm² working pressure with a maximum of 300 kg/cm².
 • Hydraulic Cylinder Performance: All 12 cylinders operate synchronously with a stroke of 30–35 mm to ensure even force distribution.
 • Ejector System: Capacity of 5 to 20 tons upward and 5 tons downward, with an adjustable stroke (up to 200 mm controlled via HMI).

3.2 Cycle Timing and Indexing
 • Cycle Time: Total cycle time (including manual loading and unloading, each capped at 25 seconds) is programmed to not exceed 144 seconds.

 • Indexing: Programmable indexing in increments of 15° (from 15° to 90° per cycle), with 1 to 11 indexings per pressing cycle.
 • Dwell Time: Adjustable dwell time per pressing from 0 to 15 seconds in 1-second increments.

3.3 Power Supply:
 • The system operates on a three-phase 415 V ±10%, 50 Hz AC supply.

4. SUMMARY
This technical offer describes a single 1000‐ton Hydraulic Band Press designed for precision mounting of a copper or gilding metal band into the external groove of a hollow steel cylindrical body. Key features include:
 • A robust mechanical design with 12 radially arranged hydraulic cylinders ensuring uniform, synchronous force application.
 • A central pressing station with adjustable vertical movement for precise positioning and ejection.
 • Fully automated cycle control with programmable indexing and dwell times, managed by a PLC and a 12-inch HMI.
 • A comprehensive hydraulic power pack delivering reliable high-pressure performance, with a minimum 1500-liter oil capacity, effective heat management, and integrated lubrication.
 • An advanced electrical system with dedicated panels, robust power distribution, and safety interlocks to ensure operational reliability and operator safety.

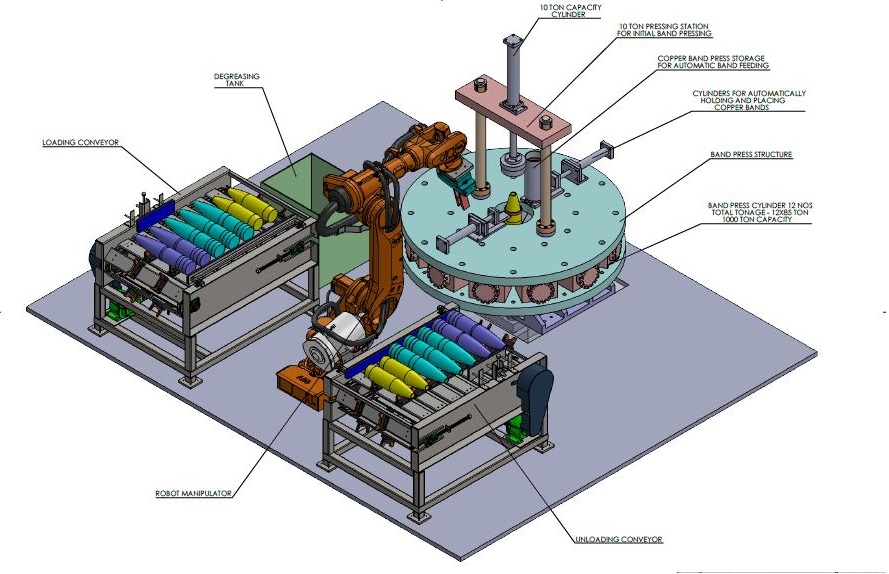

Process Stage Description
Before Crimping Preparation - Copper bands loaded automatically into machine before production.
- Projectiles brought to workstation in user-specified pallet, picked by robot.
- Unload pallet ready for completed workpieces.
- Degreasing pot prepared at degreasing station.
Crimping Process - Robot dips shell 150mm into degreasing pot.
- Shell lifted and chemicals sprayed away from groove.
- Robot loads shell into crimping press.
- Operator confirms shell is positioned correctly.
- Press crimps copper band and releases shell.
- Robot moves completed workpiece to unload station.
Process Time Cycle time: 4 minutes per round.
Crimping Press - Minimum of 12 jaws.
- Movement of workpieces automated.
- Camera and display installed to check positioning before crimping.
Test Output - Indicator light: Green (pass), Red (fail, requires acknowledgment).
- Record and store crimp pressure and holding time for each workpiece.
- Inspection report generation when needed.
Other Features - Ability to operate crimping press manually without robot.
Machine Footprint - Maximum 5m x 6m.
- Supplier to conduct site survey for layout confirmation.
Automation - Only one (1) operator required for loading, unloading, and operation.
Handling of Workpiece - Pick and Place robot handles loading/unloading based on user pallet design.
- Manual handling by jib crane if manual mode used.
Robot Arm - One (1) ABB-brand robot arm mounted to ground.
- Customized gripper for part shape.
- Fencing around robot for safety with interlock stopping robot if fencing opened.
Safety - Fencing to isolate robot from human operators.
- Interlocks for robot safety.
Software/Hardware - Machine-readable copies of all source codes (PLC, HMI, robot, sensors).
- Complete software list with versions and hardware requirements.
- Specialty hardware (cables, interfaces) supplied.
- All control code properly commented and documented.
Parameter Typical Value / Range
Application Pressing copper driving bands onto projectile shells (tank shells, artillery shells, etc.)
Pressing Force 300 – 1000 metric tons (very high force)
Shell Diameter Range 120 mm – 155 mm (can vary based on caliber)
Copper Band Thickness 2 mm – 10 mm (depending on projectile size)
Copper Band Width 10 mm – 100 mm
Press Type Hydraulic Vertical Press (common)
Stroke Length 200 mm – 600 mm
Ram Speed 10 – 50 mm/sec (adjustable)
Motor Power 15 kW – 75 kW (depending on tonnage)
Hydraulic Pressure Up to 350 bar (5,000 psi)
Tooling Custom mandrel and pressing dies for each shell type
Loading/Unloading Manual, semi-automatic, or robotic arm
Control System PLC controlled with pressure, stroke, and position monitoring
Safety Features Light curtains, hydraulic pressure relief, two-hand operation, emergency stop
Dimensions (Press Machine) Approx. 2000 × 2500 × 3000 mm
Weight 8 – 20 tons (machine weight)
Some modern copper band press machines for ammunition manufacturing also include: • Rotary indexing tables (for continuous production) • Pre-heating stations (to slightly expand the copper band thermally before pressing) • Automatic shell recognition and program selection (via barcode/RFID) • Data logging for each shell pressed (serial number traceability)
