• Performance testing of multi-channel aircraft actuators • Verification of linear force output, displacement, and stroke behavior • Speed control testing of the actuator’s output link • Leak testing and SPM operational verification • Defense, aerospace, and R&D applications where electro-hydraulic actuators are employed
and we will get back to you.
Thank You!
Your enquiry has been received, We will get back to you shortly.

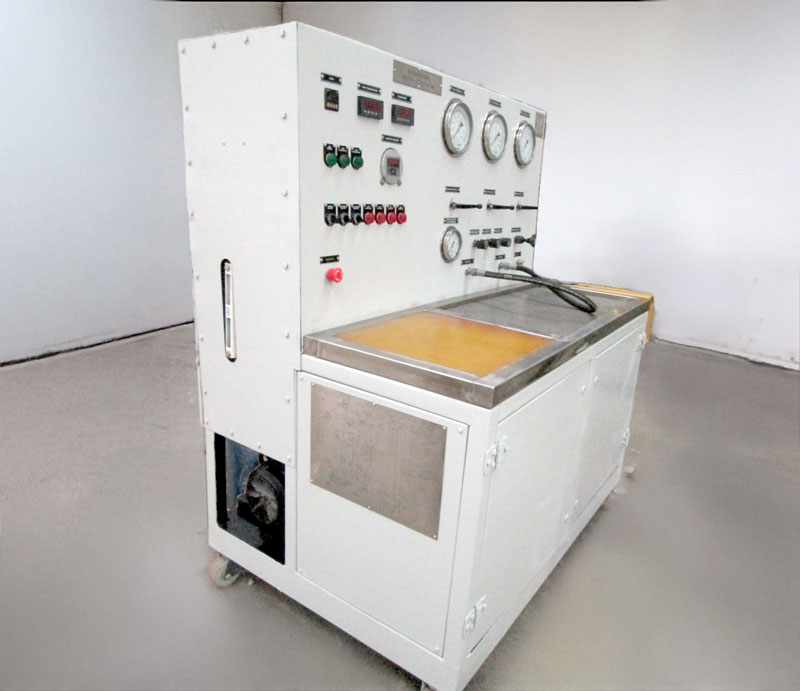

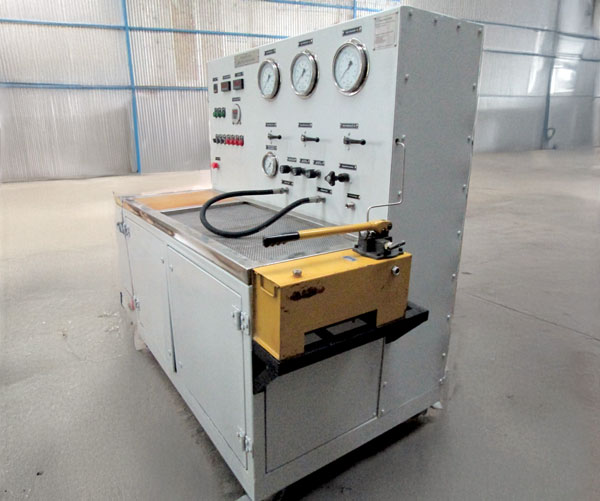

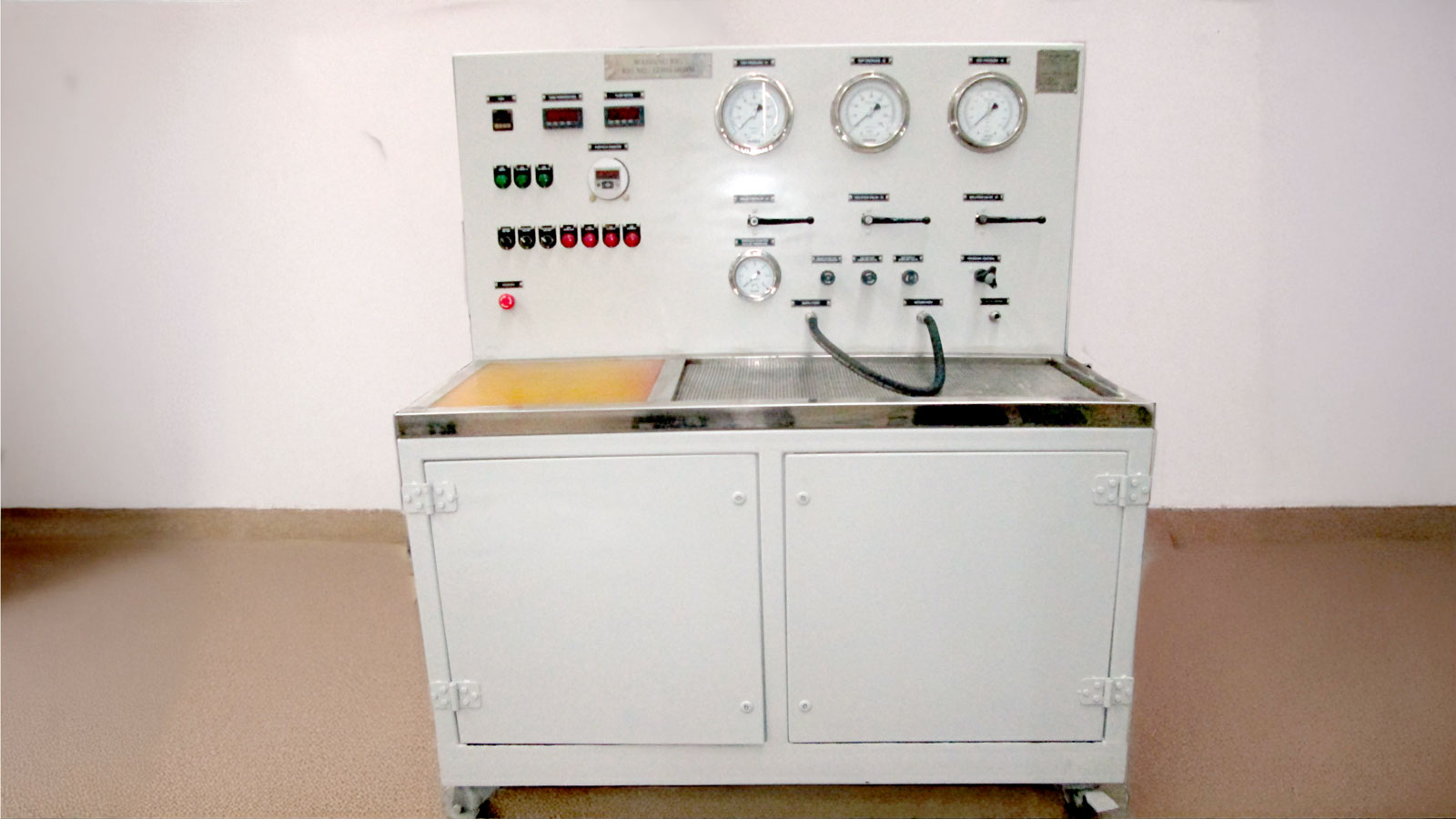

Introduction The Manual Loading Rig is a specialized electro-hydraulic test system developed for the performance evaluation and validation of multi-channel power drives used in aircraft systems. This test bench simulates real-world mechanical load conditions, enabling comprehensive force, displacement, and leak tests. It combines rugged mechanical construction with sophisticated instrumentation and software-driven automation to ensure precise and repeatable test results. Key Features • Multi-Channel Electro-Hydraulic Testing Capability: Designed to test complex multi-channel actuators by measuring force, displacement, speed, and sealing performance. • Advanced Measurement System: Integrates load cells, LVDT-based displacement sensors, and digital pressure and temperature transducers. • Industrial Grade Control System: PLC- and PC-based control with NI data acquisition cards, graphical UI, and a custom-developed software suite. • Comprehensive Filtration System: Triple-stage inline filters (20μ, 10μ, 5μ) with electrical clog indicators and shutdown interlocks ensure hydraulic cleanliness up to NAS Class 4. • Efficient Thermal Management: A water-cooled heat exchanger maintains fluid temperature within the operational range of 25–40°C. • Built-In Safety Interlocks: Automatic shutdowns for motor overloads, low oil level, clogged filters, and power phase disorders. Applications • Performance testing of multi-channel aircraft actuators • Verification of linear force output, displacement, and stroke behavior • Speed control testing of the actuator’s output link • Leak testing and SPM operational verification • Defense, aerospace, and R&D applications where electro-hydraulic actuators are employed System Components & Functionality Hydraulic System: - Hydraulic Oil: AMG-10 or equivalent - Tank Capacity: 60 liters (SS-304) - Pump: 25 HP axial piston pump, 45 LPM @ 250 kgf/cm2 - Filters: Pall inline filters with 8μ, 5μ, and 20μ elements and clogging sensors - Heat Exchanger: Alfa Laval, 20 LPM chilled water at 20°C - Hoses: SS braided Teflon with 220 Bar rating Control Panel: - Dual-panel layout: Hydraulic and Electrical - 2 Digital Readouts (DROs) for temperature and flow - Digital timer, particle counters (NAS class), and emergency stop - Motor and valve ON/OFF push buttons with LED indicators Measurement & Instrumentation: - Force Measurement: Honeywell load cell, up to 30,000 kgf - Displacement & Speed: Ceresco LVDT sensors (250 mm range, 0.01% accuracy) - System Monitoring: Pressure gauges, flow meter, temperature sensor, and particle counter Software Features - Custom GUI with login-based access for operators and administrators - Calibration window for sensor adjustment - Test selection and parameter monitoring interface - Real-time fault indicators - Data logging and report generation in HTML format Technical Specifications
