Amid the ongoing COVID-19 crisis, the planning for the management of oxygen generation with the right equipment for the right time is vital to a hospital or alternate medical care application.

To avoid on the dependency of the oxygen cylinders from outside, the hospitals all across the globe look for onsite oxygen generation and have already implemented the change to produce their own medical Oxygen Onsite.

Medical Oxygen Generators produce gaseous oxygen from compressed air on site and offer a cost-effective, reliable and safe alternative to traditional oxygen gas supplies such as cylinders or cryogenic liquid.

TECHNICAL FACTS

Plant Capacity
5NM3/Hr to 100NM3/Hr
Oxygen Purity
As per Indian Medical standard purity is 93±3%
Pressure
Oxygen pressure is usually less than 5Bar
Gas Storage & Backup
We are providing with both bottling and none bottling options

For, the industry, worth over $2 billion in India, is producing nearly 7,800MTPD of oxygen, while demand has risen to 5,500-5,800 MTPD now. Traditionally Oxygen in Medical field has been used from cylinders or from liquid tank.

The biggest problem with gases — such as oxygen — is transportation. However, since 1970, PSA Oxygen generators have come in use for Medical Oxygen gas.

These greatly reduce capital cost and offer mobility for requirement of hospitals and health care sector. Because Oxygen has traditionally been delivered from cryogenic sources, the medical Oxygen specified that purity had to be greater than 99 per cent.

However, extensive clinical trials led to conclusion that 93 ± 3% Oxygen from PSA Oxygen generator presented no physiological effect on patients and therefore, now Oxygen generated by PSA generators is acceptable for use and is recognized and permitted by USA, European and Indian Pharmacopeia.

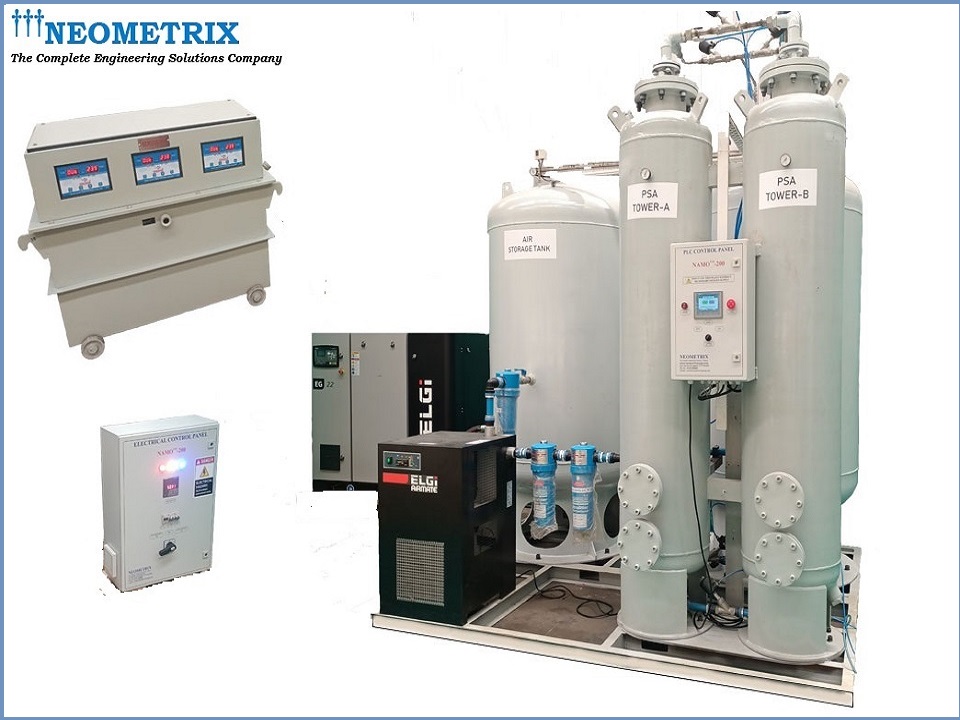

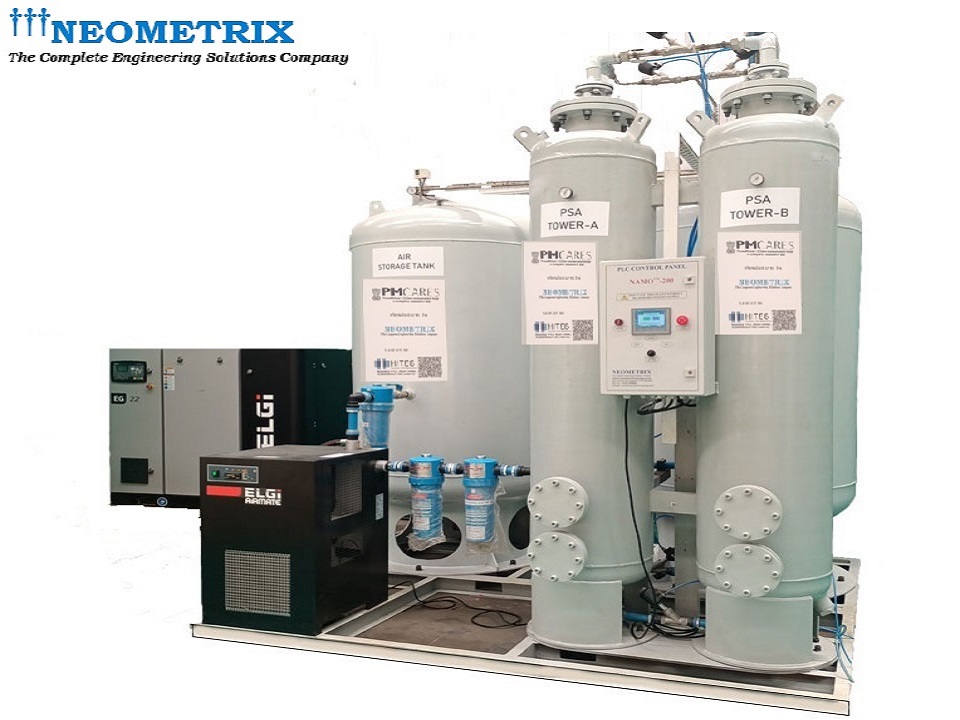

Fully automated Medical Oxygen PSA plant


HOW IT WORKS

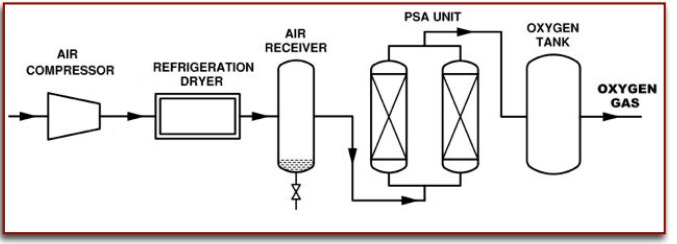

Air contains 21% Oxygen, 78% Nitrogen, 0.9% Argon and 0.1% other trace gases. NAMO An Oxygen generator separates this oxygen from Compressed Air through a unique process called Pressure Swing Adsorption(PSA). The Pressure Swing Adsorption process for the generation of enriched oxygen gas from ambient air utilises the ability of a synthetic Zeolite Molecular Sieve to absorb mainly nitrogen. While nitrogen concentrates in the pore system of the Zeolite, Oxygen Gas is produced as a product. NAMO Oxygen generation plant’s use two vessels filled with Zeolite Molecular sieve as adsorbers. As Compressed Air passes up through one of the adsorbers, the molecular sieve selectively adsorbs the Nitrogen. This then allows the remaining Oxygen to pass on up through the adsorber and exit as a product gas. When the adsorber becomes saturated with Nitrogen the inlet airflow is switched to the second adsorber. The first adsorber is regenerated by desorbing nitrogen through depressurisation and purging it with some of the product oxygen. The cycle is then repeated and the pressure is continually swinging between a higher level at adsorption (Production) and a lower level at desorption (Regeneration).


Medical Oxygen Major Component

Neometrix is working to supply a quality product to ensure the best services to the medical units:

    We use reputed make components in our NAMO series oxygen generator
  • Screw type Air Compressor with Refrigeration Dryer
  • Multistage Coalescing type Oil filters to purify Air.
  • Air Receiver medical grade
  • Oxygen Generator with PLC Control based automated control system
  • Medical grade Oxygen Buffer Tank
  • Micro & Bacterial filtration unit
  • Power backup and Power fluctuation free system
  • 30 minute backup to control system for emergency support

Safety Interlocks

OXYGEN PURITY

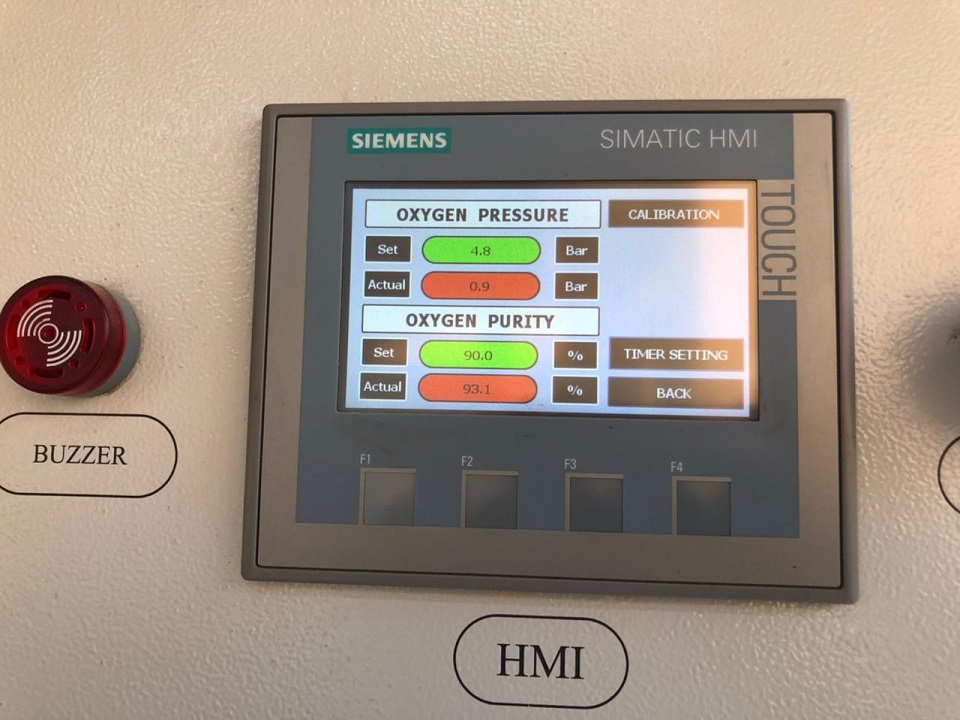

As per medical standard, The supplied oxygen should be of 93±3% pure & our system is interlocked with this purity to give audio visual alarm to the operator for any out of range oxygen scale.

PRESSURE

Outlet pressure of an oxygen system is interlocked with pressure switch for any pressure going beyond 5 Bar & continuous pressure is also being monitored using pressure transmitter.

BACKUP SYSTEM

As many of our system is installed at remote areas, Power is one of the major factor affecting this, We are providing a power backup of 30 minutes for control backup for emergency use.

NEOMETRIX NAMO Models

NAMO Model No.Medical Oxygen Flow Rate NM3/HrMedical Oxygen Flow Rate (LPM)Delivery Period
NAMO™-05-S5836-8 Weeks
NAMO™-06-S61006-8 Weeks
NAMO™-12-S122006-8 Weeks
NAMO™-15-S152506-8 Weeks
NAMO™-20-S2033210-12 Weeks
NAMO™-30-S3050010-12 Weeks
NAMO™-40-S4066410-12 Weeks
NAMO™-50-S5083010-12 Weeks
NAMO™-60-S60100012-14 Weeks
NAMO™-70-S70116212-14 Weeks
NAMO™-80-S80132812-14 Weeks
NAMO™-90-S90150012-14 Weeks
NAMO™-100-S100166012-14 Weeks
