• Track Condition Monitoring — detection of stiffness variation, settlement, gauge widening, or alignment faults. • Vehicle Dynamics Research — validation of suspension and bogie models. • Ride Comfort & Safety Assessment — correlation of vertical/lateral force spectra with ride quality indices. • Derailment Prediction & Model Verification — empirical data for NUCARS / SIMPACK and in-house RDSO models. • Maintenance Planning — predictive intervention based on force-map analytics. • Educational & Research Platform — postgraduate instrumentation and dynamics experiments at IIT Kanpur and RDSO.
and we will get back to you.
Thank You!
Your enquiry has been received, We will get back to you shortly.

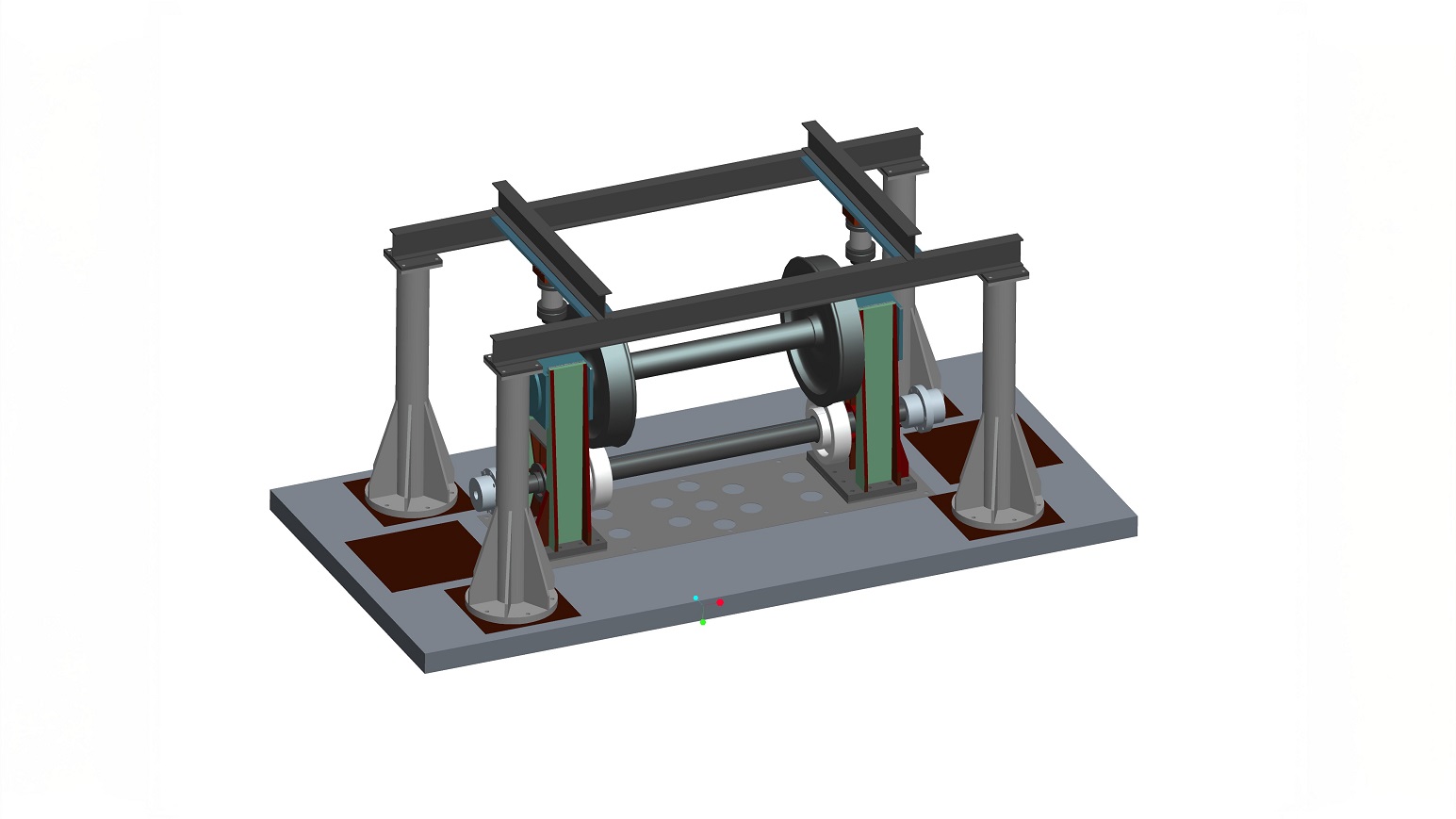

1. Project Background & Purpose In the early 2000s, Indian Railways was expanding its network faster than ever — but a fundamental technical question remained unanswered: What exactly does a train’s wheel experience as it rolls over India’s rail network? Every kilometer of track presents a different story — gradients, welds, curves, ballast stiffness, and track irregularities. Yet, for decades, engineers had to rely on theoretical models and indirect estimations to predict the dynamic forces acting between the steel wheel and steel rail. Without direct data, safety margins and maintenance schedules could only ever be approximations. The Measuring Wheel Technology Project under the Technology Mission on Railway Safety (TMRS) was born to change that. Led by IIT Kanpur and RDSO Lucknow, with Neometrix Defence Limited as the industrial partner responsible for mechanical system design, hydraulic calibration infrastructure, and instrumentation integration, the project sought to develop a fully indigenous instrumented wheelset capable of measuring real-time dynamic wheel–rail interaction forces while running between location A and B under actual field conditions. This was more than an academic exercise. It was the foundation for modern track condition monitoring, vehicle dynamics validation, and data-driven railway safety in India — the first time that the wheel itself could “feel” and “report” the physical forces it endured on every rotation. 2. System Architecture & Engineering Overview The Instrumented Measuring Wheel (IMW) is a multidisciplinary integration of precision mechanics, strain-gauge instrumentation, telemetry, and hydraulic simulation. It functions as both a research tool and a diagnostic platform for railway engineers studying dynamic behavior between wheel and rail. 2.1 Instrumented Wheelset Assembly The central component is a high-precision railway wheel instrumented with strain gauges arranged in full-bridge configurations to independently resolve: • Vertical forces (Q) — due to static and dynamic axle loading • Lateral forces (Y) — due to curving, hunting, and alignment errors • Torsional and creep components, if enabled by configuration Key technical features: • FEM-based gauge positioning to isolate stress directions • 350 Ω temperature-compensated strain gauges with hermetic sealing • Vibration-resistant mounting and dynamic balancing (safe to 160 km/h) • Stainless-steel cabling and epoxy protection for environmental robustness 2.2 Inductive Telemetry System Because slip rings are unsuitable for sustained railway speeds, the IMW uses a contactless inductive telemetry system for both power and data transmission. • Transmitter (wheel-mounted): receives inductive power and transmits conditioned sensor signals. • Receiver (bogie-mounted): provides stable excitation and captures wireless data across an air gap of ≈ 0.1 m. • MT32-IND-TX/RX, MT32-STG, and MT32-DEC16 modules handle multiplexing, encoding, and decoding of 16 parallel channels with minimal signal noise. • High-frequency carrier modulation ensures signal integrity under vibration, moisture, and EMI from traction motors. 2.3 Signal Conditioning & Data Acquisition Signals from the receiver are fed into a ruggedized DAQ suite integrating: • Multi-channel strain input conditioners (±10 V input range) • 16-bit A/D converters with ≥ 1 kHz sampling rate per channel • Encoder interface for rotational reference and positional tagging • Synchronization with GPS or odometer inputs for track mapping All data are logged in real time and correlated with vehicle speed and distance, generating continuous force profiles along the route. 2.4 Hydraulic Calibration & Test Rig Designed and built by Neometrix Defence Limited, the Hydraulic Calibration Rig is a fully-instrumented test system capable of simulating the combined vertical and lateral loading experienced by a railway wheel in service. Core capabilities: • Two independent servo-hydraulic actuators (vertical / lateral) • Rotational drive up to 1000 RPM for dynamic calibration • Load frame FEM-validated for 250 kN vertical + 100 kN lateral capacity • Integrated load cells, displacement sensors, and control software • Calibration accuracy within ±0.5 % FS The rig allows precise determination of calibration coefficients linking measured strain to applied force, verifying linearity, cross-talk, and hysteresis before field deployment. 2.5 Software & Analytical Framework The custom software environment provides: • Real-time visualization of vertical and lateral loads • Temperature compensation and drift correction algorithms • FFT-based frequency analysis for detecting vibration signatures • GPS-linked force mapping for geographic correlation • Export of datasets to MATLAB / LabVIEW / CSV for advanced modelling This enables engineers to perform track stiffness estimation, hunting stability analysis, and wheel–rail contact evaluation from a single integrated dataset. 3. Technical Specifications
