1. Automobile Assembly Lines: Inline quality control to certify every CNG-powered vehicle before shipment. 2. CNG Cylinder Manufacturers: Batch testing of assembled fuel circuits and cylinders for factory certification. 3. Service & Conversion Workshops: Periodic safety checks and leak diagnostics during maintenance or retrofit of CNG systems.

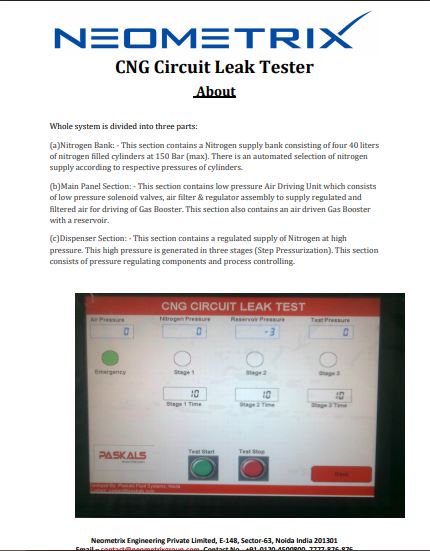

General

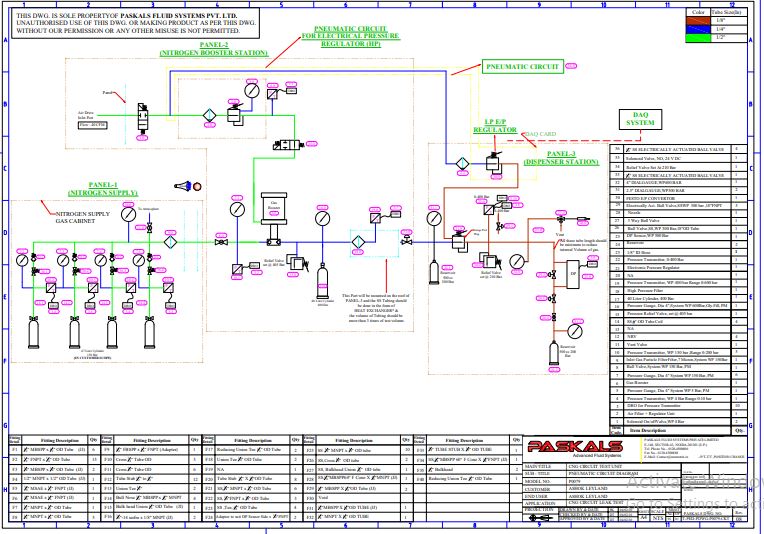

Design 1
Design 2
and we will get back to you.
Thank You!
Your enquiry has been received, We will get back to you shortly.
1. Introduction the CNG Circuit Leak Tester CNG vehicles to ensure absolute integrity of their fuel delivery circuits. Leaks in a CNG system pose both safety and environmental risks, so this tester pressurizes the entire circuit with dry nitrogen and precisely monitors pressure decay against a pre-charged reference, automating what would otherwise be a labor-intensive manual check. The system is PLC-controlled for remote start/stop, features multi-level safety interlocks, and is housed in a compact, modular frame for ease of integration on production lines or in service workshops. 2. Key Features - Three-Module Architecture: 1. Nitrogen Bank: Four 40 L cylinders (up to 150 bar) with automatic change-over logic; each cylinder’s pressure is LED-monitored and automatically sequenced for uninterrupted testing. 2. Main Panel: Contains a five-micron–filtered, regulated air drive (4–7 bar, 40–60 CFM) for the Haskel air-driven gas booster, plus PLC, solenoid valves, and air filters/regulators. 3. Dispenser Section: Houses the high-pressure reservoir, three-stage dome-loaded regulators (0–50 bar, 50–100 bar, 100–200 bar), digital pressure readouts (DRO), and differential pressure transmitter. - Industrial-Grade Components: - Haskel Booster: Air-driven, area-ratio piston booster generates up to 250 bar from 4–7 bar air input. - Swagelok & SMC Fittings: High-precision filters, valves, regulators, hoses, relief and ball valves. - Wika Instrumentation: Bourdon gauges and electronic transmitters for visual and PLC feedback. - EKC Sample Cylinder & DRO: Maintains a 200 bar reference for differential-pressure leak detection. - Automated Sequence & Safety: - Pre-test venting cycle eliminates residual line pressure. - Three-stage pressurization with programmable hold times (10 s at 50 bar, 30 s at 100 bar, 60 s at 200 bar). - Safety interlocks on air and nitrogen inlet pressures, emergency depressurization solenoids, and annunciator LEDs. 3. Applications 1. Automobile Assembly Lines: Inline quality control to certify every CNG-powered vehicle before shipment. 2. CNG Cylinder Manufacturers: Batch testing of assembled fuel circuits and cylinders for factory certification. 3. Service & Conversion Workshops: Periodic safety checks and leak diagnostics during maintenance or retrofit of CNG systems. 4. Technical Specifications
