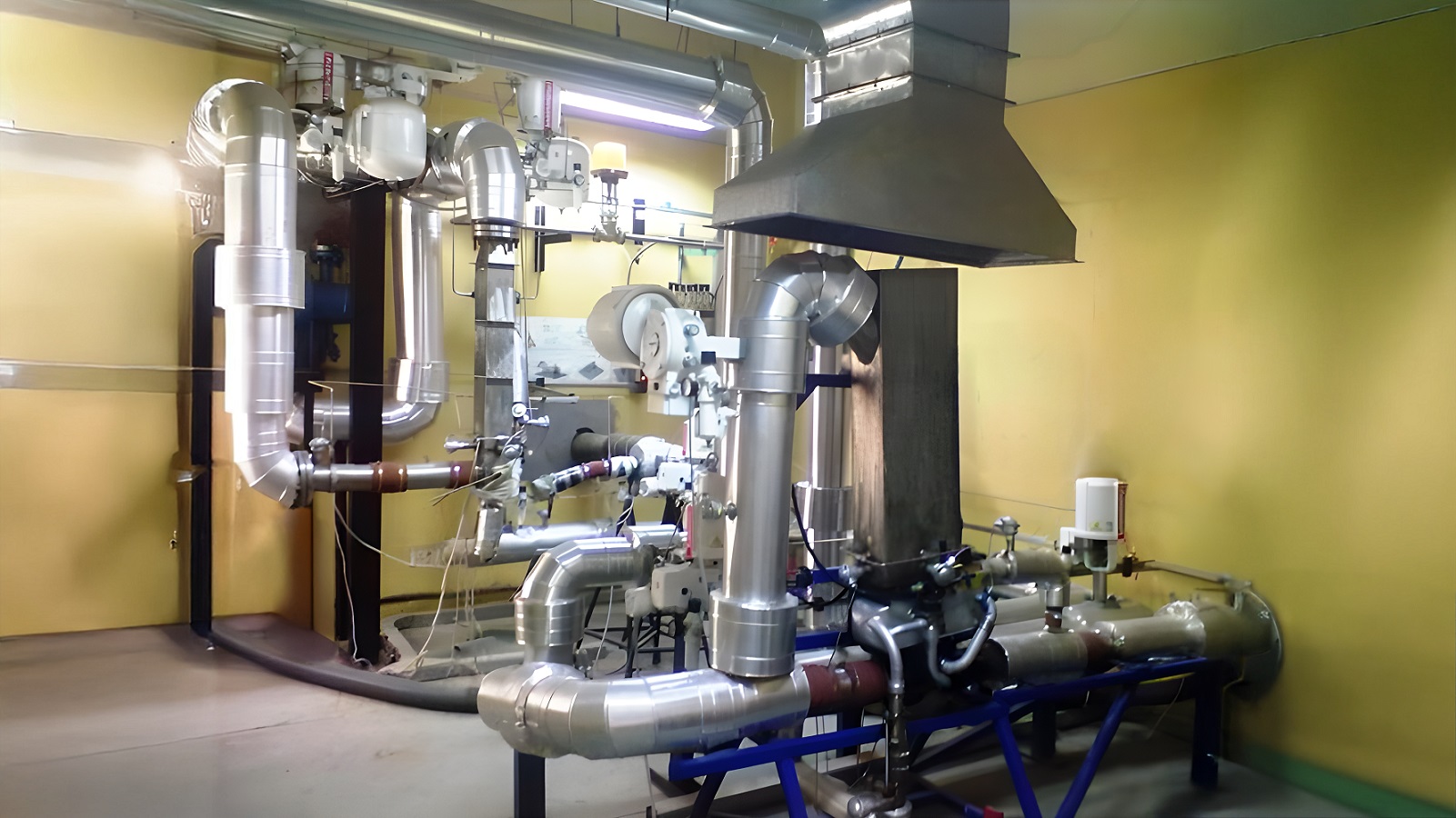

The Environmental Control System Test Bench – Model A0624, developed and manufactured by the Neometrix Group, is a high-precision, modular, and aerospace-grade ground testing platform specifically designed for the qualification and validation of Environmental Control System (ECS) units across the entire spectrum of aerospace platforms.
Originally engineered for the Environmental Control System units of the Advanced Light Helicopter (ALH), this test bench has since evolved into a fully customizable and scalable platform, making it ideal for military and civilian aviation applications, including helicopters, fighter jets, transport aircraft, business jets, UAVs, and even space cabin pressurization systems.

Cross-Platform Compatibility for All Aerospace ECS Units
The Environmental Control System Test Bench is built with adaptability at its core. Its modular design and interchangeable adaptor assemblies enable seamless integration with ECS units of the following platforms:
• Rotary-Wing Aircraft: ALH, LUH, Apache, Mi-17, Chinook
• Fixed-Wing Fighters: Tejas, Mirage, Rafale, Su-30MKI
• Transport Aircraft: C-130, C-17, IL-76, Dornier 228
• Civil Aircraft: Airbus A320, A330, Boeing 737, 777, 787
• Business Jets: Falcon, Gulfstream, Embraer, Bombardier
• Unmanned Aerial Vehicles: HALE/MALE and tactical UAVs
• Space Applications: Cabin ECS simulation for LEO capsules
• Research Labs: For R&D, prototype qualification, endurance cycling

Complete Functional Testing Capabilities

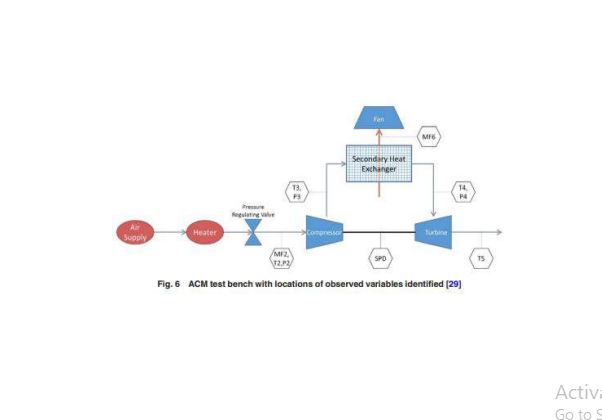

The test bench can simulate nearly all conditions encountered by an Environmental Control System unit during actual flight, including:
• Bleed Air Supply Simulation (up to 600°F, 40 psi)
• Ram Air Inlet Simulation (passive airflow and dynamic pressure modes)
• Temperature Conditioning (chillers/heaters optional)
• Humidity Regulation & Dehumidification Testing
• Fan/Turbine Speed and Flow Validation

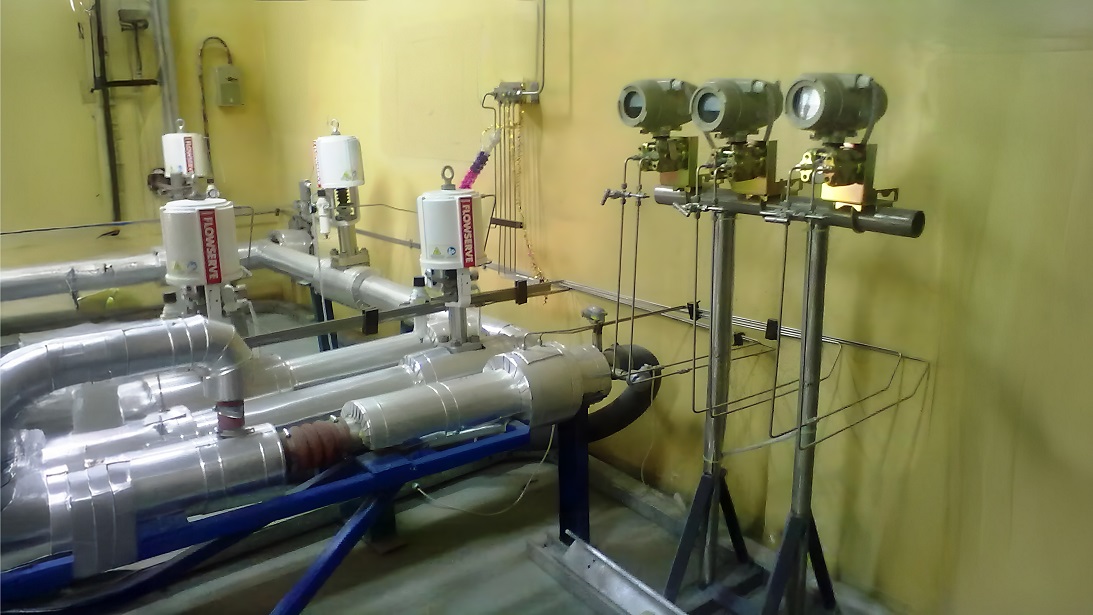

• Manifold Integrity, Air Tightness & Pressure Drop Tests
• Conditioned Air Flow Outlet Performance
• Overboard Vent Simulation and Pressure Dump Valves Testing

Technical Specifications







Parameter

Specification







System Type

Modular Environmental Control System Test Bench with Multi-Point Simulation Capability




Primary Test Interfaces

Turbine Inlet/Outlet, Fan Inlet/Outlet, Bleed Air Inlet, Ram Air, Conditioned Air Outlet, Manifold Ports




Max Air Temperature Input

600°F (315°C)




Max Operating Pressure

3 Bar (43.5 psi) standard; higher pressure versions available




Flow Rate Range

5–1500 CFM (customizable depending on ECS application)




Construction Material

SS-304 Stainless Steel (pressure paths), MS with powder coat (non-pressure structures)




Mounting Options

Custom Modular Fixtures with Quick-Release Brackets




Instrumentation Ports

Pressure Transducers, Flow Meters, Temp Sensors, Humidity Probes




Data Acquisition Compatibility

NI DAQ / LabVIEW / SCADA / PLC HMI Interface (optional integration)

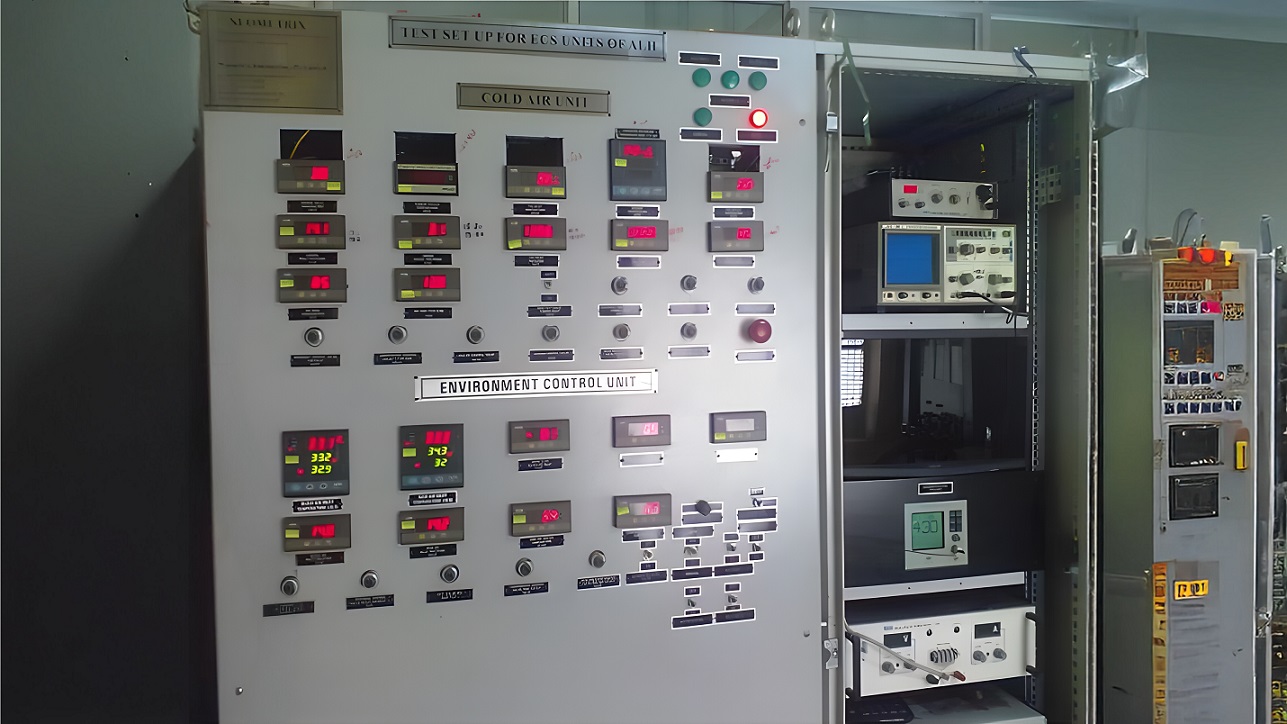

Control Panel

Analog + Digital with mimic display; PLC & HMI-based automation (optional)




Mobility

Trolley-Mounted Base with Lockable Industrial Casters




Electrical Supply

230V AC / 415V 3-Phase, 50 Hz (customizable)




Noise & Vibration

Acoustic insulation optional; shock-mounted design as standard




Safety Features

Emergency Stops, PRVs, Lockout/Tagout, Interlocks, Grounding




Compliance

ISO 9001, ISO 14001, ISO 45001, CE (on request), DGAQA support




Engineering Design and Construction
The entire platform is based on a solid engineering foundation:
• Heavy-Duty Structural Frame – Designed for vibration isolation and rigid support under full test load.
• High-Tolerance Adaptors – All interface flanges are machined within ±0.01 mm accuracy to ensure leak-tight and repeatable coupling with ECS units.
• All-Welded, Leak-Proof Assembly – Socket welding and TIG welding used for all air path components, with hydrostatic leak testing.
• Electro-Polished SS Surfaces – For cleanliness, corrosion resistance, and easy maintenance.

Instrumentation and Software Integration
• Real-Time Parameter Logging – DAQ integration enables automated test recording.
• Built-In Sensor Calibration Ports – For verifying the accuracy of in-line temperature and pressure sensors.
• Custom Report Generator – Automated test reports for QA/QC and traceability.
• Remote Monitoring Ready – With optional IoT dashboard integration.

Deliverables and Documentation
• Complete drawing package: 2D & 3D models, GA drawings, P&ID, fitting diagrams, and room layouts
• Operation and Maintenance Manual
• Electrical and Pneumatic Schematics
• Calibration Certificates and Testing Protocols
• Custom Adaptor Kits for various ECS models
• Optional installation support and onsite training

Proudly Engineered by Neometrix Group
The Neometrix Group is a recognized leader in advanced aerospace ground support systems, hydraulics, and test benches for mission-critical applications. With extensive experience across defense, civil aviation, and research sectors, the group brings unmatched quality, innovation, and regulatory familiarity.
All systems are designed, manufactured, and tested in India, and can be exported globally with CE marking and end-user-specific compliance documentation.

Custom-Built, Application-Specific Versions Available
Need a version optimized for altitude chamber testing? Want a transportable field-grade unit for forward MRO bases? Or looking to integrate Environmental Control System testing within your aircraft integration rig?
We offer complete customization services, from interface design to software integration, so your Environmental Control System Test Bench works exactly the way you need it to.
