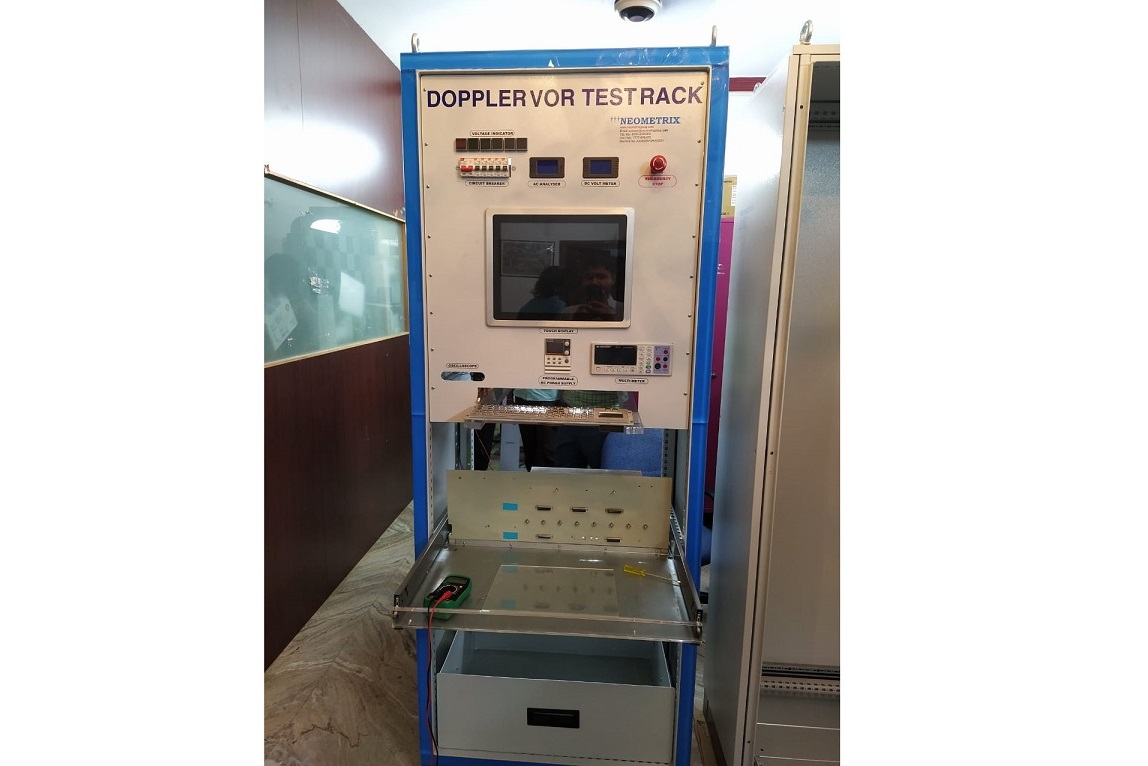

DOPPLER VOR TEST RACK

English DVOR test bench, DVOR tester, VOR maintenance equipment, Doppler VOR validation, avionics test bench, navigation beacon tester, DVOR module testing, rack-mount VOR tester, IP65 avionics tester, UPS-backed test system, high-precision VOR bench, automated DVOR testing, true-RMS multimeter bench, 200 MS/s oscilloscope tester, RF signal generator bench, 960–1250 MHz DVOR test, +8 dBm VOR output test, MIL-grade avionics test bench, Windows 10 IoT avionics tester, PDF report VOR testing, ICAO Annex 10 compliance tester, built-in BITE VOR bench, fault-isolation avionics test, modular expansion test bench, drag- and-drop test GUI German DVOR-Prüfbank, DVOR-Tester, VOR-Wartungsausrüstung, Doppler-VOR-Validierung, Avionik-Testbank, Navigationsbaken-Tester, DVOR-Modultest, Rack-Mount-VOR-Tester, IP65-Avionik-Tester, unterbrechungsfreie Prüfung, hochpräzise VOR-Bank, automatisierte DVOR-Prüfung, True-RMS-Multimeter-Bank, 200 MS/s-Oszilloskop-Tester, HF-Signal- Generator-Bank, 960–1250 MHz-DVOR-Test, +8 dBm-VOR-Ausgangstest, MIL-Grade- Avionik-Tester, Windows 10 IoT Avionik-Tester, PDF-Prüfbericht, ICAO Annex 10- Konformität, integrierte BITE-Prüfung, Fehlerortung-Testbank, modulare Erweiterung- Bank, Drag-and-Drop-Test-GUI French banc de test DVOR, testeur DVOR, équipement de maintenance VOR, validation Doppler- VOR, banc d’essai avionique, testeur de balise navigation, test module DVOR, testeur VOR en rack, testeur avionique IP65, alimentation sans coupure, banc VOR haute précision, test DVOR automatisé, banc multimètre True-RMS, oscilloscope 200 MS/s, générateur RF banc, test DVOR 960–1250 MHz, test sortie +8 dBm, banc avionique MIL-Grade, testeur avionique Windows 10 IoT, rapport PDF test VOR, conformité ICAO Annex 10, BITE intégré DVOR, isolation de défaut, banc extensible modulaire, GUI test par glisser-déposer Italian banco di prova DVOR, tester DVOR, attrezzatura manutenzione VOR, convalida Doppler- VOR, banco di prova avionico, tester balise navigazione, test modulo DVOR, tester VOR rack- mount, tester avionico IP65, alimentazione UPS, banco VOR alta precisione, test DVOR automatizzato, banco multimetro True-RMS, oscilloscopio 200 MS/s, generatore RF banco, test DVOR 960–1250 MHz, test uscita +8 dBm, banco avionico MIL-Grade, tester avionico Windows 10 IoT, rapporto PDF test VOR, conformità ICAO Annex 10, BITE integrato, isolamento guasti, banco espandibile modulare, GUI drag-and-drop Spanish banco de pruebas DVOR, probador DVOR, equipo mantenimiento VOR, validación Doppler- VOR, banco de pruebas aviónica, probador de baliza de navegación, prueba de módulo DVOR, probador VOR en rack, probador aviónica IP65, sistema UPS-respaldo, banco VOR alta precisión, prueba DVOR automatizada, banco multímetro True-RMS, osciloscopio 200 MS/s, generador de RF banco, prueba DVOR 960–1250 MHz, prueba salida +8 dBm, banco aviónico MIL-Grade, probador aviónica Windows 10 IoT, informe PDF prueba VOR, cumplimiento ICAO Annex 10, BITE integrado, aislamiento de fallos, banco modular expansible, GUI arrastrar-soltar Russian тестовый стенд DVOR, анализатор DVOR, оборудование для обслуживания VOR, валидация доплер-VOR, авиационный тест-бench, тестер навигационной радиомаяка, тест модуля DVOR, монтажный VOR-тестер, IP65 авиационный тестер, ИБП- резервирование, высокоточный VOR-стенд, автоматизированное тестирование DVOR, мультиметр True-RMS, осциллограф 200 MS/s, генератор ВЧ-сигналов, тест DVOR 960–1250 MHz, тест +8 dBm-выхода, MIL-Grade авиа-тестер, Windows 10 IoT авиа- тестер, PDF-отчет, соответствие ICAO Annex 10, встроенный BITE, локализация неисправностей, модульное расширение, GUI drag-and-drop Portuguese banco de teste DVOR, testador DVOR, equipamento manutenção VOR, validação Doppler- VOR, banco de testes aviônica, testador de baliza de navegação, teste de módulo DVOR, testador VOR rack-mount, testador aviônico IP65, UPS integrado, banco VOR alta precisão, teste DVOR automatizado, banco multímetro True-RMS, oscilóscopio 200 MS/s, gerador de RF banco, teste DVOR 960–1250 MHz, teste saída +8 dBm, banc-aviônica MIL-Grade, testador aviônico Windows 10 IoT, relatório PDF teste VOR, conformidade ICAO Annex 10, BITE integrado, isolamento de falhas, banco modular expansível, GUI arrastar-e soltar Chinese (简体中文) DVOR 测试台, DVOR 测试仪, VOR 维护设备, 多普勒 VOR 验证, 航电测试台, 导航信标测试仪, DVOR 模块测试, 机架式 VOR 测试仪, IP65 航电测试仪, UPS 备份系统, 高精度 VOR 测试台, 自动化 DVOR 测试, True-RMS 数字万用表台, 200 MS/s 示波器测试, 射频信号发生器台, 960–1250 MHz DVOR 测试, +8 dBm 输出测试, MIL-Grade 航电测试仪, Windows 10 IoT 测试仪, PDF 报告生成, ICAO Annex 10 标准, 内置 BITE 测试, 故障定位, 模块化扩展测试台, 拖放式测试 GUI Japanese (日本語) DVOR テストベンチ, DVOR テスター, VOR 保守機器, ドップラーVOR 検証, アビオニクステストベンチ, ナビゲーションビーコンテスター, DVOR モジュール試験, ラックマウント VOR テスター, IP65 対応テスター, UPS 搭載試験装置, 高精度 VOR ベンチ, 自動 DVOR 試験, True-RMS マルチメータベンチ, 200 MS/s オシロスコープ, RF 信号発生器ベンチ, 960–1250 MHz DVOR 試験, +8 dBm 出力試験, MIL-Grade アビオニクステスター, Windows 10 IoT 試験装置, PDF レポート生成, ICAO Annex 10 準拠, 内蔵 BITE 試験, 故障解析, モジュラー拡張, ドラッグ&ドロップ GUI Korean (한국어) DVOR 테스트 벤치, DVOR 테스터, VOR 유지보수 장비, 도플러 VOR 검증, 항공전자 테스트 벤치, 내비게이션 비콘 테스터, DVOR 모듈 테스트, 랙 마운트 VOR 테스터, IP65 항공전자 테스터, UPS 백업 시스템, 고정밀 VOR 벤치, 자동 DVOR 테스트, True-RMS 디지털 멀티미터, 200 MS/s 오실로스코프, RF 신호 발생기 벤치, 960–1250 MHz DVOR 테스트, +8 dBm 출력 테스트, MIL-Grade 항공전자 테스터, Windows 10 IoT 테스터, PDF 리포트 생성, ICAO Annex 10 준수, 내장 BITE 테스트, 결함 격리, 모듈형 확장, 드래그 앤 드롭 GUI (العᘭᗖᖁة) Arabic منصة اختبار الطيران الإلكتروني , ,VOR التحقق من دوبلر ,VOR معدات صيانة ,DVOR جهاز اختبار ,DVOR منصة اختبار UPS نظام 65,IP على الرف ,جهاز اختبار مقاوم للماء VOR جهاز اختبار ,DVOR جهاز اختبار منارة الملاحة ,اختبار وحدة مولد راسم الإشارة ,s/MS 200 ,RMS-True مؤتمت ,منصة الملتيميتر DVOR عالية الدقة ,اختبار VOR احتياطي ,منصة جهاز ,Grade-MIL جهاز اختبار طيران إلكتروني اختبار خرج + ,dBm 8 ,MHz 1250–960 DVOR اختبار ,RF إشارة مدمج ,تحديد الأعطال ,توسيع BITE اختبار 10, Annex ICAO مطابقة ,PDF إنشاء تقرير ,IoT 10 Windows اختبار وحدات ,واجهة سحب وإفلات Hindi (िहȽी) DVOR परीƗण बŐच, DVOR परीƗक, VOR रखरखाव उपकरण, डॉɘर VOR सȑापन, एिवयोिनƛ परीƗण बŐच, नेिवगेशन बीकन परीƗक, DVOR मॉǰूल परीƗण, रैक-माउंट VOR परीƗक, IP65 एिवयोिनƛ परीƗक, UPS बैकअप Ůणाली, उDŽ-पįरशुȠता VOR बŐच, sचािलत DVOR परीƗण, True-RMS िडिजटल मʐीमीटर, 200 MS/s ऑİxलोˋोप, RF िसưल जनरेटर बŐच, 960–1250 MHz DVOR परीƗण, +8 dBm आउटपुट परीƗण, MIL-Grade एिवयोिनƛ परीƗक, Windows 10 IoT परीƗण उपकरण, PDF įरपोटŊिनमाŊण, ICAO Annex 10 अनुपालन, िनिमŊत BITE परीƗण, दोष पृथsरण, मॉǰूलर िवˑार, डŌैग- एं ड-डŌॉप GUI Turkish (Türkçe) DVOR test tezgâhı, DVOR test cihazı, VOR bakım ekipmanı, Doppler VOR doğrulama, havacılık testi tezgâhı, navigasyon işaretçi test cihazı, DVOR modül testi, raf monteli VOR test cihazı, IP65 havacılık testi, UPS destekli sistem, yüksek hassasiyetli VOR tezgâhı, otomatik DVOR testi, True-RMS multimetre tezgâhı, 200 MS/s osiloskop, RF sinyal üreteci, 960–1250 MHz DVOR testi, +8 dBm çıkış testi, MIL-Grade havacılık test cihazı, Windows 10 IoT test cihazı, PDF rapor oluşturma, ICAO Annex 10 uyumluluk, entegre BITE testi, arıza tespiti, modüler genişletme, sürükle ve bırak GUI

Parameter	Specification
Frequency Range	960 MHz – 1250 MHz
RF Output Power	Up to +8 dBm max
DC Power Supply	0–30 V DC, 700 W programmable, adjustable slew rate, over-voltage/current protection
UPS Backup	20 minutes battery-backed operation
Enclosure Rating	IP65, weatherproof industrial cabinet with MIL-grade cabling & connectors
Industrial PC	Intel Core i5, 8 GB RAM, 256 GB SSD, Windows 10 IoT Enterprise
Display	15” capacitive multi-touch, anti-glare, IP65 front, 10-finger capacitive touch
Digital Multimeter	Panel-mounted True-RMS (voltage, current, resistance, frequency)
Oscilloscope	8-bit A/D, 2 channels, 200 MS/s, advanced trigger modes, USB 2.0
AC Power Analyzer	±0.1 % accuracy, measures mains quality, power factor, harmonics
Circuit Breaker	16 A manual/automatic protection
Operating Conditions	0 °C to 50 °C, up to 95 % non-condensing humidity
Dimensions (HxWxD)	2000 mm × 600 mm × 800 mm (standard 19” rack)
Weight	Approx. 250 kg (fully loaded)

The TB_DVOR is structured into three optimized subsystems: A. Control & HMI Unit ▹ 15′′ IP65-rated multi-touch LCD with anti-glare glass for clear read-outs under shop lighting. ▹ Backlit full-size keyboard and optical mouse for detailed setup and scripting. ▹ Industrial PC (Intel Core i5, 8 GB RAM, 256 GB SSD) running Windows 10 IoT Enterprise. ▹ Custom .NET GUI featuring drag-and-drop test configuration, multi-user accounts with audit logs, and real-time dashboards.

Details

1. Introduction
The DOPPLER VOR TEST RACK test bench is a specialized avionics workstation engineered to validate the performance, reliability, and functional integrity of Doppler VHF Omnidirectional Range (DVOR) navigation beacons and their subsystems. DVOR stations play a critical role in civil and military aviation by providing azimuth information—via the Doppler-modulated 30 Hz signals—to aircraft receivers, enabling accurate en-route navigation and instrument approaches.

2. Key Features
- Universal Module Coverage: Supports both intelligent modules (keyer/interface units, local status indicators) and slave modules (mains power supplies, pulse filters, RF combiners), encompassing over 15 distinct LRUs in one rack.
- Built-In BIT & Fault Isolation: Executes start-up self-diagnostics and guided fault-location routines, reducing mean-time-to-repair by up to 40%.
- Automated Test Sequencing & Reporting: Pre-configured scripts drive RF stimulation, DC power stress tests, and waveform captures; results auto-logged in a centralized database with instant PDF/printable report generation.
- Wideband RF Signal Generation: Covers 960 MHz–1250 MHz with ±0.1 MHz accuracy; power range up to +8 dBm, ensuring compliance with ICAO Annex 10 standards.
- High-Precision Instruments: True-RMS DMM (0.05% basic accuracy), 8-bit PC-based oscilloscope (200 MS/s), AC power analyzer (±0.1%), and programmable DC supply (0–30V, 700 W) for measurement traceability.
- Rugged Design & Power Resilience: MIL-grade cabling, IP65-rated enclosure, anti-glare touch display, and 20-minute UPS backup.

3. Applications
The TB_DVOR is structured into three optimized subsystems:
A. Control & HMI Unit
▹ 15′′ IP65-rated multi-touch LCD with anti-glare glass for clear read-outs under shop lighting.
▹ Backlit full-size keyboard and optical mouse for detailed setup and scripting.
▹ Industrial PC (Intel Core i5, 8 GB RAM, 256 GB SSD) running Windows 10 IoT Enterprise.
▹ Custom .NET GUI featuring drag-and-drop test configuration, multi-user accounts with audit logs, and real-time dashboards.

B. Instrumentation Rack
▹ RF Signal Generator: High-stability synthesizer with Doppler emulation profiles for full azimuth sweep testing.

Measurement Suite:
▹ True-RMS DMM for voltage, current, resistance, and frequency.
▹ PC-attached oscilloscope (200 MS/s) with advanced triggers, FFT analysis, and waveform saving.
▹ AC power analyzer for mains quality, power factor, and harmonic distortion checks.

Power Modules:
▹ 0–30 V, 700 W programmable DC supply with slew-rate control and protection circuits.
▹ Isolated AC mains input with EMI/RFI filters, surge protection, and automatic voltage regulation.
▹ Connectivity & Expansion: Modular backplane supporting GPIB, LXI, and Ethernet I/O cards for future protocol integration.

C. Safety & Diagnostics
▹ Emergency-stop button with hardware interlock to immediately kill outputs.
▹ Tri-color tower light and audio alarms for clear pass/fail/fault indications.
▹ Fold-down maintenance panel granting quick access to wiring looms, test points, and calibration ports without moving the whole cabinet.
▹ Embedded health monitoring logging temperature, fan speed, and UPS status for preventive maintenance.
Built to CE and MIL-STD-810 shock/vibration standards for reliable shop-floor operation.

Technical specifications

Parameter
Specification

Frequency Range
960 MHz – 1250 MHz

RF Output Power
Up to +8 dBm max

DC Power Supply
0–30 V DC, 700 W programmable, adjustable slew rate, over-voltage/current protection

UPS Backup
20 minutes battery-backed operation

Enclosure Rating
IP65, weatherproof industrial cabinet with MIL-grade cabling & connectors

Industrial PC
Intel Core i5, 8 GB RAM, 256 GB SSD, Windows 10 IoT Enterprise

Display
15” capacitive multi-touch, anti-glare, IP65 front, 10-finger capacitive touch

Digital Multimeter
Panel-mounted True-RMS (voltage, current, resistance, frequency)

Oscilloscope
8-bit A/D, 2 channels, 200 MS/s, advanced trigger modes, USB 2.0

AC Power Analyzer
±0.1 % accuracy, measures mains quality, power factor, harmonics

Circuit Breaker
16 A manual/automatic protection

Operating Conditions
0 °C to 50 °C, up to 95 % non-condensing humidity

Dimensions (HxWxD)
2000 mm × 600 mm × 800 mm (standard 19” rack)

Weight
Approx. 250 kg (fully loaded)

4. Principle of Operation
▹ Initialization & BITE: On power-up, built-in test equipment runs self-checks across power, signal, and communication lines.
▹ Module Selection & Configuration: Operator selects SRU profile via GUI; system auto-loads stimulus and measurement parameters.
▹ Doppler Sweep & Measurement: RF generator emulates rotating antenna; oscilloscope and multimeter capture data to compute azimuth accuracy.
▹ Tolerance Comparison & Fault Flagging: Real-time readings compared against tolerances; out-of-spec points trigger alarms.
▹ Report Compilation: Data logs, waveform snapshots, and summaries compiled into standardized test reports.

5. Workflow & Test Procedure
▹ Pre-Test Setup: Inspect and connect UUT via MIL-grade connectors; verify UPS and mains input quality.
▹ Software Configuration: Select module type, test script, and environmental parameters.
▹ Automated Execution: Launch test sequence; system applies RF, DC, and monitors safety interlocks.
▹ Real-Time Monitoring: Live graphs for amplitude vs. time, phase vs. azimuth, and power stability with immediate threshold alerts.
▹ Post-Test Actions: Review and archive the report; disconnect UUT and record maintenance notes.

6. Calibration & Maintenance
▹ Traceable Calibration: Annual calibration of DMM, oscilloscope, and RF generator against national standards (ISO/IEC 17025).
▹ Quick-Access Maintenance: Fold-down backdoor panel offers direct access to wiring and test points, minimizing downtime.
▹ Software Updates & Extensions: Remote firmware and GUI updates supported; new script packages can be installed without hardware changes.
▹ Environmental Checks: Regular inspection of rack seals, fan filters, and UPS battery health for long-term reliability.

7. Conclusion
By combining comprehensive DVOR module coverage, automated BIT routines, precision instrumentation, and an intuitive HMI, the TB_DVOR delivers a future-proof platform for avionics maintenance and certification labs. Its modular architecture, robust design, and compliance with international navigation standards make it indispensable for ensuring flight-critical navigation aids remain within stringent performance thresholds.
