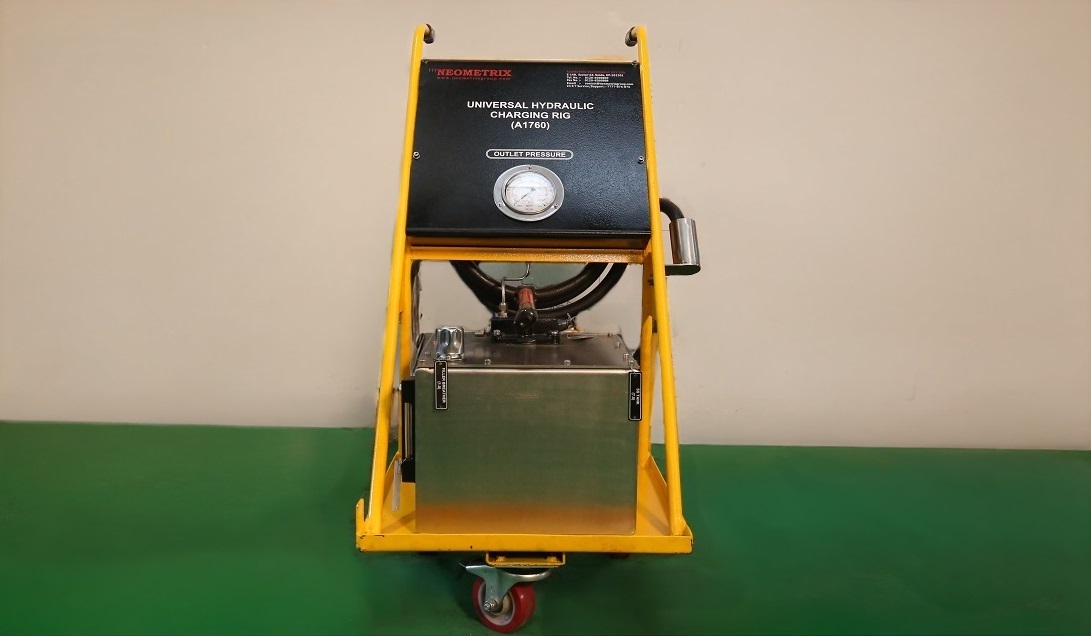

Universal hydraulic charging rig” is used to replenish the hydraulic system in the fighter aircraft (Su-30, Mig-21 & Mig-29) with the hydraulic oil. The system will supply the oil to the aircraft at working pressure of 25kg/cm2 and flow rate will be 49cc/stroke. The filtered oil through filter will go to the aircraft by the hydraulic hose. The system consists of 25 ltrs. SS tank with the hydraulic hand pump mounted on the tank, Filler breather, Level indicator and hydraulic filter and hydraulic hose with two universal hydraulic adaptors.

Image Gallery

Technical Details

  • Working fluid: Hydraulic oil OM-15
  • Working temperature: Ambient temperature
  • Working pressure: 25kg/cm2
  • Length of hydraulic hose: 5 mtrs. of hydraulic hose of 13mm OD
  • Filter rating : 3 microns
  • Storage tank: 25 ltrs.
  • Storage tank material : Stainless steel (SS 304)
  • pump : hydraulic hand pump with pressure range of (0-100 kg/cm2).

Key Features

  • Filler Breather.
  • Level indicator.
  • Hydraulic hand pump.
  • Pressure gauge.
  • Hydraulic oil filter.
  • Universal adaptor.
