Document Reference: T-PED-ATP-A2046-REV01 ▹ System Model: TB_TACAN ▹ Modules Covered: • 12 Intelligent Modules (Transponder, LP/HPA, Keyer, Monitor, Receiver, Antenna Control) • 13 Passive Components (Power Supplies, Modem, Fan, Couplers, Filters, Detectors, ▹ Splitters, Combiners, Breakers, Backplanes, Status Panel) ▹ Data Interfaces: CAN 2.0B, USB 2.0, RS-232/485, Gigabit Ethernet ▹ RF Path: Quick-connect looms rated to 18 GHz with ≤0.5 dB insertion loss ▹ Power: 208–240 VAC input; regulated ±5 V, ±12 V, +28 V output rails ▹ Enclosure: 19′′ rack, 12 U height, 600 mm depth; forced-air, filtered cooling; EMI shielding ▹ Environmental: Operating 0–45 °C, 10–90 % RH; storage −20 °C to +70 °C ▹ Compliance: DGAQA Aeronautical Quality Assurance; IEC 61010-1; ANSI CAT II electrical safety
▹ Factory Acceptance Testing: Comprehensive validation of each TACAN module prior to shipment. ▹ Pre-Delivery Verification: Early identification of non-conformities to prevent installation delays. ▹ Operator Training & Certification: Standardized environment for hands-on qualification of maintenance and service personnel. ▹ Defense Navigation QA: Ensures bearing accuracy and signal stability for aircraft guidance systems. ▹ OEM Build Verification: Batch certification to reduce return rates and warranty costs. ▹ Regression Testing: Re-verifies module performance following firmware or software updates. ▹ EMI/EMC Compliance Checks: Pre-test screening against electromagnetic compatibility standards. ▹ Refurbishment Quality Control: Certification of overhauled or repaired units in service centers.
and we will get back to you.
Thank You!
Your enquiry has been received, We will get back to you shortly.

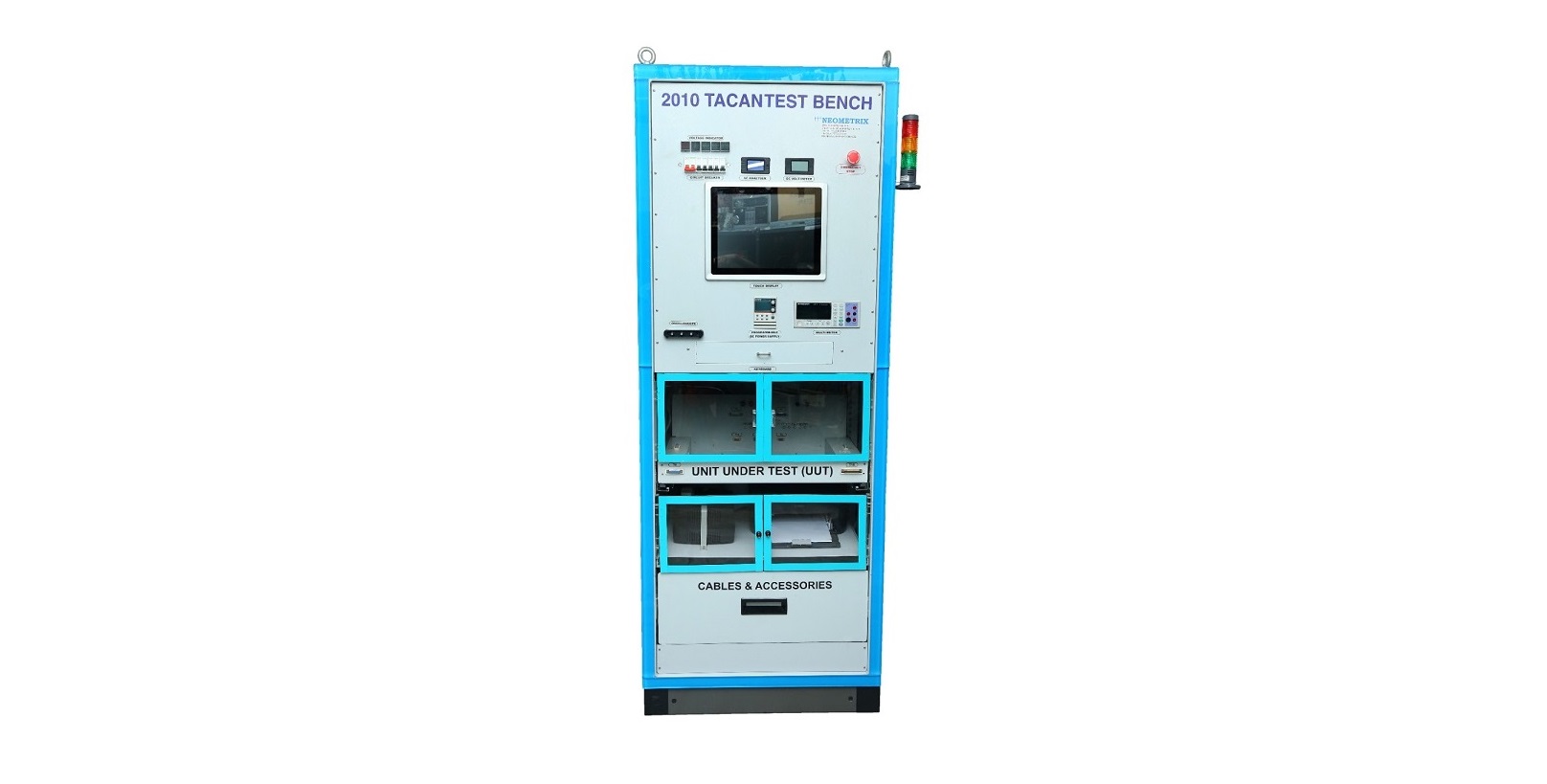

Introduction The TB TACAN Unit Test Bench is a fully integrated, turnkey Factory Acceptance Testing (FAT) solution engineered by Neometrix Engineering for Moog Fernau’s TACAN 2010 “I-Level” navigation equipment. Replacing manual, error-prone procedures with automated, repeatable workflows, it validates all 25 functional modules—both intelligent μC-based units and passive RF components—against rigorous MIL-STD and IEC performance thresholds. This ensures rapid on-site commissioning, minimizes costly field rework, and provides complete traceability of test records for defense and aerospace customers. Key Features ▹ Distributed μC Nodes in each module for localized data acquisition (voltage, current, RF power) ▹ High-Speed CAN-Bus communication at 1 Mbps for deterministic, low-latency control ▹ Quick-Connect RF/Power Looms (J1–J7) enabling tool-free fixture swaps and hot-swap capability ▹ Automated, Sequenced Test Scripts with built-in pass/fail logic and conditional branching ▹ Hot-Swappable Fixture Modules for rapid turnaround between module tests ▹ Remote Firmware Updates over secure Ethernet, minimizing bench downtime ▹ Integrated EMI/EMC Pre-Compliance Checks to catch potential electromagnetic issues early ▹ Throughput Optimization via parallel test lanes and multi-threaded execution Applications ▹ Factory Acceptance Testing: Comprehensive validation of each TACAN module prior to shipment. ▹ Pre-Delivery Verification: Early identification of non-conformities to prevent installation delays. ▹ Operator Training & Certification: Standardized environment for hands-on qualification of maintenance and service personnel. ▹ Defense Navigation QA: Ensures bearing accuracy and signal stability for aircraft guidance systems. ▹ OEM Build Verification: Batch certification to reduce return rates and warranty costs. ▹ Regression Testing: Re-verifies module performance following firmware or software updates. ▹ EMI/EMC Compliance Checks: Pre-test screening against electromagnetic compatibility standards. ▹ Refurbishment Quality Control: Certification of overhauled or repaired units in service centers. Technical Specification Document Reference: T-PED-ATP-A2046-REV01 ▹ System Model: TB_TACAN ▹ Modules Covered: • 12 Intelligent Modules (Transponder, LP/HPA, Keyer, Monitor, Receiver, Antenna Control) • 13 Passive Components (Power Supplies, Modem, Fan, Couplers, Filters, Detectors, ▹ Splitters, Combiners, Breakers, Backplanes, Status Panel) ▹ Data Interfaces: CAN 2.0B, USB 2.0, RS-232/485, Gigabit Ethernet ▹ RF Path: Quick-connect looms rated to 18 GHz with ≤0.5 dB insertion loss ▹ Power: 208–240 VAC input; regulated ±5 V, ±12 V, +28 V output rails ▹ Enclosure: 19′′ rack, 12 U height, 600 mm depth; forced-air, filtered cooling; EMI shielding ▹ Environmental: Operating 0–45 °C, 10–90 % RH; storage −20 °C to +70 °C ▹ Compliance: DGAQA Aeronautical Quality Assurance; IEC 61010-1; ANSI CAT II electrical safety System Architecture A central ATE controller (rugged industrial PC) orchestrates tests via: • Node Microcontrollers: ARM-class μCs embedded in intelligent modules for low-level measurements and health monitoring. • CAN-Bus Network: Bi-directional communication reduces centralized wiring and supports real-time control. • Quick-Connect Looms (J1–J7): Parallel RF/DC routing to passive modules, enabling hot-swap without rewiring. • HMI Panel: 21′′ touchscreen for drag-and-drop fixture configuration, sequence editing, and live dashboards. Principle of Operation 1. Boot & Self-Test: Controller verifies node firmware versions, performs built-in self-tests on μCs, and checks RF continuity. 2. Fixture Configuration: Operator selects the module under test; software activates relays and configures RF/power paths. 3. Stimulus Application: Precision RF sources sweep 962 ± 80 MHz at −30 dBm to +30 dBm; DC loads and TTL controls emulate operational conditions. 4. Data Acquisition: μC ADCs capture amplitude, phase, and VSWR with 1 μs timestamp resolution. 5. Pass/Fail Analysis: Measurements are compared against tolerance bands (±0.5 dB power, ±1 % VSWR); out-of-bounds results trigger retests or flag for inspection. Workflow & Test Procedure 1. Setup Verification: Confirm calibration status; run continuity check on looms. 2. Detector Module Test: Connect J1/J2 looms, apply 970 MHz @ −10 dBm, verify DC detector output (1.2–1.4 V). 3. Amplifier Chain Validation: Sequentially power LPA then HPA; measure gain flatness (±0.5 dB) and harmonic suppression (≥60 dBc). 4. Interface & Keyer Checks: Emulate 270 Hz keying pulses; verify timing accuracy (±5 μs). 5. End-to-End Functional Test: Loopback transponder interrogation and response; confirm decoded bearing/range data. 6. Final Reporting: Auto-generate FAT report with operator and QA manager signature fields. Software Interface • Drag-and-Drop Sequencer: Build or edit test flows without coding. • Real-Time Dashboards: Multi-channel plots of RF parameters and error vector magnitude. • Context-Sensitive Help: Integrated reference to MIL-STD-1760 and DO-160 procedures. • Secure Data Management: Role-based access, SHA-256 report hashing, and optional encrypted backups. Calibration • Automated Routines: Utilize internal 10 MHz OCXO and 0 dB RF coupler to recalibrate ADCs, DACs, and temperature sensors. • Traceability: Logs include date, technician ID, and reference standard serial numbers. • Certificate Generation: ISO 17025-style PDF certificate appended to the FAT package. Maintenance • Preventive Schedule: - Monthly: Airflow filter checks, loom retention tests, self-test run. - Quarterly: Software patches, relay contact resistance verification (<50 mΩ), calibration drift checks (<±0.1 %). • ESD Controls: - Wrist-strap continuity, ionizer audits, antistatic flooring to protect μC modules. • Field-Replaceable Units: - Snap-in power supplies, fan assemblies, and RF couplers enable <30 min swap-out. • Spare Kits: Optional pre-terminated looms, adapters, and quick-reference guides for rapid on-site repair. Conclusion The TB TACAN Unit Test Bench merges modular hardware, distributed intelligence, and sophisticated automation to deliver a best-in-class FAT solution for TACAN “I-Level” systems. Its comprehensive reporting, industry-compliant procedures, and scalable design empower OEMs and defense operators to certify navigation equipment with confidence—minimizing deployment risk, reducing time-to-mission, and ensuring long-term operational reliability.
