Automated Inverter Test Rig On Labview Environment

English inverter test bench, automated inverter testing, LabVIEW inverter test system, PXI inverter test bench, power electronics test rig, DC AC converter tester, inverter performance validation, THD measurement bench, efficiency test system, protection threshold testing, UPS inverter test rig, inverter QA system, inverter R&D bench, SQL data logging test bench, calibration alert inverter tester, modular test sequencer, adaptive load control bench, industrial PC inverter testing, power analyzer inverter test, inverter test automation German Wechselrichter-Prüfstand, automatisierte Wechselrichterprüfung, LabVIEW Wechselrichter-Testsystem, PXI Wechselrichter-Prüfstand, Leistungselektronik-Prüfbank, Gleichstrom-Wechselstrom-Tester, Wechselrichter-Leistungsvalidierung, THD- Messungsbank, Effizienzprüfstand, Schutzschwellenprüfung, USV-Prüfstand, Wechselrichter-QS-System, Wechselrichter-F&E-Prüfbank, SQL- Datenprotokollierungsprüfstand, Kalibrierungsalarm-Tester, modularer Testsequencer, adaptive Laststeuerung, Industrie-PC-Wechselrichtertest, Leistungsmessprüfstand, Prüfstandsautomatisierung French banc d’essai onduleur, test onduleur automatisé, système de test onduleur LabVIEW, banc d’essai onduleur PXI, banc d’essai électronique de puissance, testeur convertisseur CC-CA, validation performance onduleur, banc de mesure THD, système test efficacité, testseuils protection, banc essai UPS, système QA onduleur, banc R&D onduleur, journalisation SQL banc, alerte étalonnage, séquenceur de test modulaire, commande de charge adaptative, PC industriel test onduleur, analyseur de puissance onduleur, automatisation test onduleur Italian banco prova inverter, test inverter automatico, sistema test inverter LabVIEW, banco prova inverter PXI, banco prova elettronica di potenza, tester convertitore CC-CC, convalida prestazioni inverter, banco misura THD, sistema test efficienza, test soglie protezione, banco prova UPS, sistema QA inverter, banco R&S inverter, registrazione dati SQL, avviso calibrazione, sequencer di test modulare, controllo carico adattivo, PC industriale test inverter, analizzatore potenza inverter, automazione test inverter Spanish banco de pruebas inversor, prueba inversor automatizada, sistema de prueba inversor LabVIEW, banco de pruebas inversor PXI, banco de pruebas electrónica de potencia, probador conversor CC-CA, validación rendimiento inversor, banco medición THD, sistema prueba eficiencia, prueba umbrales protección, banco UPS, sistema QA inversor, banco I+D inversor, registro datos SQL, alerta calibración, secuenciador de pruebas modular, control de carga adaptativo, PC industrial prueba inversor, analizador de potencia inversor, automatización prueba inversor Russian испытательный стенд инвертора, автоматизированное тестирование инвертора, система тестирования инвертора LabVIEW, PXI стенд инвертора, испытания силовой электроники, тестер преобразователя DC-AC, проверка характеристик инвертора, стенд измерения THD, система тестирования КПД, тест порогов защиты, стенд АБП, система QA инвертора, R&D стенд инвертора, запись данных SQL, напоминание о калибровке, модульный секвенсор тестов, адаптивное управление нагрузкой, промышленный ПК тестирования инвертора, анализатор мощности инвертора, автоматизация тестирования Portuguese banco de teste inversor, teste de inversor automatizado, sistema de teste LabVIEW para inversor, banco de teste PXI para inversor, bancada de eletrônica de potência, testador conversor CC-CA, validação de desempenho do inversor, bancada de medição THD, sistema de teste de eficiência, teste de limiares de proteção, banco de UPS, sistema QA de inversor, bancada P&D de inversor, registro de dados SQL, alerta de calibração, sequenciador de testes modular, controle de carga adaptativo, PC industrial para teste de inversor, analisador de potência, automação de teste de inversor Chinese 逆变器测试台, 自动化逆变器测试, LabVIEW 逆变器测试系统, PXI 逆变器测试台, 功率电子测试台, 直流交流转换器测试仪, 逆变器性能验证, 总谐波失真测量台, 效率测试系统, 保护阈值测试, 不间断电源测试台, 逆变器质量保证系统, 逆变器研发台, SQL 数据记录测试台, 校准提醒测试仪, 模块化测试序列器, 自适应负载控制台, 工业 PC 逆变器测试, 功率分析仪逆变测试, 逆变器测试自动化 Japanese インバータ試験装置, 自動インバータテスト, LabVIEW インバーターテストシステム, PXI インバータ試験機, パワーエレクトロニクス試験台, DC-AC コンバータテスター, インバータ性能検証, THD 測定台, 効率テストシステム, 保護閾値試験, UPS 試験装置, インバータ QA システム, インバータ R&D 試験台, SQL データロギング試験台, 校正アラートテスター, モジュラーテストシーケンサ, 適応負荷制御装置, 産業用 PC インバータ試験, 電力解析インバーターテスト, インバータテスト自動化 Korean 인버터 시험대, 자동 인버터 테스트, LabVIEW 인버터 테스트 시스템, PXI 인버터 시험대, 전력 전자 테스트, DC-AC 변환기 테스터, 인버터 성능 검증, THD 측정대, 효율 테스트 시스템, 보호 임계값 테스트, UPS 시험대, 인버터 QA 시스템, 인버터 R&D 시험대, SQL 데이터 로깅 시험대, 교정 알림 테스터, 모듈식 테스트 시퀀서, 적응형 부하 제어대, 산업용 PC 인버터 테스트, 전력 분석기 인버터 테스트, 인버터 자동화 테스트 Arabic جهاز اختبار ,PXI حامل اختبار الانفرتر ,LabVIEW حامل اختبار الانفرتر ,اختبار الانفرتر الآلي ,نظام اختبار الانفرتر نظام اختبار الكفاءة ,اختبار عتبات ,THD تحقق أداء الانفرتر ,حامل قياس ,AC-DC إلكترونيات الطاقة ,مختبر اختبار محول تنبيه المعايرة , ,SQL نظام ضمان جودة الانفرتر ,حامل بحث وتطوير الانفرتر ,تسجيل بيانات ,UPS الحماية ,حامل اختبار متسلسل اختبار معياري ,تحكم حمل متكيف ,اختبار الانفرتر بالحاسوب الصناعي ,اختبار الانفرتر بجهاز تحليل الطاقة ,أتمتة اختبار الانفرتر Hindi इɋटŊर परीƗण बŐच, sचािलत इɋटŊर परीƗण, LabVIEW इɋटŊर परीƗण Ůणाली, PXI इɋटŊर परीƗण बŐच, पावर इलेƃŌॉिनƛ परीƗण, डीसी-एसी कनवटŊर टेːर, इɋटŊर ŮदशŊन सȑापन, THD माप बŐच, दƗता परीƗण िसːम, सुरƗा सीमा परीƗण, यूपीएस परीƗण बŐच, इɋटŊर QA िसːम, इɋटŊर R&D बŐच, SQL डेटा लॉिगंग बŐच, कै िलŰेशन अलटŊटेːर, मॉǰूलर टेː सीƓŐसर, अनुकू िलत लोड िनयंũण बŐच, औȨोिगक पीसी इɋटŊर परीƗण, पावर एनालाइजर इɋटŊर परीƗण, इɋटŊर परीƗण sचालन Turkish inverter test tezgahı, otomatik inverter testi, LabVIEW inverter test sistemi, PXI inverter test tezgahı, güç elektroniği test tezgahı, DC-AC dönüştürücü test cihazı, inverter performans doğrulama, THD ölçüm tezgahı, verimlilik test sistemi, koruma eşik testi, UPS test tezgahı, inverter QA sistemi, inverter Ar-Ge tezgahı, SQL veri kaydı tezgahı, kalibrasyon uyarısı testi, modüler test sıralayıcı, uyarlanabilir yük kontrol tezgahı, endüstriyel PC inverter testi, güç analizörü inverter testi, inverter test otomasyonu

Parameter	Details
DC Input Voltage	0–50 V programmable; precision ±0.01 V via NI PXI-4110 supply
AC Output Voltage & Frequency	0–300 VAC, 45–65 Hz; measured with ±0.1% accuracy
Load Control	0–100% resistive (P.F. >0.98), inductive (P.F.≥0.8), capacitive; switching <10 ms
Current Measurement	Up to 30 A per channel; isolated Hall-effect transducers
Efficiency & THD	IEC 61000-3-2 compliance; THD measured across 2–50 kHz; efficiency at varied loads
Protection Tests	Over/Under-Voltage, Over/Under-Frequency, Short-Circuit, Overload trip times
Transfer Time	<1 ms resolution; max load 25% for UPS-to-mains transfer
Data Logging	SQL Server backend; raw datapoint storage at up to 1 M samples/s
Communication Interfaces	Ethernet, RS-232, USB; OPC UA compatible
Software Platform	LabVIEW 2024 Q3; Windows 10/11; optional remote web dashboard
Report Formats	PDF, CSV, XML; auto-email capability

Manufacturing QA/QC, R&D Characterization, Field Service & Maintenance, Certification & Compliance, and Automotive & Industrial end-of-line testing. The bench ensures batch consistency, compliance with industry standards, rapid prototype validation, on-site health checks, and streamlined certification processes.

Details

Introduction
Modern power electronics demand rigorous, repeatable validation to guarantee inverter reliability, efficiency, and compliance with industry standards. The Automated Inverter Test Bench builds upon the core LabVIEW®-based framework to deliver a turnkey solution that streamlines over 140 distinct tests—spanning DC/AC performance, protection thresholds, dynamic response, and power quality metrics—into a single, tightly orchestrated workflow. By leveraging graphical “G” programming, integrated NI hardware, and SQL-backed data management, the system transforms what traditionally required hours of manual intervention into a rapid, error-resistant process.

Key Features
▹ Modular Test Sequencer: LabVIEW logic checks 146 parameters with prompts and auto pass/fail decisions.
▹ High-Speed Data Acquisition: PXI & CompactDAQ sample at 1 MS/s to capture microsecond transients.
▹ Adaptive Load Control: 4–20 mA-driven loads switch from no-load to full-load without rewiring.
▹ Role-Based User Management: Tiered access with encryption, permissions, and audit logs.
▹ Automated Calibration Tracking: Alerts per ISO 17025; locks tests until calibration is valid.
▹ Flexible Limit Configuration: Limits editable by model or serial number for fast test updates.
▹ Comprehensive Reporting: Exports PDF/CSV with graphs, results, waveforms, and full traceability.

Applications
Manufacturing QA/QC, R&D Characterization, Field Service & Maintenance, Certification & Compliance, and Automotive & Industrial end-of-line testing. The bench ensures batch consistency, compliance with industry standards, rapid prototype validation, on-site health checks, and streamlined certification processes.

Technical Specifications

Parameter
Details

DC Input Voltage
0–50 V programmable; precision ±0.01 V via NI PXI-4110 supply

AC Output Voltage & Frequency
0–300 VAC, 45–65 Hz; measured with ±0.1% accuracy

Load Control
0–100% resistive (P.F. >0.98), inductive (P.F.≥0.8), capacitive; switching <10 ms

Current Measurement
Up to 30 A per channel; isolated Hall-effect transducers

Efficiency & THD
IEC 61000-3-2 compliance; THD measured across 2–50 kHz; efficiency at varied loads

Protection Tests
Over/Under-Voltage, Over/Under-Frequency, Short-Circuit, Overload trip times

Transfer Time
<1 ms resolution; max load 25% for UPS-to-mains transfer

Data Logging
SQL Server backend; raw datapoint storage at up to 1 M samples/s

Communication Interfaces
Ethernet, RS-232, USB; OPC UA compatible

Software Platform
LabVIEW 2024 Q3; Windows 10/11; optional remote web dashboard

Report Formats
PDF, CSV, XML; auto-email capability

System Architecture
- Industrial PC & HMI: Windows® workstation with touchscreen running LabVIEW core.
- PXI Chassis & Modules: NI PXI-1045 chassis with PXI-4110, PXI-4071, PXI-6229, PXI-8536 modules.
- Power Analyzer: Third-party analyzer (e.g., EY Qalibre) via IEEE 488 and LXI.

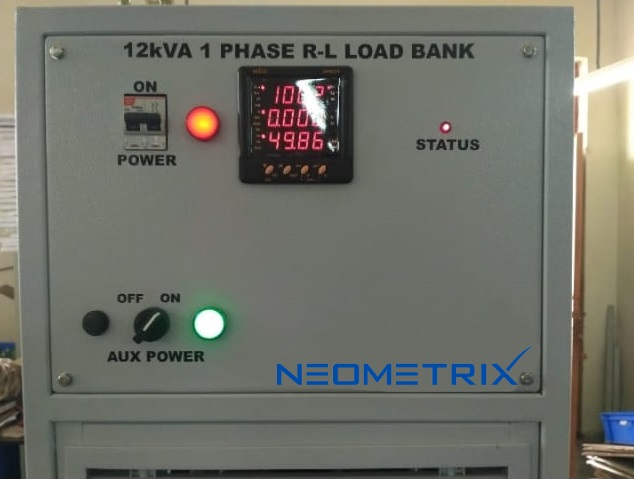

- Electronic Load Bank: PLC-controlled resistive/inductive banks with safety interlocks.
- I/O & Switching: Solid-state relays and contactors; integrated emergency-stop.

Principle of Operation
The test bench operates via a LabVIEW state-machine: initialization (self-tests and calibration checks), parameter sequencing (instrument settings, data capture, limit validation), operator interaction (setup prompts), error handling (fault detection and retries), and automated report generation (PDF summary with graphs).

Workflow & Test Procedure
- User Login → Role-based dashboard
- Test Selection → Proβile or CSV import
- Pre-Check → Calibration and safety veriβications
- Automated Execution → Sequential test nodes with real-time visualization
- Review & Sign-off → Digital signature capture
- Archival → SQL database storage and network backup
- Notification → Email summary to QA manager

Software Interface
- Dashboard: Real-time KPIs and calibration alerts.
- Test Console: Live waveform plots and operator controls.
- Configuration Panel: Editable test sequences and limit tables.
- Report Manager: Search, bulk export, and auto-email setup.
- Remote Access: Secure web-based status and report viewer.

Calibration & Maintenance
Instrument registry auto-imported from NI MAX, tracking serials and calibration dates.
Alarm engine issues email/pop-up alerts 7 days before due. Maintenance logs capture tasks and attach certificates. Service mode allows maintenance with audit logging.

Conclusion
By consolidating manual procedures into an automated, LabVIEW-centric framework, the Neometrix Automated Inverter Test Bench achieves consistent, standards-compliant results while drastically reducing test times. This translates to improved manufacturing yield, accelerated R&D cycles, and faster certification turnaround, delivering clear ROI in diverse power electronics applications.
