Introduction
Rail brake calipers are safety-critical actuators. They must generate the required clamp force on demand, hold that force without pressure decay, and release cleanly so the vehicle can return to service without drag. Small defects—internal seal bypass, micro-leaks, trapped air, sticking pistons, inconsistent force build-up, or slow release—can cascade into uneven braking, overheating, accelerated pad/disc wear, wheel flats, nuisance trips, and reduced braking margin across an entire trainset. In maintenance environments, the risk is not only failure in service; it’s also the risk of “passing” a unit based on subjective checks rather than measured performance.

The Friction Brake Test Bench eliminates that uncertainty by providing a controlled, instrumented, and repeatable platform for validating brake calipers in a workshop or depot environment. It combines a rigid guarded test frame, an integrated hydraulic power module, precision pressure and force measurement, and software-driven automation to deliver traceable pass/fail results with recorded test data and professional reports. The result is a standardized testing workflow that improves safety, increases consistency between operators, and reduces rework and warranty risk.

What the bench is designed to test
1) Pressure integrity and leak-tightness (static hold tests)
Leakage in brake calipers is not always obvious. External leaks may be visible, but internal leakage (seal bypass) can quietly reduce effective clamp force and cause pressure decay during holds. The bench supports structured leak-tightness verification through:
• Pressure ramp to setpoint (single-point or multi-step)
• Stabilization window (to allow temperature/elastic effects to settle)
• Timed pressure hold with measurable criteria (pressure decay rate, allowable drop, or pass/fail band)
• Repeatable hold sequences at multiple pressure levels to expose non-linear leakage behavior

2) Verified pressure at the unit under test (UUT)
Relying on pump settings or upstream gauges can hide line losses, trapped air, or valve behavior. The system measures true caliper pressure using transducers so the test reflects the actual hydraulic condition at the caliper.

3) True clamp / reaction force output (force verification)
A caliper can “reach pressure” and still fail to produce the required clamp force due to friction, misassembly, piston/seal issues, or mechanical binding. The bench measures force using a high-capacity load measurement chain aligned with the piston force path. This enables:
• Force vs pressure characterization (expected slope and output at defined pressures)
• Detection of hysteresis between apply and release
• Identification of breakaway anomalies (sticky/stiction behavior)
• Verification that clamp force meets acceptance thresholds under controlled conditions

4) Apply/release behavior and dynamic response
Beyond static holds, real braking involves transitions. The bench can execute controlled sequences to evaluate:
• Apply time and force build-up profile
• Release behavior (including residual force/drag indication)
• Repeatability across cycles (useful for diagnosing intermittent faults)
• Optional accelerated cycling routines (for process checks or fault reproduction)

5) Bleeding and air-management support
Entrapped air can make a caliper appear “soft,” distort force readings, and create inconsistent results. The bench includes a controlled bleeding workflow (manual-assisted or software-guided) so the test starts from a known, repeatable hydraulic condition.

Caliper types supported
Hydraulically applied calipers
• Controlled pressurization to defined setpoints
• Pressure-hold leak verification
• Clamp force verification at specified pressures
• Apply/release functional checks

Spring-applied / hydraulically released (fail-safe) calipers
Fail-safe designs require pressure to release the brake; loss of pressure applies it automatically. The bench supports test routines to confirm:
• Correct release behavior at defined release pressures
• Pressure stability during release holds
• Proper return/retraction characteristics (drag/no-drag assessment)
• Repeatable function across cycles

System architecture (built for workshop reliability)

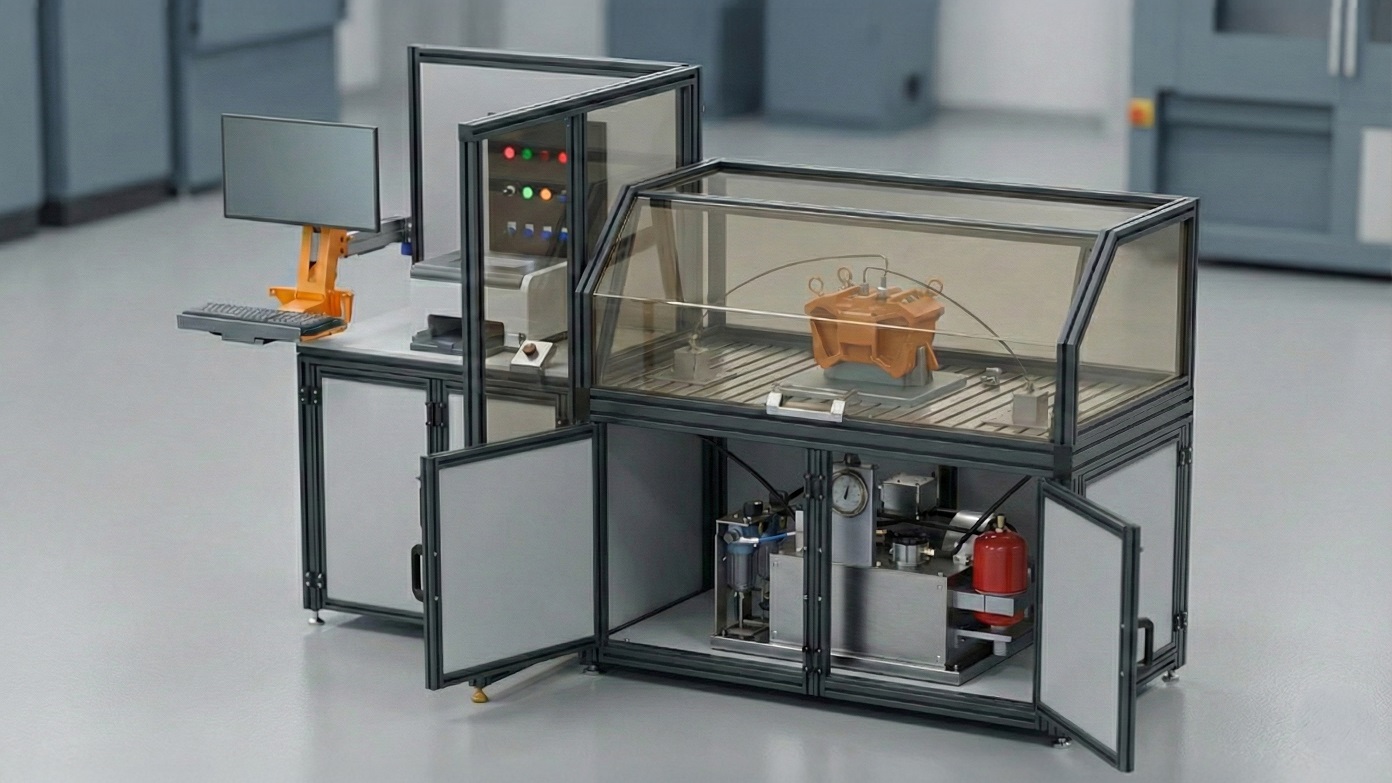

A) Guarded mechanical test station
• Rigid test frame to manage repeated high-force loading
• Transparent guarding for visibility with operator protection
• Drip containment and easy-clean surfaces for depot practicality
• Ergonomic fixture height and access for safe handling

B) Integrated hydraulic power module (wet side)
• Adjustable pressure control across the required operating envelope
• Controlled low-flow pressurization for stable holds and smooth transitions
• Over-pressure protection and safe depressurization strategy
• Accumulator integration (where required) to support dynamic routines and rapid cycling
• Filtration and contamination control suitable for precision hydraulic components

C) Instrumentation and sensing
• Pressure transducers for accurate UUT pressure capture
• High-capacity force sensing (load cell) aligned to the mechanical load path
• Sampling suitable for both steady-state holds and transient events
• Calibration/verification workflow support to maintain measurement confidence over time

D) Controls, DAQ, and software automation (dry side)
• PC-based operator interface with guided test execution
• Recipe-driven testing (select caliper type/model → run standardized routine)
• Real-time graphs for pressure and force with live pass/fail cues
• Automated data logging and report generation (PDF/print/export formats as required)
• Expandable architecture for additional fixtures, sensors, and future test routines

Fixture strategy (scalable to many caliper models)
Brake calipers vary significantly in mounting, piston arrangement, pad interfaces, and force paths. The bench is built around a fixture-driven approach so new models can be added without redesigning the core machine:
• Fixtures locate the caliper repeatably and ensure correct alignment
• Force measurement is designed to remain coaxial with the piston reaction path
• Quick changeover supports higher throughput in overhaul environments
• Fixture kits can be developed for multiple OEM calipers used across metro, mainline, and light-rail fleets

Typical test workflow (operator view)
1. Select the test recipe (caliper type/model, pressure levels, hold duration, acceptance criteria).
2. Mount the caliper onto the dedicated fixture and secure it.
3. Connect hydraulic interfaces using repeatable quick connections.
4. Run the bleed/fill routine to remove air.
5. Execute the automated test sequence, which may include:
   ▹ Pre-pressurization checks and safety validation
   ▹ Pressure ramp and stabilization
   ▹ Timed pressure hold (leak/decay evaluation)
   ▹ Force capture at defined pressure points
   ▹ Apply/release transitions and repeatability cycles
6. Generate and save the report with all key values, graphs, operator details, date/time stamps, and pass/fail outcome.

What the reports typically include
• Caliper identification fields (serial number, model, depot/job, operator)
• Test recipe parameters (pressure steps, hold times, thresholds)
• Recorded pressure and force curves
• Summary table of key results (max pressure, force at setpoints, decay rate, pass/fail)
• Notes/observations section (e.g., visible leakage, unusual noise, fixture notes)
• Optional sign-off fields and digital archiving formats (depending on QA workflow)
This transforms brake testing from a “feel-based” activity into an auditable acceptance process.

Safety and risk-controlled operation
High-pressure hydraulic testing is inherently hazardous if not engineered correctly. The bench is designed around workshop safety expectations:
• Interlocked guarding logic to prevent unsafe pressurization when access doors are open
• Emergency stop and controlled pressure dump/depressurization strategy
• Over-pressure protection using properly rated components and pressure limiting devices
• Clear separation of wet and dry zones to protect electronics and operators
• Hose and cable management to reduce snag hazards and improve housekeeping
• Drip containment and clean routing to keep the operator zone safe and tidy

Benefits in real maintenance environments
Consistency and repeatability
• Standardized test recipes reduce operator variability
• Bleeding support and measured pressure/force reduce false passes and false fails

Faster troubleshooting
• Force and pressure curves reveal the nature of faults (leak vs binding vs air vs assembly issue)
• Repeatable cycling can reproduce intermittent problems

Better lifecycle outcomes
• Fewer in-service returns and fewer “repaired twice” scenarios
• Stronger QA documentation for audits and warranty discussions
• Improved confidence when returning safety-critical components to service

Options and upgrades (common enhancements)
• Multi-channel pressure measurement for multi-circuit calipers
• Displacement/stroke sensing to evaluate piston travel and return behavior
• Temperature monitoring (useful for long holds or repeated cycling)
• Barcode/QR scanning for automatic job creation and report naming
• Database storage with search/filter by serial number, date, operator, pass/fail
• Remote diagnostics/support package for software updates and troubleshooting
• Expanded pressure/force ranges for special calipers or future fleet changes
• Custom report templates aligned to your internal QA forms

Technical specifications (typical configuration — configurable)




Parameter

Typical Capability




Brake types


      Hydraulically applied and spring-applied / hydraulically released calipers





Max test pressure

Up to 160 bar class




Controlled flow


      Up to 4 LPM class (for controlled apply/hold/release)





Force measurement


      90 kN class load measurement chain





Hydraulics


      Integrated HPU with filtration, safety relief, controlled depressurization





Automation


      Recipe-based PC control with data logging and report generation





Expandability


      Fixture-driven model coverage; additional sensors and routines as required





Footprint


      Approx. 2518 × 1267 × 1500 mm class





Electrical supply


      Configurable to local supply (typical industrial 3-phase configurations)




Deliverables (typical scope)
• Complete test bench system (mechanical frame + guarding + hydraulics + controls + software)
• Fixture kit(s) for caliper models in scope, with provision for future expansion
• Operator SOP, maintenance manual, and recommended spares list
• Commissioning support and operator training
• FAT/SAT-style test workflow and report format aligned to your QA expectations
