Weapon Loading Trolley

About

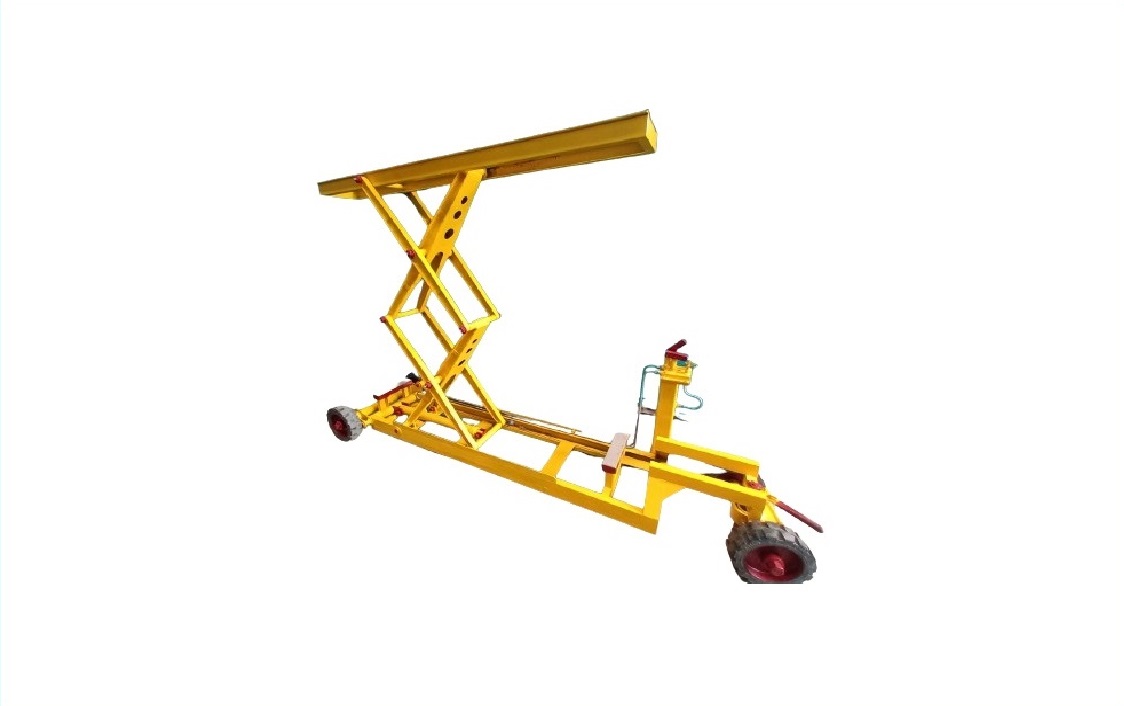

The Neometrix Weapon Loading Trolley is a rugged, hydraulically operated scissor lift designed to simplify and accelerate the handling of heavy munitions for military aircraft. Its true vertical-lift mechanism, powered by a dual-position hand pump and four single-acting hydraulic cylinders with integrated relief and flow-control valves, ensures precise, drift-free elevation of up to 750 kg. With a low 600 mm stowed profile, solid-rubber wheels, and a compact footprint, it maneuvers easily in hangars and confined airbase environments. Built from high-strength steel and requiring minimal preventive maintenance, the trolley reduces crew fatigue, enhances safety, and maintains operational readiness in both garrison and field deployments.
No Image

Image Gallery

Technical Details

Parameter Specification
Lifting Capacity 750 kgf (1,653 lbf)
Lift Height (Min–Max) 310 mm–1,970 mm (extendable to 2,340 mm)
Overall Dimensions (L×W×H) 3,080 mm × 980 mm × 600 mm
Base Length 2,650 mm
Wheel Track Front: 570 mm; Rear: 830–1,420 mm
Ground Clearance 90 mm
Hydraulic Fluid AMZ-10, purity class 9
Hydraulic Reservoir Capacity 2.9 L
Pump & Valve HP01 hand pump; 629600B valve
Wheel Type Solid rubber, 300 × 70 mm
Net Weight 300 kg
1. Aircraft Armament Loading: Precisely elevates bombs and missiles to the correct pylon interface height, eliminating manual hoisting and reducing crew fatigue.
2. Ordnance Maintenance & Servicing: Locks securely at any height for inspections, fuze replacements, and sighting checks; quick-release fittings enable rapid testing.
3. Ammunition Depot Handling: Transfers heavy rounds between storage racks and transport dollies; operates in confined aisles due to compact design.
4. Field & Expeditionary Operations: Manual backup pump ensures function without external power; sealed bearings and durable finish withstand harsh environments.




Key Features

  • True Vertical Lift: Stacked scissors lift straight up with no drift for accurate positioning.
  • Heavy-Duty Hydraulic Actuation: Four cylinders with check and flow valves ensure safe, precise lifts.
  • Dual-Position Hand Pump: Manual lift/descent option available when power is lost.
  • Robust Mobility & Stability: Solid wheels (300×70 mm) and 90 mm clearance suit tight areas.
  • Compact Footprint & Low Profile: 600 mm stow height; 2,650×980 mm base fits service bays.
  • Minimal Preventive Maintenance: Simple hydraulics and grease points cut service time.

Media Gallery

Video Gallery

Download Gallery

×

Enquire Now

and we will get back to you.

Details


Introduction
The Neometrix Defence Limited Weapon Loading Trolley is engineered to streamline the handling of heavy armament stores—such as bombs, missiles, and training rounds—by ground crews of modern air forces. Its single-stage, dual-scissor lift mechanism provides true vertical elevation from a near-ground profile, allowing ordnance to be engaged with aircraft hardpoints without the need for ramps or shims. Built entirely from plate-sectioned, high-strength steel and equipped with heavy-duty bushes, flow controls, relief valves and a dual-position hand pump, this trolley ensures smooth, reliable operation even under arduous field conditions. Minimal preventive maintenance requirements and a compact footprint make it a cost-effective, mission-ready solution for the Indian Air Force and allied defense operators.

Key Features
▹ True Vertical Lift: The stacked scissors operate in perfect vertical alignment, eliminating horizontal drift and ensuring precise positioning.
▹ Heavy-Duty Hydraulic Actuation: Four single-acting hydraulic cylinders with pilot-operated check valves and flow-control valves for safe, precise lift.
▹ Dual-Position Hand Pump: Allows manual lift and descent as a backup when auxiliary power is unavailable.
▹ Robust Mobility & Stability: Four solid-rubber wheels (300 × 70 mm) on heavy-duty bushes with 90 mm ground clearance for confined spaces.
▹ Compact Footprint & Low Profile: Stows at 600 mm height; base dimensions of 2,650 × 980 mm fit standard service bays.
▹ Minimal Preventive Maintenance: Simplified hydraulics and accessible grease points reduce upkeep and downtime.

Technical Specification
Parameter Specification
Lifting Capacity 750 kgf (1,653 lbf)
Lift Height (Min–Max) 310 mm–1,970 mm (extendable to 2,340 mm)
Overall Dimensions (L×W×H) 3,080 mm × 980 mm × 600 mm
Base Length 2,650 mm
Wheel Track Front: 570 mm; Rear: 830–1,420 mm
Ground Clearance 90 mm
Hydraulic Fluid AMZ-10, purity class 9
Hydraulic Reservoir Capacity 2.9 L
Pump & Valve HP01 hand pump; 629600B valve
Wheel Type Solid rubber, 300 × 70 mm
Net Weight 300 kg
Applications 1. Aircraft Armament Loading: Precisely elevates bombs and missiles to the correct pylon interface height, eliminating manual hoisting and reducing crew fatigue. 2. Ordnance Maintenance & Servicing: Locks securely at any height for inspections, fuze replacements, and sighting checks; quick-release fittings enable rapid testing. 3. Ammunition Depot Handling: Transfers heavy rounds between storage racks and transport dollies; operates in confined aisles due to compact design. 4. Field & Expeditionary Operations: Manual backup pump ensures function without external power; sealed bearings and durable finish withstand harsh environments. Conclusion The Neometrix Weapon Loading Trolley offers defense units a versatile, dependable platform for all heavy-duty ordnance handling tasks. Its combination of true vertical lift, robust hydraulic actuation, and ergonomic design dramatically improves loading speed, crew safety, and operational readiness. Backed by minimal maintenance demands and built to ISO-compliant standards, this trolley is an indispensable asset in any modern airbase or field deployment scenario.
