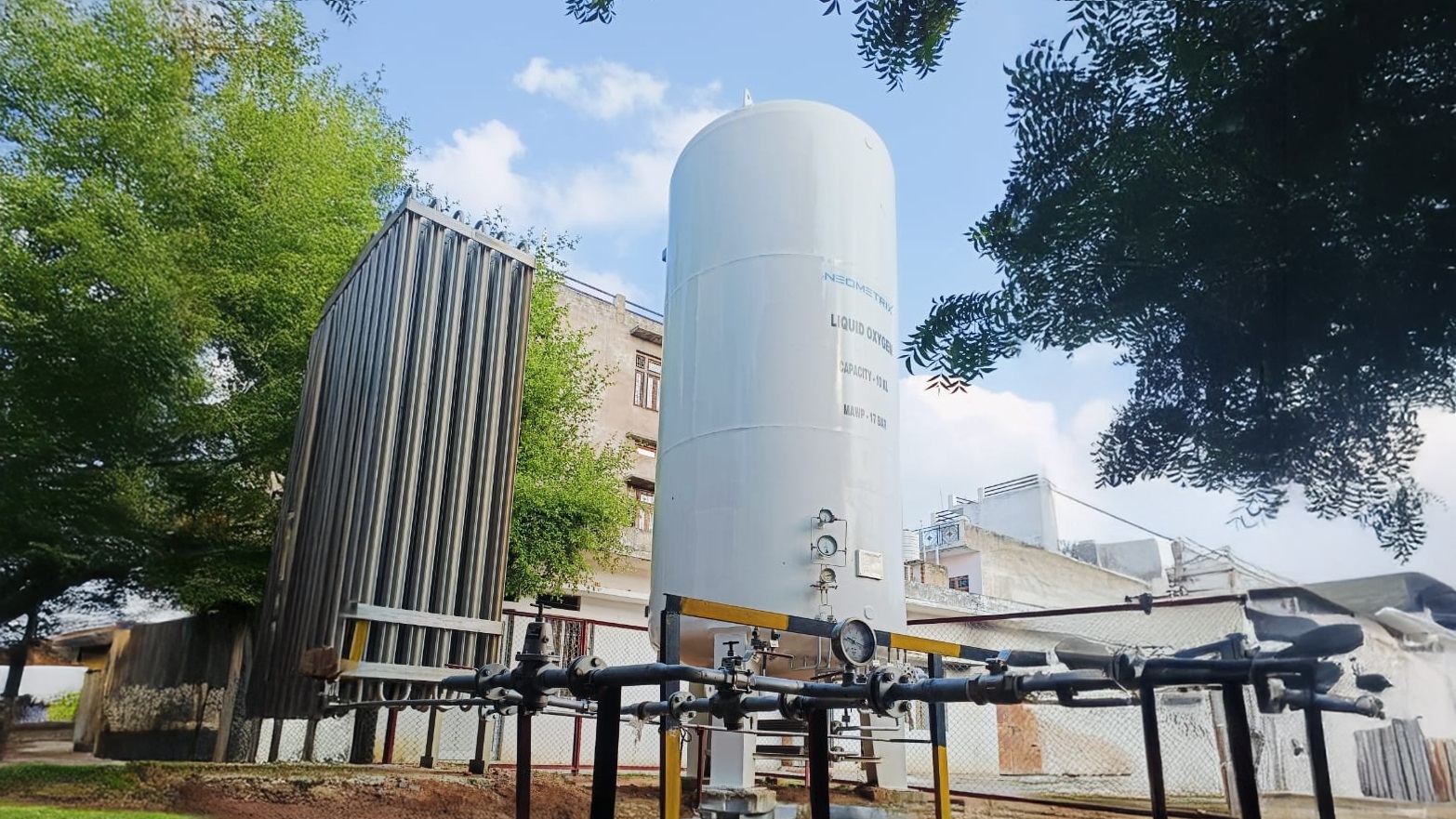

Cryogenic Liquid Medical Oxygen Vertical Storage Tank

English cryogenic oxygen storage tank, liquid oxygen tank, 20 000 L LOX tank, vacuum-insulated oxygen vessel, medical LOX storage, industrial oxygen tank, semiconductor LOX supply, high-purity oxygen tank, low boil-off cryotank, stainless-steel LOX container, vertical oxygen storage, pressure-building coil tank, dual relief valve tank, burst disc oxygen vessel, perlite-insulated oxygen tank, PESO-approved LOX storage, ASME VIII-1 oxygen tank, EN 13458 LOX vessel, turnkey oxygen storage solution, Neometrix cryogenic tank German (Deutsch) kryogener sauerstoffspeichertank, flüssigsauerstoffbehälter, 20 000 L LOX-Tank, vakuumisolierter sauerstoffbehälter, medizinischer LOX-Speichertank, industrieller sauerstofftank, halbleiter LOX-Versorgung, hochreiner sauerstoffspeicher, niedrigster dampfverlust, edelstahl LOX-Behälter, vertikaler sauerstofftank, druckaufbauspule-Tank, doppelsicherheitsventil-Tank, berstscheibentank, perlitedämmungstank, PESO- zertifizierter LOX-Behälter, ASME VIII-1 sauerstofftank, EN 13458 sauerstoffbehälter, schlüsselfertige LOX-Speicherlösung, Neometrix kryotank French (Français) cuve cryogénique oxygène, réservoir oxygène liquide, cuve LOX 20 000 L, récipient oxygène isolé sous vide, stockage médical LOX, réservoir oxygène industriel, alimentation LOX semi- conducteur, oxygène haute pureté, cryotank faible dégagement, cuve inox LOX, cuve verticale oxygène, bobine pressurisation LOX, cuve double soupape de sûreté, disque éclateur oxygène, isolation perlite, cuve LOX homologuée PESO, cuve ASME VIII-1, cuve EN 13458, solution stockage oxygène clé en main, cuve cryogénique Neometrix Italiano serbatoio ossigeno criogenico, cisterna ossigeno liquido, serbatoio LOX 20 000 L, vaso ossigeno isolato a vuoto, stoccaggio medicale LOX, serbatoio ossigeno industriale, fornitura LOX semiconduttori, ossigeno alta purezza, criotank a bassa evaporazione, contenitore inox LOX, serbatoio verticale ossigeno, bobina pressurizzatrice LOX, valvole di sicurezza doppie, disco di rottura, isolamento perlite, serbatoio LOX certificato PESO, cisterna ASME VIII-1, cisterna EN 13458, soluzione integrata stoccaggio LOX, serbatoio criogenico Neometrix Español tanque criogénico oxígeno, depósito oxígeno líquido, tanque LOX 20 000 L, recipiente oxígeno aislado al vacío, almacenamiento médico LOX, tanque industrial de oxígeno, suministro LOX semiconductores, oxígeno alta pureza, criotanque baja evaporación, contenedor inox LOX, tanque vertical oxígeno, bobina presurizadora LOX, válvulas de seguridad dobles, disco de ruptura, aislamiento perlita, tanque LOX aprobado PESO, tanque ASME VIII-1, tanque EN 13458, solución turnkey almacenamiento LOX, tanque criogénico Neometrix Russian (Русский) криогенный резервуар кислорода, бак жидкого кислорода, резервуар LOX 20 000 л, вакуумно-изолированный кислородный сосуд, медицинское хранение LOX, промышленный кислородный бак, подача LOX для полупроводников, кислород высокой чистоты, крио-бак с низким испарением, нержавеющий LOX-контейнер, вертикальный кислородный бак, катушка создания давления, двойные предохранительные клапаны, взрывной клапан, изоляция перлит, резервуар LOX с сертификатом PESO, бак по ASME VIII-1, сосуд по EN 13458, turnkey решение LOX- хранения, криогенный бак Neometrix Portuguese (Português) tanque criogênico de oxigênio, reservatório de oxigênio líquido, tanque LOX 20 000 L, vaso isolado a vácuo, armazenamento médico LOX, tanque industrial de oxigênio, fornecimento LOX semicondutor, oxigênio alta pureza, criotanque baixa perda, contêiner inox LOX, tanque vertical de oxigênio, bobina pressurizadora, válvulas de segurança duplas, disco de ruptura, isolamento perlite, tanque LOX aprovado PESO, tanque ASME VIII-1, tanque EN 13458, solução turnkey LOX, tanque criogênico Neometrix Chinese (Simplified) 低温液氧储罐, 液氧罐 20 000 升, 真空绝缘氧气容器, 医用 LOX 储存, 工业氧气罐, 半导体 LOX 供应, 高纯度氧气罐, 低蒸发率, 不锈钢 LOX 罐, 立式氧气罐, 加压线圈罐, 双安全阀, 爆破片装置, 珀莱特保温, PESO 认证储罐, ASME VIII-1 标准, EN 13458 标准, 一站式 LOX 解决方案, Neometrix 低温罐 Japanese (日本語) 液体酸素貯蔵タンク, 20 000L LOX タンク, 真空断熱酸素容器, 医療用 LOX 保管, 工業用酸素タンク, 半導体用 LOX 供給, 高純度酸素タンク, 低蒸発クリオタンク, ステンレス LOX 容器, 縦型酸素タンク, 加圧コイルタンク, 二重安全弁, ブラストディスク, パーライト断熱 , PESO 認証タンク, ASME VIII-1 準拠, EN 13458 準拠, ターンキーLOX ソリューション, Neometrix クリオタンク Korean (한국어) 극저온 액체산소 저장탱크, 20 000L LOX 탱크, 진공단열 산소용기, 의료용 LOX 저장, 산업용 산소탱크, 반도체 LOX 공급, 고순도 산소탱크, 저증발 크리오탱크, 스테인리스 LOX 용기, 수직형 산소탱크, 압력생성 코일탱크, 이중 안전밸브, 파열디스크, 펄라이트 단열, PESO 인증탱크, ASME VIII-1 탱크, EN 13458 탱크, 턴키 LOX 솔루션, Neometrix 크리오탱크 (العᘭᗖᖁة) Arabic طبي ,خزان أكسجين LOX خزان أكسجين مبرد ,خزان أكسجين سائل 20 000 لتر ,وعاء أكسجين معزول تفريغ ,تخزين من الفولاذ ,خزان أكسجين LOX لأشباه الموصلات ,أكسجين عالي النقاء ,خزان تبريد منخفض الفقد ,وعاء LOX صناعي ,إمداد ASME خزان ,PESO معتمد LOX عمودي ,لفائف بناء الضغط ,صمامات أمان مزدوجة ,قرص انفجار ,عزل برلايت ,خزان Neometrix خزان كريوجيني ,LOX لتخزين turnkey حل 13458, EN خزان -1,VIII Hindi (िहȽी) Ţायोजेिनक ऑƛीजन ːोरेज टœक, तरल ऑƛीजन टœक 20 000 ली, वैƐूम इंसुलेटेड ऑƛीजन कं टेनर, मेिडकल LOX भंडारण, औȨोिगक ऑƛीजन टœक, सेमीकं डƃर LOX आपूितŊ, उDŽ शुȠता ऑƛीजन टœक, कम बॉयल-ऑफ Ţायोटœक, ːेनलेस ːील LOX कं टेनर, विटŊकल ऑƛीजन टœक, Ůेशर-िबİʒंग कॉइल, डुअल įरलीफ वॉʢ, बरː िडˋ, पलाŊइट इɌुलेशन, PESO अनुमोिदत LOX टœक, ASME VIII-1 मानक, EN 13458 अनुपालन, टनŊकी LOX समाधान, Neometrix Ţायोटœक Turkish (Türkçe) kriyogenik oksijen tankı, sıvı oksijen deposu 20 000 L, vakum yalıtımlı oksijen kabı, medikal LOX depolama, endüstriyel oksijen tankı, yarı iletken LOX beslemesi, yüksek saflık oksijen tankı, düşük buharlaşma kriyo tank, paslanmaz çelik LOX kabı, dikey oksijen tankı, basınç oluşturma bobini, çift emniyet valfi, patlama diski, perlit izolasyon, PESO onaylı LOX tank, ASME VIII-1 uyumlu, EN 13458 uyumlu, anahtar teslim LOX çözümü, Neometrix kriyo tank

Image Gallery

Technical Details

Specifications

Nominal Capacity: 10 000 L or 20 000 L ± 5 %;
Inner Vessel Material: Austenitic SS-304 (X5 CrNi 18-10)
Outer Shell Material: Carbon Steel S355J2, epoxy-coated for corrosion resistance
Design Codes: EN 13458-2:2002 + Annex C; ASME VIII-1; PED 2014/68/EU
Working Pressure (Inner): Up to 17 bar gauge
Design Temperatures: Inner: –196 °C to +40 °C; Outer: –20 °C to +55 °C
Boil-off Rate (NER): ≤ 0.45 %/day (perlite insulation under vacuum)
Annular Vacuum: ≤ 100 μm Hg (warm)
Insulation Medium: Perlite powder; optional upgrade to 3MTM Glass Bubbles for up to 35%
lower boil-off
Relief Devices: Dual spring-loaded relief valves, dual burst discs, manual selector valve

Applications

• Medical & Hospital Oxygen: Central bulk supply for multi-ward medical-gas distribution systems, supporting critical respiratory care and surgical procedures.
• Semiconductor Manufacturing: High-purity LOX for plasma etching, chemical-vapor deposition, and oxidation processes, where contaminants can compromise wafer quality.
• Industrial & Metal Fabrication: Oxy-fuel cutting, welding, and heat treatment applications demanding consistent pressure and flow.
• Aerospace & Research: On-site LOX supply for propulsion tests, material science experiments, and research platforms requiring sub-atmospheric boil-off control.

FAQ

Details

Introduction
Cryogenic liquid oxygen (LOX) storage tanks are critical infrastructure for industries ranging from healthcare to semiconductor fabrication, where uninterrupted, high-purity oxygen supply is essential. Unlike conventional pressure vessels, these tanks maintain inner temperatures as low as –183 °C through a double-walled, vacuum-insulated design, minimizing heat ingress and boil-off losses. The CRYO-V-Oxygen employs a stainless-steel inner vessel housed within a carbon-steel outer shell, with perlite-filled annulus under high vacuum—a configuration proven reliable in industrial and medical settings. Modern tanks like these not only ensure safety and regulatory compliance but also optimize operational costs by limiting daily losses to under 0.45% of stored volume.

Applications
• Medical & Hospital Oxygen: Central bulk supply for multi-ward medical-gas distribution systems, supporting critical respiratory care and surgical procedures.
• Semiconductor Manufacturing: High-purity LOX for plasma etching, chemical-vapor deposition, and oxidation processes, where contaminants can compromise wafer quality.
• Industrial & Metal Fabrication: Oxy-fuel cutting, welding, and heat treatment applications demanding consistent pressure and flow.
• Aerospace & Research: On-site LOX supply for propulsion tests, material science experiments, and research platforms requiring sub-atmospheric boil-off control.

Technical Specification
Nominal Capacity: 10 000 L or 20 000 L ± 5 %;
Inner Vessel Material: Austenitic SS-304 (X5 CrNi 18-10)
Outer Shell Material: Carbon Steel S355J2, epoxy-coated for corrosion resistance
Design Codes: EN 13458-2:2002 + Annex C; ASME VIII-1; PED 2014/68/EU
Working Pressure (Inner): Up to 17 bar gauge
Design Temperatures: Inner: –196 °C to +40 °C; Outer: –20 °C to +55 °C
Boil-off Rate (NER): ≤ 0.45 %/day (perlite insulation under vacuum)
Annular Vacuum: ≤ 100 μm Hg (warm)
Insulation Medium: Perlite powder; optional upgrade to 3MTM Glass Bubbles for up to 35%
lower boil-off
Relief Devices: Dual spring-loaded relief valves, dual burst discs, manual selector valve

Key Features
• Vacuum-Insulated Double Wall: High-vacuum annulus packed with perlite ensures minimal heat leakage and consistent thermal performance.
• Pressure-Building Coil: Star-finned coil immersed in liquid for rapid vapor generation, enabling stable delivery pressure without external vaporizers.
• Advanced Safety Suite: Two independent relief valves and burst discs protect against overpressure; full-bore manual isolation cock simplifies maintenance.
• Integrated Sampling Port: Corrosion-resistant port for liquid sampling and purity verification, critical in semiconductor and medical applications.
• Portable Vacuum Monitoring: Thermocouple sensor and vacuum gauge with isolation valve allow on-line annulus integrity checks.

Operating Parameters
• Filling: Top and bottom fill connections accommodate differential-pressure and pump-assisted filling, reducing transfer time.
• Withdrawal: Dedicated liquid outlet with check valve; gas draw-off via pressure-building coil with integrated filter and regulator ensures contaminant-free vapor delivery.
• Pressurization Range: User-adjustable from 2 bar up to design limit of 17 bar, supporting varied downstream process requirements.
• Evacuation & Purge: Annulus evacuation port with isolation valve for initial pump-down; optional dry-gas purge maintains insulation dryness and performance.

Thermal Insulation & Performance
Perlite-filled, vacuum-insulated annulus provides a cost-effective barrier against ambient heat, delivering boil-off rates below 0.45%/day under steady-state conditions. Emerging insulation media—such as engineered glass bubbles—can further reduce heat ingress by up
to 35%, extending hold times and lowering operational costs. Periodic thermal cycling tests validate insulation integrity, ensuring no settlement or compaction that could degrade performance over years of service.

Safety & Pressure Control
Built to PESO and international pressure-vessel directives, the tank includes:
• Dual Redundancy Relief: Two spring-loaded safety valves sized to API standards, plus backup burst discs.
• Selector Valve: Manual full-bore valve to isolate relief network for safe maintenance without tank depressurization.
• Leak-Tight Piping: Stainless-steel long-stem globe valves and orbital-welded connections minimize leak risk.
• Third-Party Certification: Factory acceptance and periodic inspection by CCOE/PESO-approved agencies guarantee compliance.

Instrumentation & Connections
• Level Measurement: Differential-pressure transmitter with three-valve manifold and liquid level gauge for continuous monitoring.
• Pressure Indication: Local Bourdon-tube gauge plus digital transducer option for SCADA integration.
• Vacuum Sensor: Thermocouple-type vacuum gauge with isolation and calibration ports.
• Process Integration: All connections flanged per EN 1092; P&ID and 3-D CAD models supplied for site coordination.

Ancillaries & Site Requirements
• Foundation: Concrete pad with anchor bolts, footprint template provided upon order.
• Utilities: 3-phase power for vacuum pump; dry nitrogen purge supply for annulus; drain for condensate collection.
• Documentation: Comprehensive manuals, P&ID, FAT reports, and certificates delivered in both digital and hard-copy formats.

Conclusion
The CRYO-V-Oxygen tank represents a turnkey solution for high-capacity LOX storage, combining industry-leading insulation, advanced safety features, and versatile process interfaces. Whether for critical medical support, precision semiconductor processes, or demanding industrial applications, this tank ensures reliable, low-loss oxygen supply while adhering to the strictest global standards. For turnkey installation and lifecycle support, Neometrix Engineering delivers expert project management and after-sales service.
