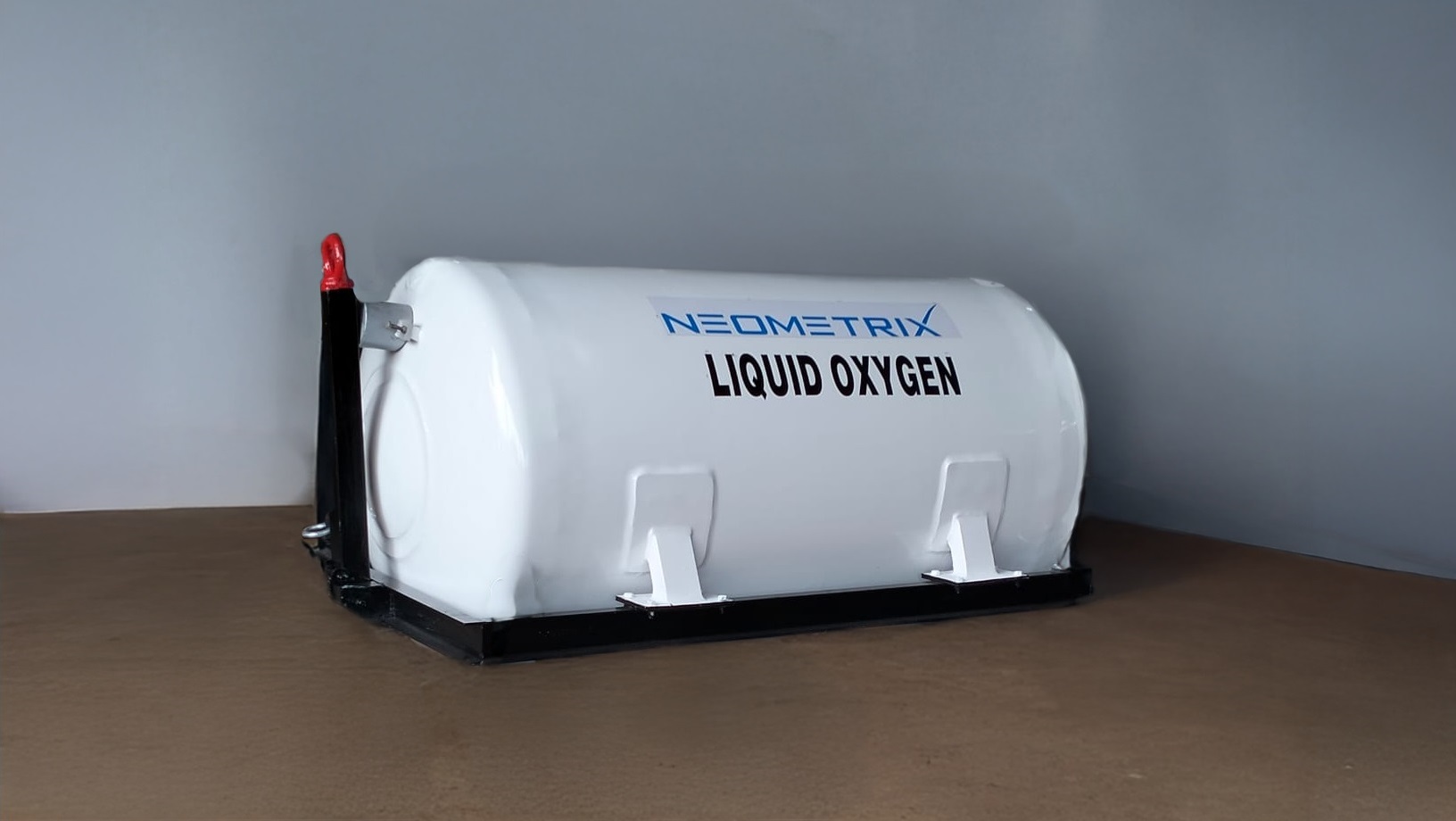

Liquid Oxygen Dispenser 800 Ltr along With Towable Trolley

About

CRYO-800L-V-Oxygen, Cryogenic vertical storage tank is used to store and use liquid Oxygen. Cryogenic tanks are used to store natural gases such as oxygen, argon, nitrogen, helium, hydrogen and other materials. Tanks can store the materials at the correct temperature and pressure for transportation.

Product Specifications:
  • Product: Cryogenic Vertical Storage Tank
  • Capacity (Net) – 800 Litres (+/-3%)
  • Outer Vessel and supports installions – Austenitic Stainless Steel (SS-304)
  • Pipe Work – Stainless Steel pipe work, detachable assembly through flanged or union joints and pressure building coil to be star fines aluminum constructions
  • Valve (Intel, outlet) – Cryogenic valves in liquid lines extended spondles types of bestobell valves
  • Pressure and Full try Cock – 20 NB/ 15 NB Fully extended spindle type
  • Safety Relief valve – 02 Nos with divertor ball valves
  • Bursting Disc – 01 Nos safety bursting disc for inner vessels
  • Quantity: 1No
  • Additional Fittings – Indicators, Pressure Gauge, Pressure Hose and cylinder filling Pump, Vacuum pump
  • Installed Location: Combined District Hospital Narai Bandh,Sadar, Mau, Uttar Pradesh, 215101
  • Image Gallery

    Technical Details

    • 800L capacity vacuum + Perlite or Vacuum +super insulated vertical storage tank designed(Empty LMO Tank)
    • Design and working parameters – 800 ltr
    • Capacity (Net) – 800 Litres (+-3%)
    • Outer Vessel and supports installions – Austenitic Stainless Steel (SS-304)
    • Pipe Work – Stainless Steel pipe work, detachable assembly through flanged or union joints and pressure building coil to be star fines aluminum constructions
    • Valve (Intel, outlet) – Cryogenic valves in liquid lines extended spondles types of bestobell valves
    • Pressure and Full try Cock – 20 NB/ 15 NB Fully extended spindle type
    • Safety Relief valve – 02 Nos with divertor ball valves
    • Bursting Disc – 01 Nos safety bursting disc for inner vessels
    • Additional Fittings – Indicators, Pressure Gauge, Pressure Hose and cylinder filling Pump, Vacuum pump
    CRYO-800L-V-Oxygen, Cryogenic vertical storage tank is used to store and use liquid Oxygen. Cryogenic tanks are used to store natural gases such as oxygen, argon, nitrogen, helium, hydrogen and other materials.

    Key Features

    • Cryogenic Vertical Storage Tank
    • Capacity: 800L (+/-3%)
    • It is GPS enable.
    • Pressure and Full try Cock
    • Pressure and Full try Cock
    • Bursting Disc
    • NER % / Day for Liquid Oxygen application: ≤0.45% / Day
    • Annulus Vacuum (Warm): ≤100Microns.

    Download Gallery

    Datasheet Product Catalog

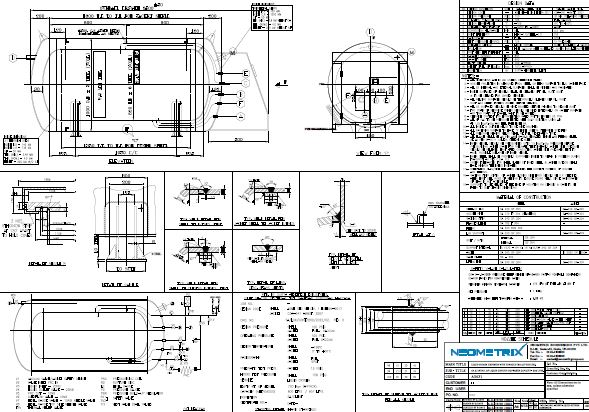

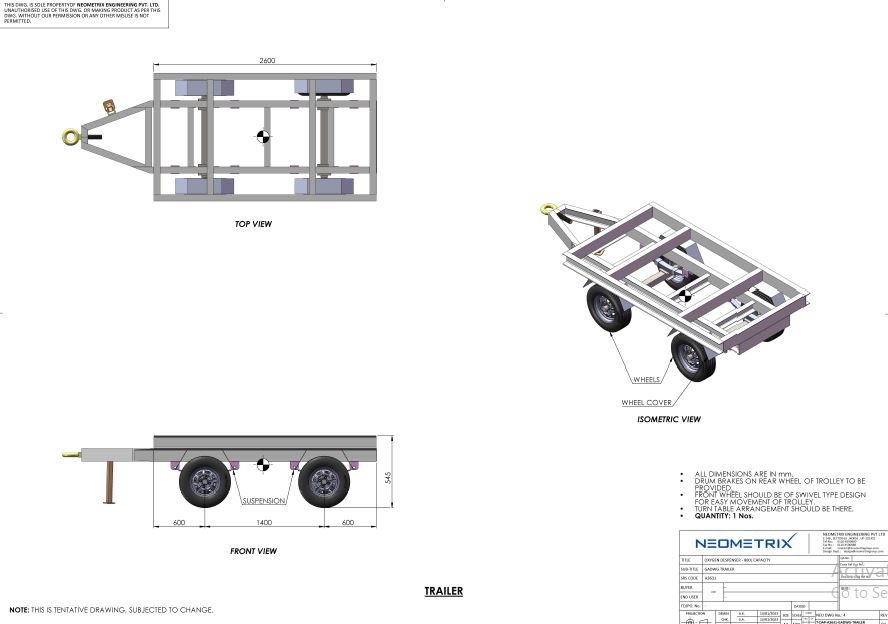

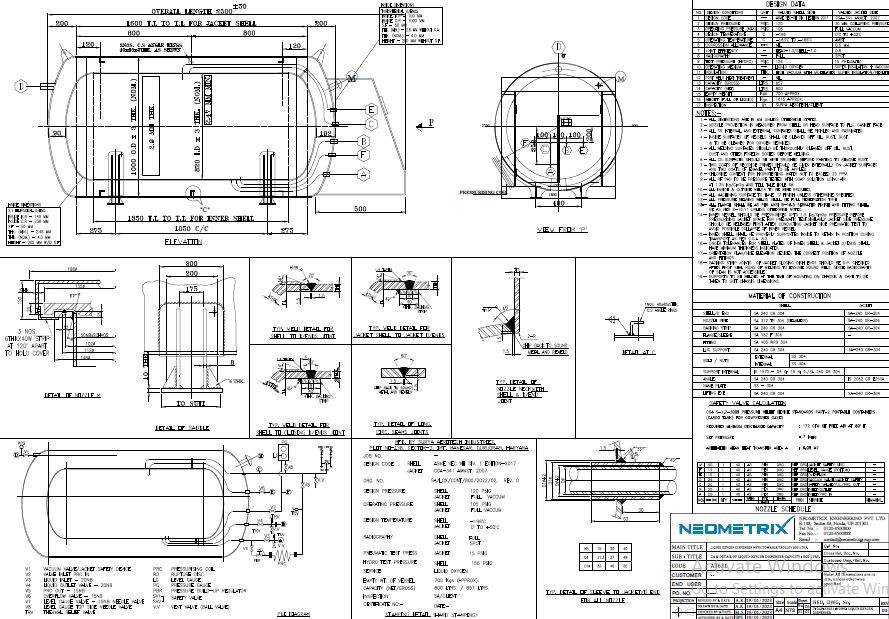

    Engineering Design Documents
